TPD-432F-H 4.3-inch Touch HMI Device with 2 x RS-485 and RTC
4.3-inch TFT touch HMI with 480 x 272 resolution, two RS-485 ports, real-time clock and buzzer, designed for wall-mounted control panels.
- 4.3-inch TFT touch screen, 480 x 272 resolution, 65535 colours
- Two RS-485 ports including Self-Tuner
- Modbus TCP/RTU and DCON protocol support
- Real-time clock (RTC) and buzzer
- Free HMIWorks tool with Ladder Designer and C language support
- User-defined third-party protocol support via C language
228,00 € pro Stück
| 1–9 Stück | 228,00 € | |
|---|---|---|
| 10–30 Stück | 221,00 € | −3 % |
| ab 31 Stück | 217,00 € | −5 % |
Produktinformationen "TPD-432F-H 4.3-inch Touch HMI Device with 2 x RS-485 and RTC"

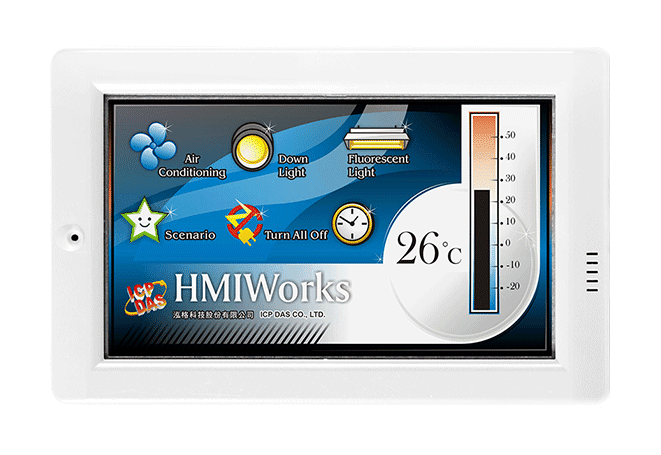

TPD-432F-H CR is a compact touch HMI built around a 4.3-inch TFT colour touch screen with 480 x 272 resolution and 65535 colours. It is designed to fit a standard electrical wall-mount outlet, making it a practical choice for replacing mechanical switches with intelligent touch-based control.

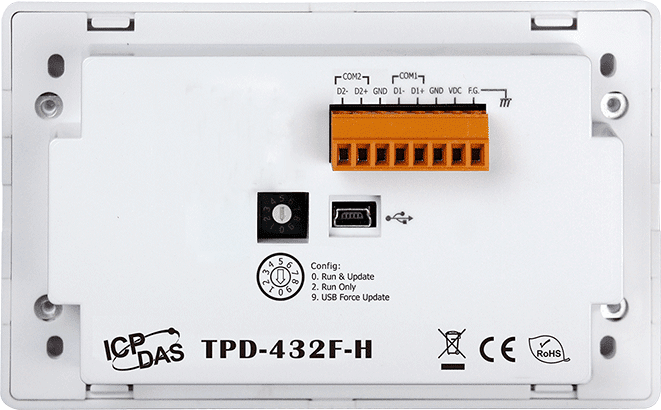

Two RS-485 ports, including the Self-Tuner function, let the unit communicate with field devices over Modbus TCP/RTU and DCON. The RTC and buzzer add time-stamping and audible feedback, while a rotary switch and reset button support local interaction. Firmware can be updated through the USB 1.1 Mini-B client port.
Programming is handled with the free HMIWorks development tool, which offers Ladder Designer for PLC-oriented users and a C language environment for those who prefer text-based development. User-defined third-party protocols can also be implemented in C. The unit runs from a +12 ~ 48 VDC terminal block supply and is rated for an operating temperature of -20 ~ +50 °C.
Applications
- Wall-mounted control panels replacing mechanical switches
- Intelligent control pads for RS-485 field device networks
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-485, USB |
| Protocol: | DCON, Modbus RTU, Modbus TCP |
| Ports: | 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | Wall-mount |
Technische Daten
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| COM Ports | |
| Ports | 2 x RS-485 (including Self-Tuner) |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 140 mm x 87 mm x 41 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
