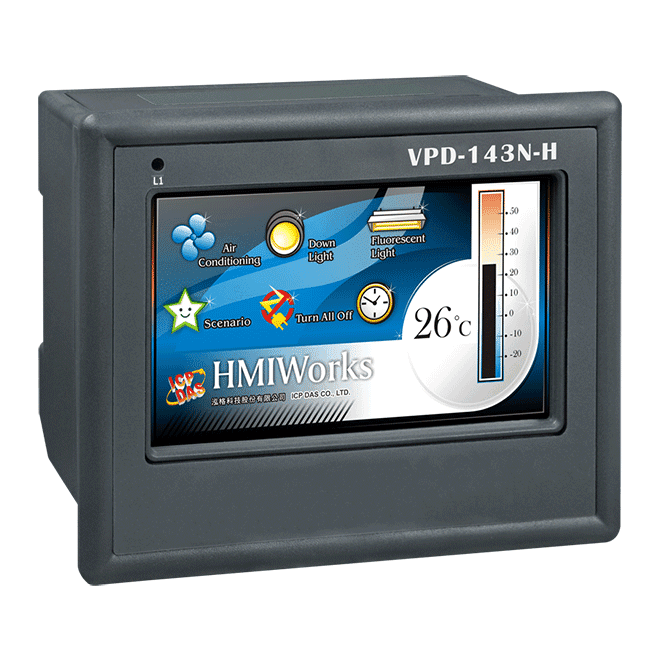

VPD-143N-H 4.3-inch Touch HMI, 2 x RS-232/RS-485 and PoE Ethernet
4.3-inch colour touch HMI with two RS-232/RS-485 serial ports, Ethernet with PoE, a real-time clock and a USB firmware download port. IP65 front panel.

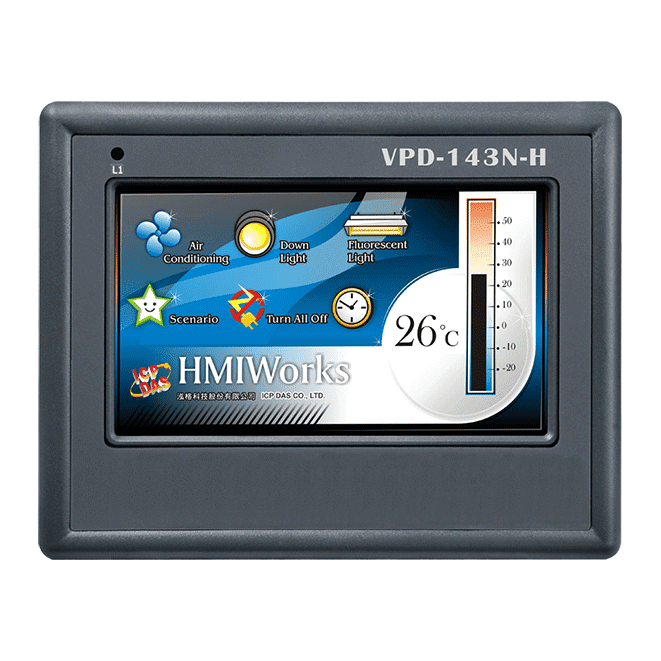

- 4.3-inch high-resolution colour TFT touch screen, 480 x 272 pixels, 65535 colours

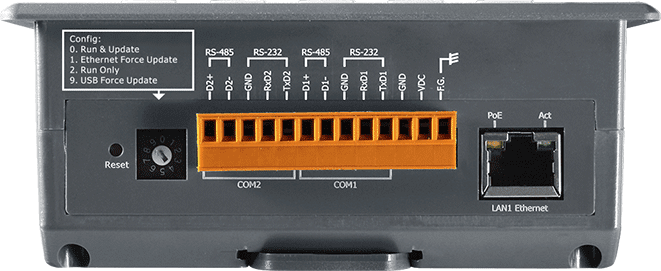

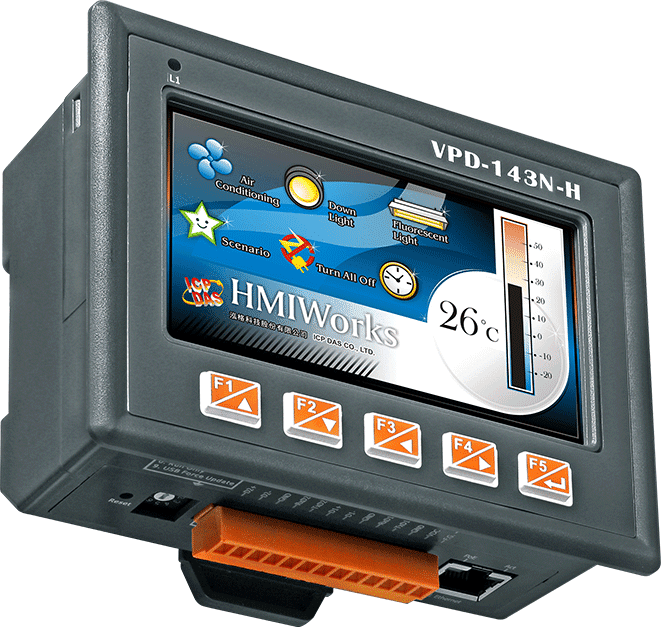

- Two RS-232/RS-485 serial ports, including Self-Tuner
- RJ-45 10/100 Base-TX Ethernet port with PoE (IEEE 802.3af, Class 1)
- Real-time clock (RTC) on board

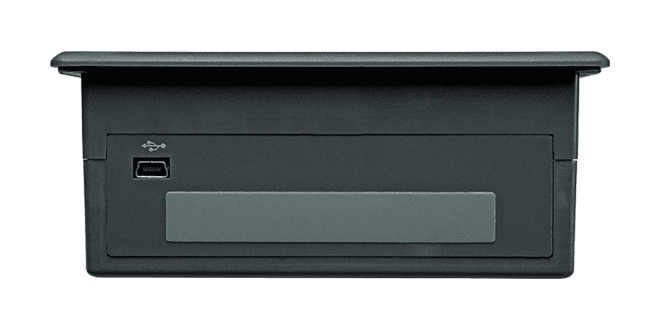

- USB 1.1 client port (Mini-B) for firmware updates only
- IP65 front panel, DIN-rail or panel mounting
307,00 € pro Stück
| 1–9 Stück | 307,00 € | |
|---|---|---|
| 10–30 Stück | 298,00 € | −3 % |
| ab 31 Stück | 291,00 € | −5 % |
Produktinformationen "VPD-143N-H 4.3-inch Touch HMI, 2 x RS-232/RS-485 and PoE Ethernet"
VPD-143N-H CR is a 4.3-inch colour touch HMI from the VPD series, combining a 480 x 272 TFT display with two configurable serial ports and a 10/100 Base-TX Ethernet connection. Ethernet is powered over PoE (IEEE 802.3af), or the unit can be supplied from a +12 ~ 48 VDC terminal block.
The device suits operator interfaces where you need to monitor and control equipment at remote locations over serial or Ethernet links, and where firmware can be updated from a central computer through the USB client port. The built-in real-time clock and non-volatile storage support time-stamped operation and reliable use in harsh conditions.
Programming is handled with the free HMIWorks software, which offers graphical screen design, Ladder Designer for PLC-oriented users and a C language environment. The front panel is rated IP65, and the unit mounts on a DIN rail or a panel.
Applications
- Operator panels for industrial automation systems
- Monitoring and control of I/O at remote sites over serial or Ethernet
- Retrofits of existing automation systems
- Firmware updates from a central computer
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB |
| Ports: | 2 serial, 1 Ethernet |
| PoE: | IEEE 802.3af |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
| Housing: | IP65 front panel |
Technische Daten

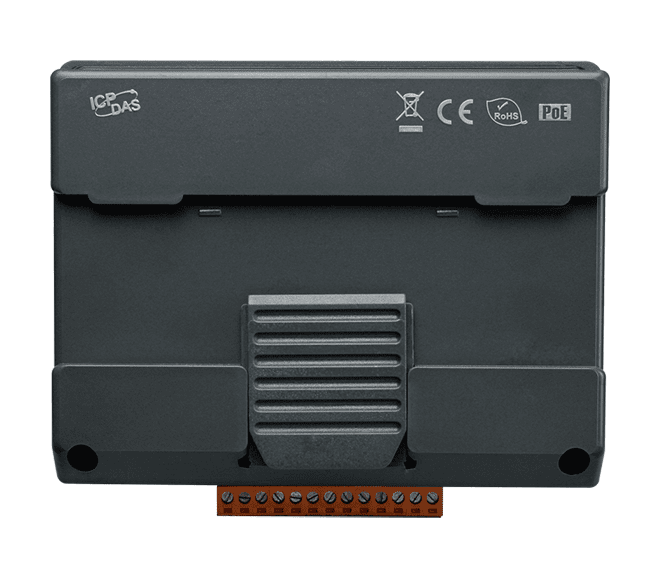

| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT (Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232/RS-485 including Self-Tuner |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 131 mm x 105 mm x 54 mm |
| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
