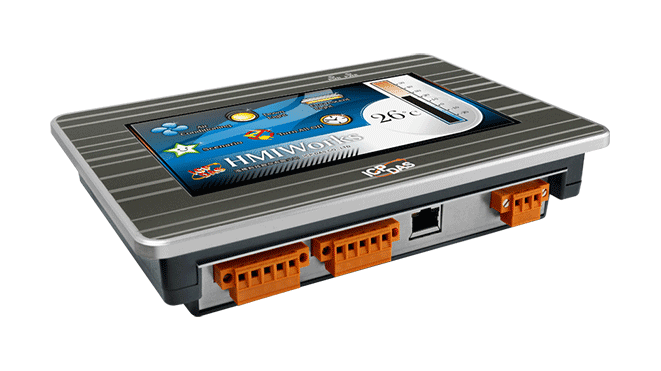

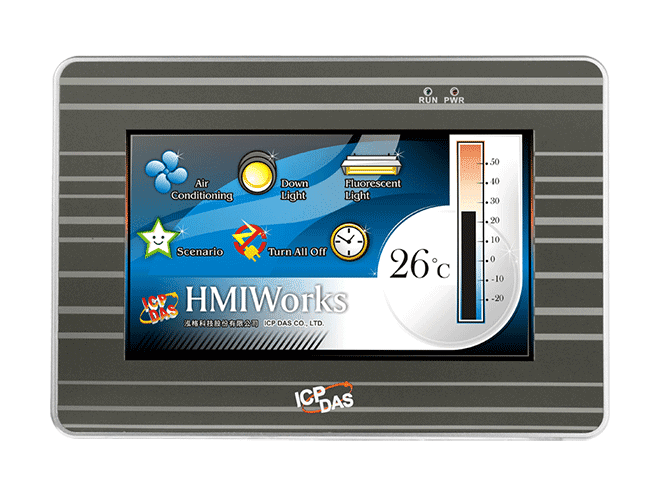

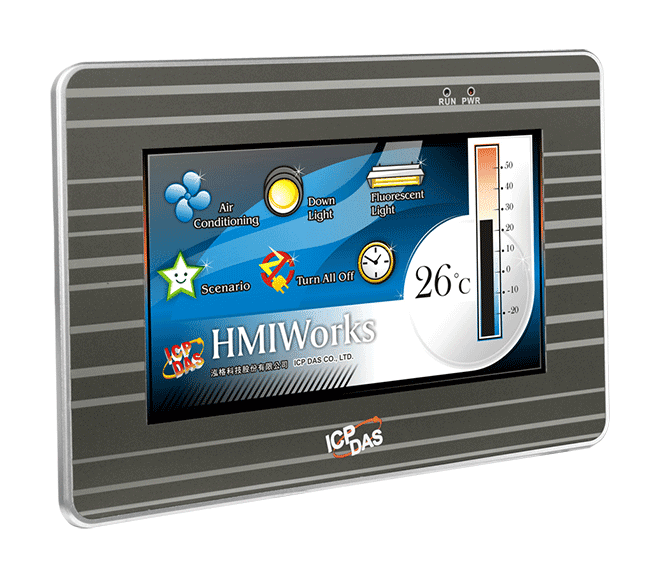

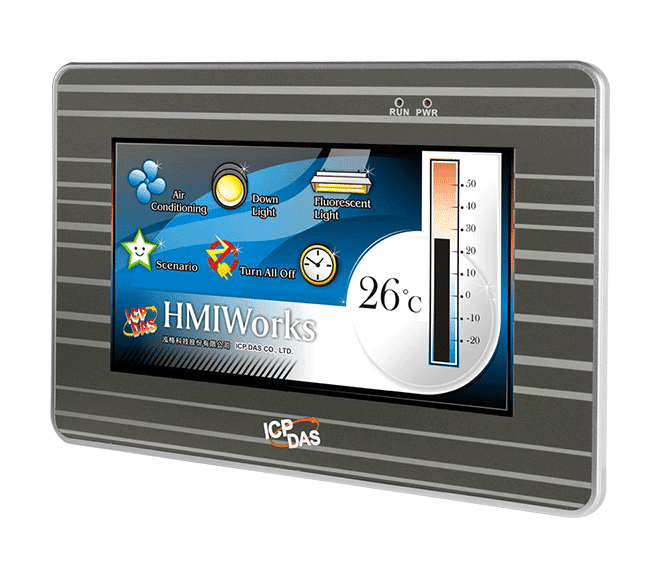

VPD-173N-64 7-inch Touch HMI, 2 x RS-232/RS-485, Ethernet PoE, 64 MB
7-inch colour touch HMI with an 800 x 480 TFT display, two isolated RS-232/RS-485 ports, Ethernet with PoE and an RTC, for building, home and industrial automation.
- 7-inch TFT colour touch display, 800 x 480 resolution, 65535 colours
- Two RS-232 (3-pin) or RS-485 ports with 2500 VDC isolation
- 10/100 Base-TX Ethernet with PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power
- 64 MB SDRAM and 64 MB Flash memory
- Real-time clock, buzzer, rotary switch and reset button
- Front panel IP65 / NEMA 4 rating with wall mounting
443,00 € pro Stück
| 1–9 Stück | 443,00 € | |
|---|---|---|
| 10–30 Stück | 430,00 € | −3 % |
| ab 31 Stück | 421,00 € | −5 % |
Produktinformationen "VPD-173N-64 7-inch Touch HMI, 2 x RS-232/RS-485, Ethernet PoE, 64 MB"
The VPD-173N-64 CR is a 7-inch touch HMI from the VPD Series, aimed at engineers who need a wall-mounted operator panel with serial and Ethernet connectivity. It combines an 800 x 480 TFT colour touch display with two RS-232 or RS-485 serial ports, so it can talk to field devices over either standard without an additional converter.
Power can come from PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block, which simplifies cabling where an Ethernet drop is already present. The -64 variant provides 64 MB SDRAM and 64 MB Flash, and the real-time clock, buzzer, rotary switch and reset button support time-stamped and user-interactive applications.
Programming is handled by the free HMIWorks tool, which offers a Ladder Designer for PLC users and a C language environment for software-focused users. The front panel is rated IP65 / NEMA 4, and the unit mounts on a wall.
Applications
- Building automation
- Home automation
- Industrial automation
| Product type: | HMI |
|---|---|
| Interface: | Ethernet, RS-232/RS-485 |
| Ports: | 2 serial, 1 Ethernet |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ 48 VDC, PoE 802.3af |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Wall |
| Housing: | IP65 front panel |
Technische Daten
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 64 MB SDRAM/64 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |

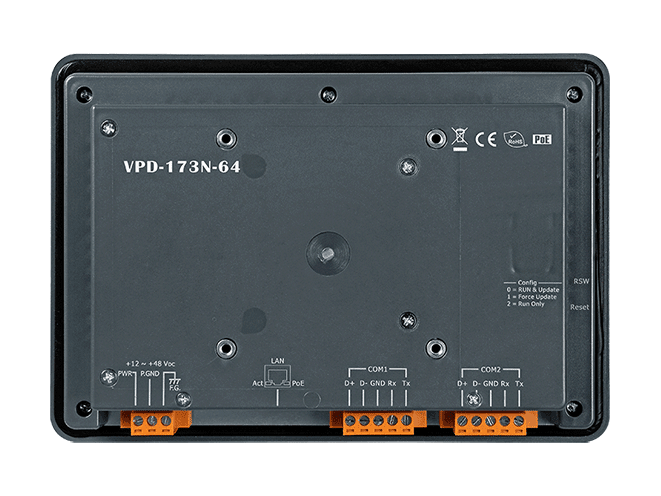

| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| Power | |
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
