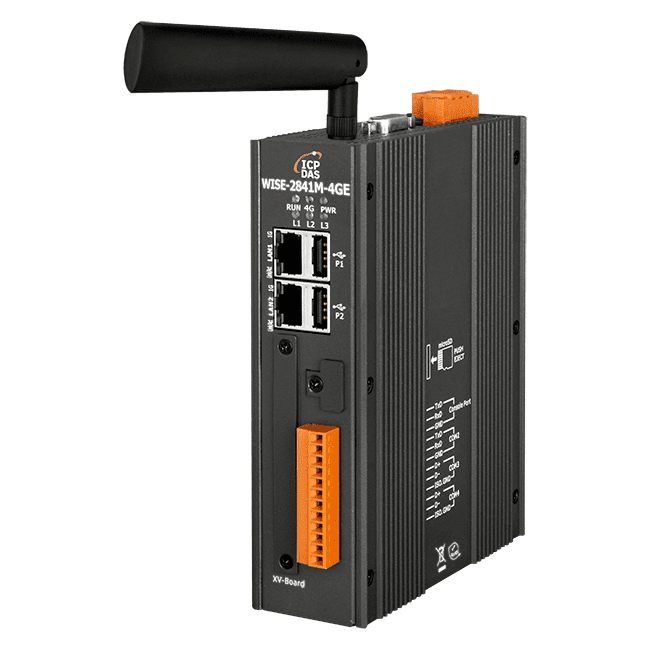

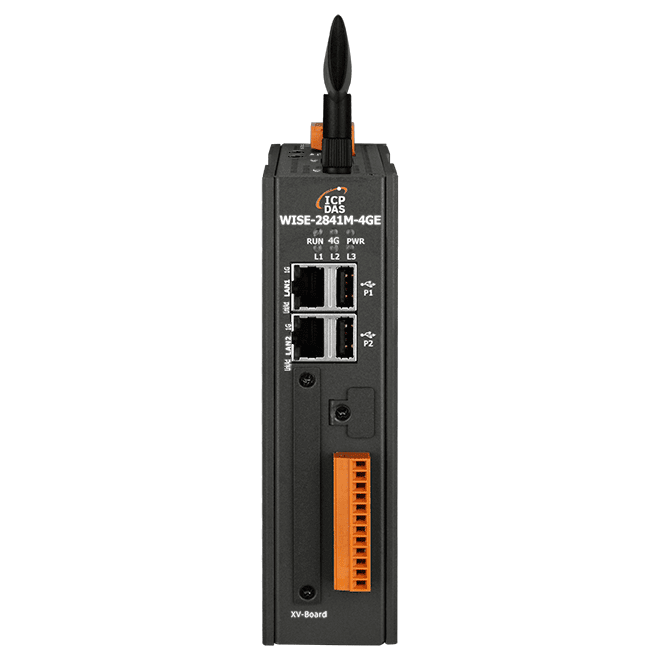

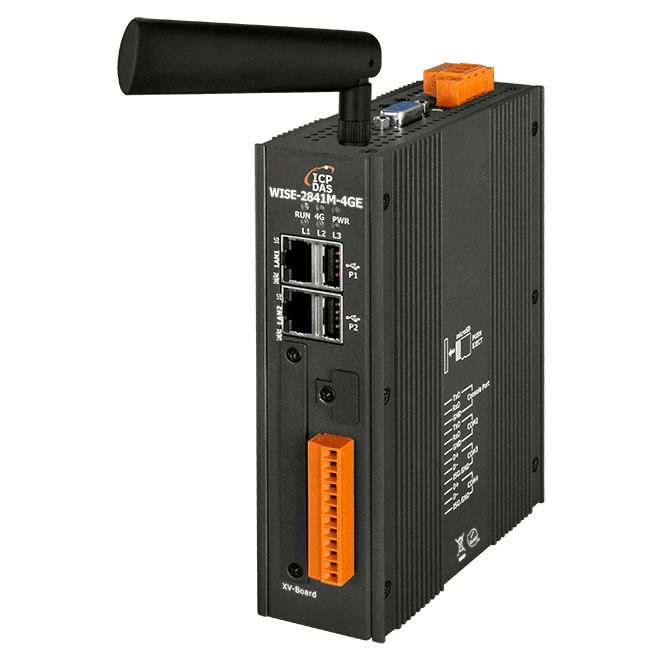

WISE-2841M-4GE IIoT Edge Controller, Metal Case with 4G Communication
Browser-configured IIoT edge controller with 4G cellular connectivity, IF-THEN-ELSE logic and support for Modbus TCP/RTU, MQTT, SNMP and encrypted protocols, in a metal case.
- Browser-based configuration with IF-THEN-ELSE logic rules, requiring no extra software tool
- Supports DCON or Modbus RTU slave modules (up to 32) and Modbus TCP slave modules (up to 16)
- Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3 protocols, with HTTPS, SFTP and FTPS encryption
- 4G wireless data communication with FDD LTE B1/B3/B5/B7/B8/B20 bands
- Two RJ-45 10/100/1000 Base-TX Ethernet ports and RS-485 COM3 and COM4 ports with 2500 VDC isolation
- Timer, schedule and data logger functions, with real-time message sending via LINE Notify, Telegram, WeChat, SMS and Email
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WISE-2841M-4GE IIoT Edge Controller, Metal Case with 4G Communication"
The WISE-2841M-4GE is a metal-case IIoT edge controller that is configured through a web browser, so no additional software tool is needed. Control logic is built on web pages rather than written as code, and IF-THEN-ELSE rules run directly on the controller. It suits engineers who want local automation logic, I/O monitoring and data handling at the edge without custom programming.
On the connectivity side, the unit combines RS-485 and Modbus slave support with 4G wireless communication. It can read DCON, Modbus RTU and Modbus TCP slave modules, and it can send data and messages over Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3. HTTPS, SFTP and FTPS are available for encrypted access, and a VPN function allows connection to devices on a secured network.
This ordering code is the 4G variant with a frequency band for EMEA, Korea, Thailand, India and Taiwan. The 4G system supports FDD LTE bands B1/B3/B5/B7/B8/B20, and the controller also supports a range of cloud platforms, including Amazon Web Services, Microsoft Azure and IBM Bluemix, as well as the IoTstar Cloud Management Software.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP/RTU, MQTT, SNMP |
| Ports: | 2 |
| Isolation: | 2500 VDC (COM3, COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall / DIN-rail |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client (Support SFTP/FTPS) & Server (Support TLS Encryption) • SNMP v2c/v3 & SNMP Trap • MQTT Client (Message Publish & Subscribe; Support SSL/TLS) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS • VPN |
| Function | • Web Interface for Configuration (Support HTTPS) • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (100 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify, Telegram, WeChat) • non-SSL & SSL Email sending function • SMS message sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Amazon Web Services IoT Cloud platform • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | Quad-core ARM CPU, 1.6 GHz/Core |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 2 TB microSDXC card) |
| LED Indicators | |
| Status | 1 x Power 1 x Running 1 x Modem Status |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download: Max. 100 Mbps; Upload: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 15W |
| Mechanical | |
| Dimensions (mm) | 42 × 164 × 129 (W x L x H) |
| Installation | Wall Mounting / DIN-Rail Installation; Optional |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
