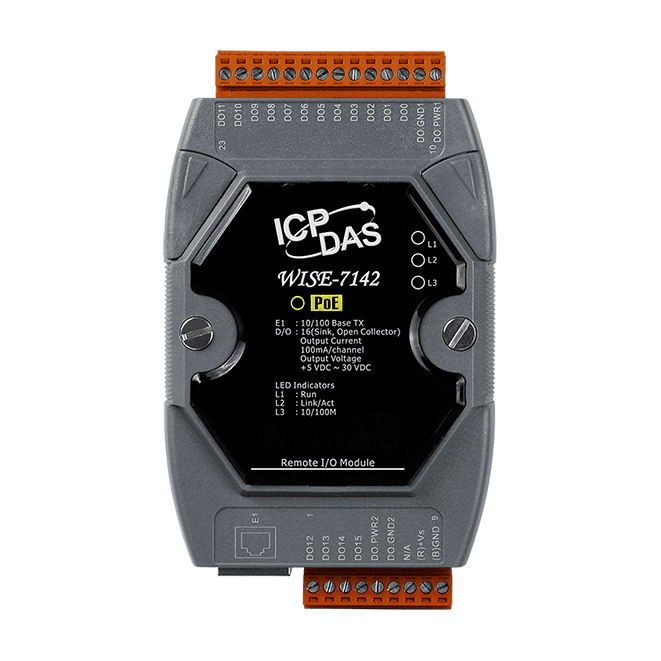

WISE-7142 PoE Web-Based I/O Module, 16-ch Sink Digital Output
Modbus TCP-enabled WISE I/O module with 16 sink-type digital outputs, browser-configured IF-THEN-ELSE logic and IEEE 802.3af Power over Ethernet.
- 16 sink-type digital output channels with overvoltage protection (60 VDC), overload protection (1.3 A) and short-circuit protection
- IF-THEN-ELSE logic operation with 36 rules, plus timers, internal registers, recipes and advanced P2P
- Web interface for configuration, requiring no additional software tool
- Modbus TCP protocol for SCADA system integration, plus CGI command sending and non-SSL email sending
- IEEE 802.3af-compliant PoE, Class 1, with 12 ~ 48 VDC terminal block power as an alternative
- Intra-module isolation of 2500 VDC and EFT, ESD and surge protection to IEC 61000-4 levels
218,00 € pro Stück
| 1–9 Stück | 218,00 € | |
|---|---|---|
| 10–30 Stück | 212,00 € | −3 % |
| ab 31 Stück | 207,00 € | −5 % |
Produktinformationen "WISE-7142 PoE Web-Based I/O Module, 16-ch Sink Digital Output"
The WISE-7142 CR is a PoE-powered intelligent I/O module with 16 sink-type digital output channels. Control logic is built through the module's web interface in a browser, so no separate programming tool is needed. Engineers can set up IF-THEN-ELSE rules, timers and I/O channel monitoring directly on the unit.
The module draws power from an IEEE 802.3af (Class 1) PoE network over a standard Category 5 cable, which reduces cabling and the need for a dedicated outlet at the installation point. Where PoE is not available, it can be powered from an auxiliary source such as an AC adapter or battery, within the 12 ~ 48 VDC input range.
- Supports Modbus TCP for integration with SCADA software.
- Digital outputs are isolated open collector, rated 5 ~ 30 VDC load voltage and 100 mA per channel at 25 °C.
- Suitable for DIN-rail or wall mounting, operating from -25 ~ +75 °C.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis and testing equipment
| Product type: | I/O module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Digital outputs: | 16 |
| Ports: | 1 |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Protocol | • Modbus TCP • CGI Command (Sending) |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (36 rule supported) • I/O channel monitoring and control • Timer operation (12 set supported) • Internal Register operation (48 set supported) • Recipe operation (12 set supported) • Advanced P2P (8 set supported) • non-SSL Email sending function |
| CPU Module | |
| CPU | 16-bit CPU (80 MHz) |
| Isolation | |
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x PoE Power 1 x System Running 1 x Ethernet Link/Act 1 x Ethernet 10/100M Speed |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC ~ +30 VDC |
| Load Current | 100 mA/Channel at 25 °C Direct drive power relay module |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.3 A |
| Short-circuit Protection | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X |
| PoE | Yes |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Consumption | 2.6 W |
| Powered from PoE | Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
