WP-5239-CE7-1500 WinPAC-5000 PAC, InduSoft 1500-Tag, Windows CE 7.0
InduSoft-based WinPAC-5000 programmable automation controller with 1500 tags, Cortex-A8 1GHz CPU and Windows CE 7.0 for industrial control projects.
- InduSoft-based WinPAC-5000 with 1500 tags
- Cortex-A8 1GHz CPU running Windows CE 7.0 Professional
- Hard real-time capability and 64-bit hardware serial number for software protection
- 512 MB SDRAM, 256 MB Flash and microSD socket with 4 GB card included
- 10/100/1000M Ethernet port, one USB port and I/O expansion bus for an optional XV-board
- Four serial ports: two RS-232, two RS-485, one RS-485 isolated at 2500 VDC
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-5239-CE7-1500 WinPAC-5000 PAC, InduSoft 1500-Tag, Windows CE 7.0"

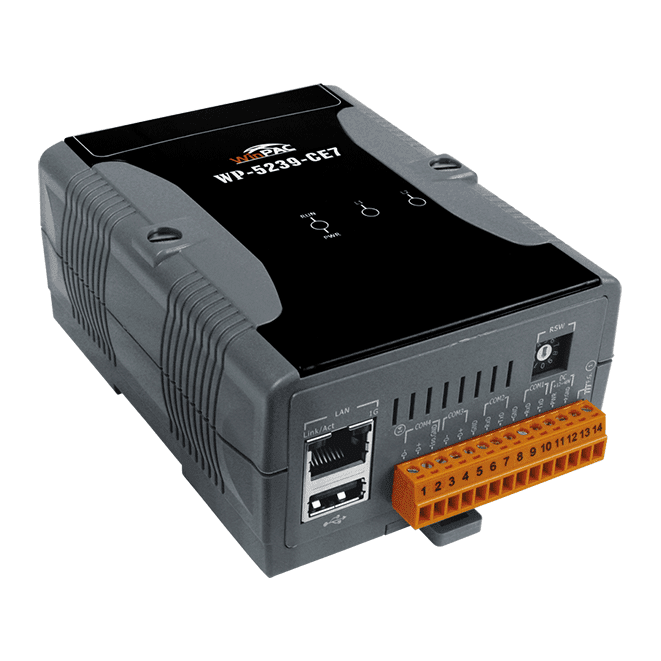

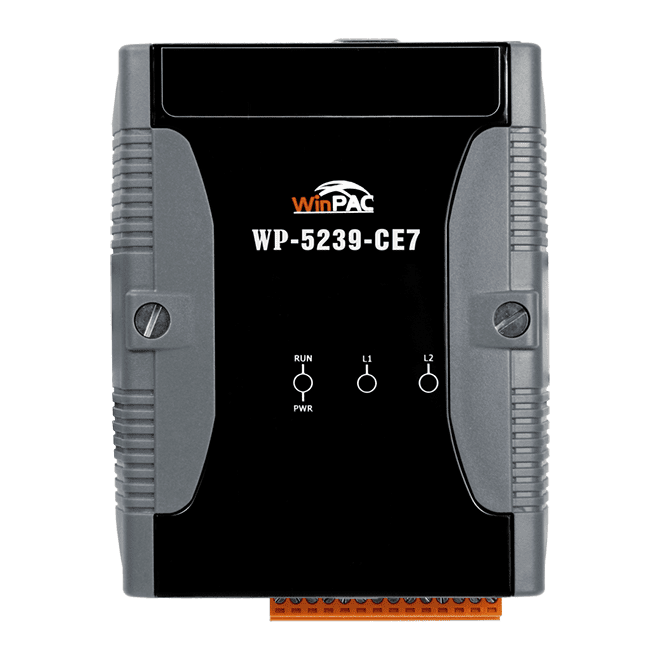

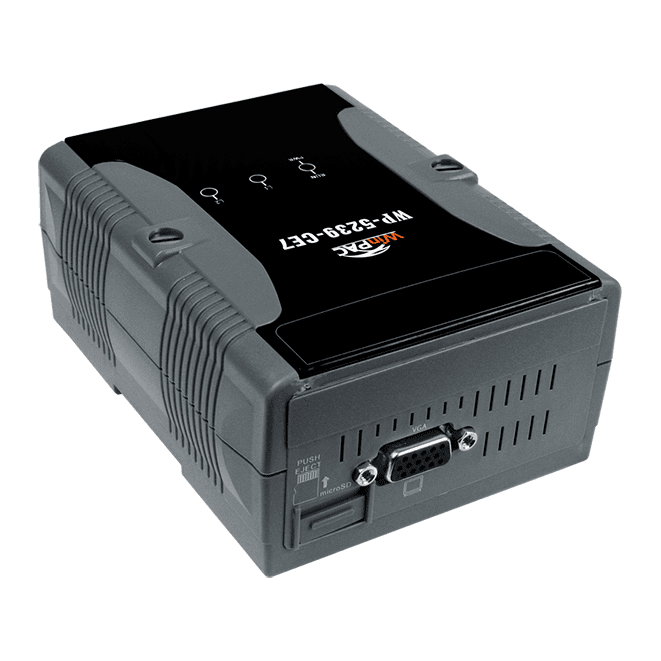

WP-5239-CE7-1500 is an InduSoft-based WinPAC-5000 controller rated for 1500 tags and running Windows CE 7.0 Professional on a Cortex-A8 1GHz processor. It suits engineers who want a Windows CE controller with multiple serial ports and Ethernet connectivity for application software built around InduSoft.
The unit has 512 MB of SDRAM, 256 MB of Flash and a microSD socket, supplied with a 4 GB card, plus 64 KB of FRAM for non-volatile data. A 10/100/1000M Ethernet port, four serial ports and a USB connector cover common communication needs, and an I/O expansion bus accepts an optional XV-board.
Power is supplied from +12 ~ +48 VDC and the controller mounts on DIN-rail. It is rated for an operating temperature of -25 °C ~ +75 °C and is listed as RoHS and WEEE compliant.
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Ports: | 4 serial, 1 Ethernet, 1 USB |
| Isolation: | 2500 VDC (one RS-485 port) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | MicroSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card); Flash 256 MB; |
| Non-Volatile Memory | FRAM: 64 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 640 × 480, 800 × 480, 800 × 600, 1024 × 769 |
| LED Indicators | |
| Status | 1 x Power and Communication 2 x User defined |
| I/O Expansion | |
| I/O Type | Yes, one optional XV-board |
| HMI | |
| Rotary Switch | Yes (0 ~ 10) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-485, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 1 x USB |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
