WP-8429-CE7 InduSoft WinPAC PAC, 4-slot Windows CE 7.0 Controller
Four-slot WinPAC controller with a 1 GHz Cortex-A8 CPU, Windows CE 7.0 and pre-installed InduSoft runtime, for HMI and SCADA projects with I-8K and I-87K I/O expansion.
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 Professional with InduSoft Runtime pre-installed
- Four I/O expansion slots for I-8K and I-87K series modules
- Two 10/100/1000M Ethernet ports plus four serial ports, one RS-485 port with 3000 VDC isolation
- Redundant power input with one alarm relay (1 A @ 24 VDC)
- Hard real-time capability and 64-bit hardware serial number for software protection
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-8429-CE7 InduSoft WinPAC PAC, 4-slot Windows CE 7.0 Controller"
The WP-8429-CE7 is a Windows CE 7.0 programmable automation controller with the InduSoft runtime pre-installed, aimed at engineers building HMI and SCADA applications on a compact embedded platform. Its Cortex-A8 processor at 1.0 GHz is paired with 512 MB of DDR3 SDRAM and 256 MB of Flash, with a microSD slot for additional storage.

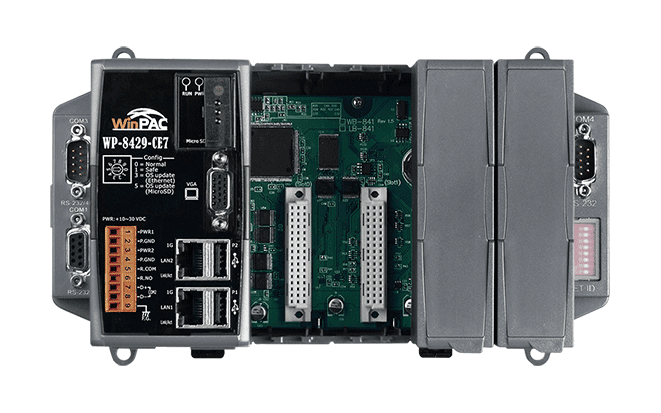

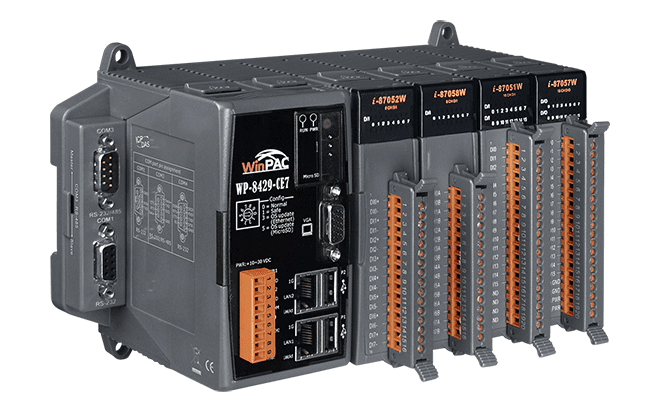

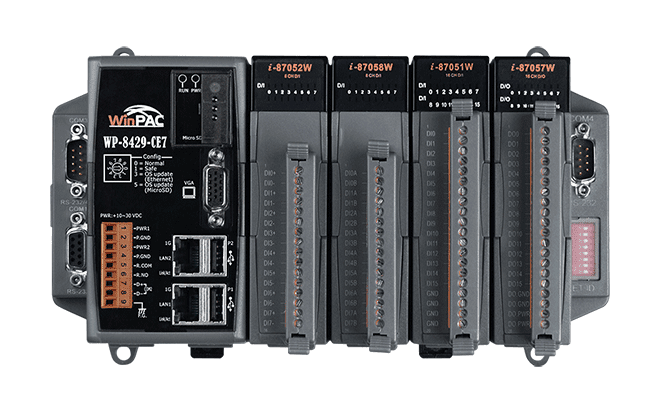

Four expansion slots accept I-8K (parallel-type) and I-87K (serial-type) series I/O modules, so the controller can be fitted to the signal count and mix a project needs. Communication is covered by two 10/100/1000M Ethernet ports, two non-isolated RS-232 ports, one RS-232/485 port and one RS-485 port with 3000 VDC isolation, plus two USB connectors and VGA output for a local display.
The unit has redundant power inputs with an alarm relay, a 64-bit hardware serial number for software copy protection, and an operating range of -25 ~ +75 °C. It mounts on DIN-rail or wall. The ordering code WP-8429-CE7 CR is the RoHS-compliant 4-slot variant with the 300-tag InduSoft licence.
Applications
- HMI development
- SCADA systems
- Distributed machine and process control with expandable remote I/O
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 x Ethernet, 4 x serial, 2 x USB |
| Isolation: | 3000 VDC (RS-485 port) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 4 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 9.1 W (0.38 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
