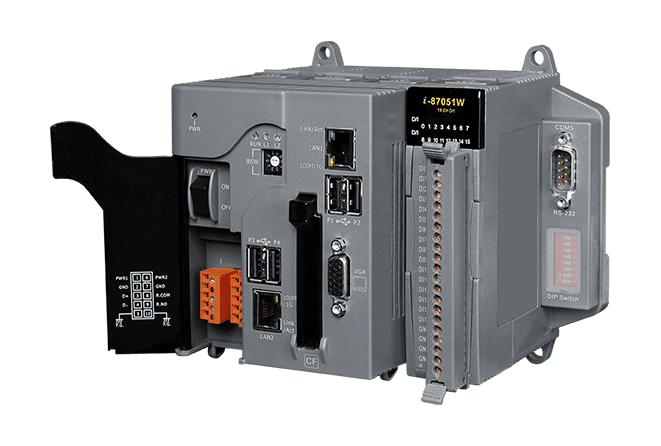

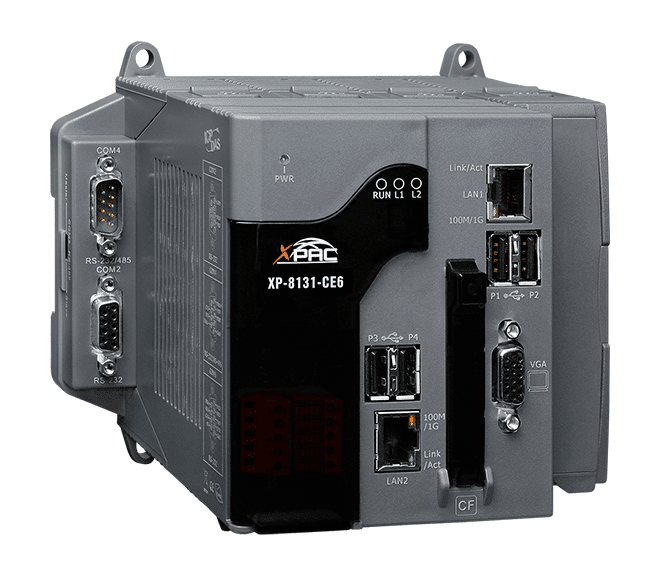

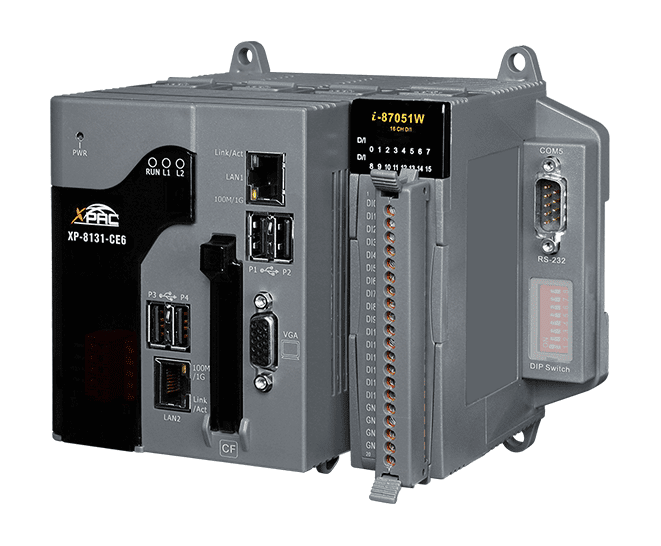

XP-8131-CE6 1-Slot Standard PAC with x86 CPU and WinCE 6.0
1-slot PAC with a 1 GHz dual-core x86 CPU and Windows CE 6.0, offering dual Ethernet, RS-232/485 serial ports and an I-8K/I-87K expansion slot for Windows-based control.
- Dual-core x86 CPU at 1 GHz running Windows CE 6.0 with hard real-time capability
- One expansion slot for I-8K and I-87K I/O modules
- 2 GB DDR3 SDRAM and 32 GB flash, with CF card storage up to 32 GB
- Two 10/100/1000BASE-T Ethernet ports with auto MDI/MDI-X
- Serial ports: 2 x RS-232, 1 x RS-485 and 1 x RS-232/RS-485, 3000 VDC isolated
- Four USB 2.0 host ports and built-in VGA display output
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "XP-8131-CE6 1-Slot Standard PAC with x86 CPU and WinCE 6.0"
The XP-8131-CE6 is a programmable automation controller built around a 1 GHz dual-core x86 CPU running Windows CE 6.0. Its single I/O expansion slot accepts high-profile I-8K parallel and I-87K serial I/O modules, so you can add input and output capacity without changing the controller platform.
Windows CE 6.0 gives the controller hard real-time capability, a small core, fast boot and deterministic control. The unit can also run PC-based control software such as Visual Basic .NET and Visual C#, which suits projects where a traditional PLC structure needs to be combined with Windows application development.
Memory and connectivity include 2 GB DDR3 SDRAM, 32 GB flash storage, dual 10/100/1000BASE-T Ethernet ports, serial COM ports, four USB 2.0 host ports and a VGA output. A 64-bit hardware serial number is available for software copy protection, and the redundant power input and dual watchdog timer support robust installations.
Applications
- PC-based industrial control using Windows CE applications
- Systems combining PLC-style I/O with Windows software development in .NET
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0, VGA |
| Ports: | 2 Ethernet, 4 USB 2.0 |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 6.0 |
| Service | FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio .NET 2005/2008 |
| Main Unit | |
| CPU | x86 CPU, 1 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | 32 GB Flash, CF Card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | XP-8031-CE6: 0 XP-8131-CE6: 1 XP-8331-CE6: 3 XP-8731-CE6: 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address * (except XP-8031-CE6) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485; (3000 VDC Isolated) * (XP-8031-CE6 provides 3 x RS-232) |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-8031-CE6: 12 W XP-8131-CE6: 16.6 W XP-8331-CE6: 16.8 W XP-8731-CE6: 18 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | XP-8031-CE6: 137 x 132 x 125 XP-8131-CE6: 169 x 132 x 125 XP-8331-CE6: 231 x 132 x 125 XP-8731-CE6: 355 x 132 x 125, (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
