XV110 16-ch Isolated DI Expansion Board, Dry/Wet Contact
16-channel isolated digital input expansion board for dry and wet contacts, with 32-bit counting on every channel and Modbus/RTU over RS-232.
- 16 isolated digital input channels accepting dry or wet contacts
- Sink or source input type selected through wire connections
- Effective distance up to 500 m for dry contact inputs
- All channels usable as 32-bit counters (0 ~ 4,294,967,285)
- 3750 VDC intra-module isolation and photocoupler isolation on every channel
- 70 VDC input overvoltage protection and ±4 kV contact ESD protection
99,00 € pro Stück
| 1–9 Stück | 99,00 € | |
|---|---|---|
| 10–30 Stück | 96,00 € | −3 % |
| ab 31 Stück | 94,00 € | −5 % |
Produktinformationen "XV110 16-ch Isolated DI Expansion Board, Dry/Wet Contact"

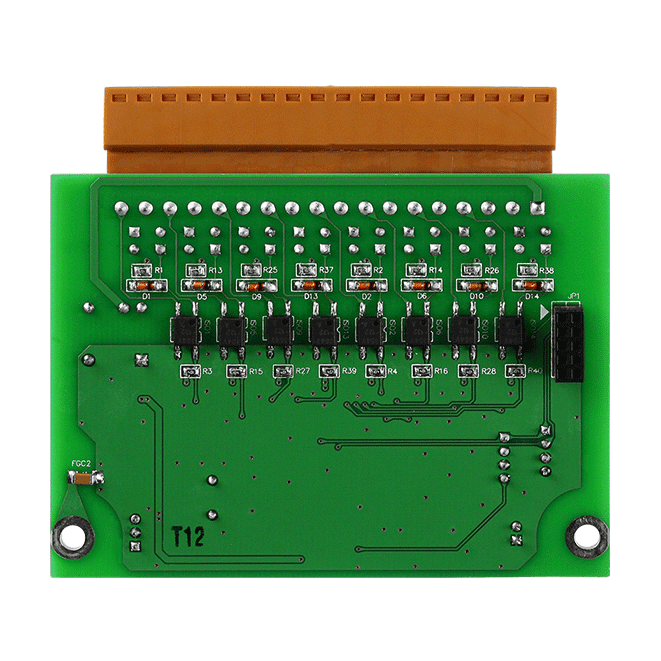

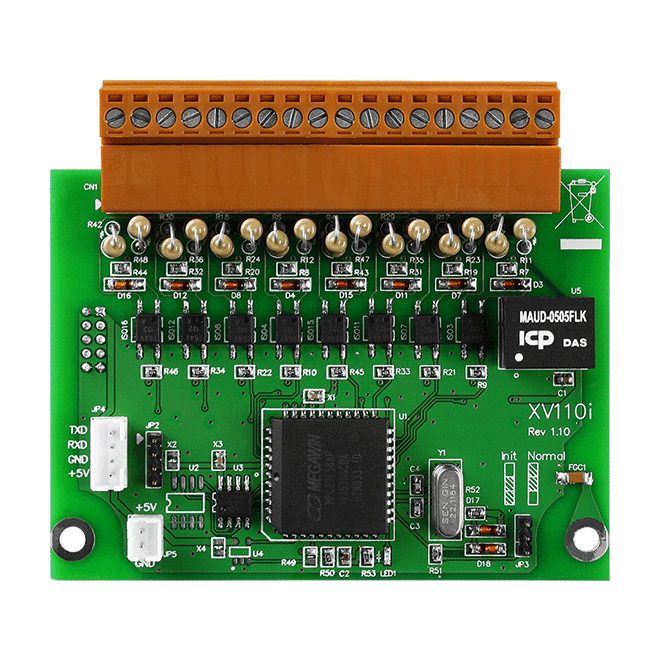

XV110 CR adds 16 isolated digital inputs to a system and accepts both dry and wet contact signals. Dry contacts can be run over an effective distance of up to 500 m, which suits switch and relay sensing across larger plant areas.
Each channel can be wired as sink or source type, and every channel can operate as a 32-bit counter. Photocoupler isolation on all channels, 3750 VDC intra-module isolation, 4 kV ESD protection and 70 VDC overvoltage protection on the inputs help the board withstand electrically noisy industrial environments.
- Suited to pulse and event counting with a 50 Hz frequency and 10 ms minimum pulse width
- Communicates through a single RS-232 port using Modbus/RTU at 115200 bps, N, 8, 1
- Draws 0.25 W maximum and is powered at 5 VDC from the terminal block
Applications
- Digital input expansion for PAC I/O systems
- Pulse and event counting
- Sensing dry and wet contact switches in industrial environments
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital inputs: | 16 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Input/Counter | |
| Channels | 16 |
| Type | Dry Contact, Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +3.5 ~ 50 VDC |
| OFF Voltage Level | Dry: Open Wet: +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Effective Distance | 500 m Max. |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 0.25 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
