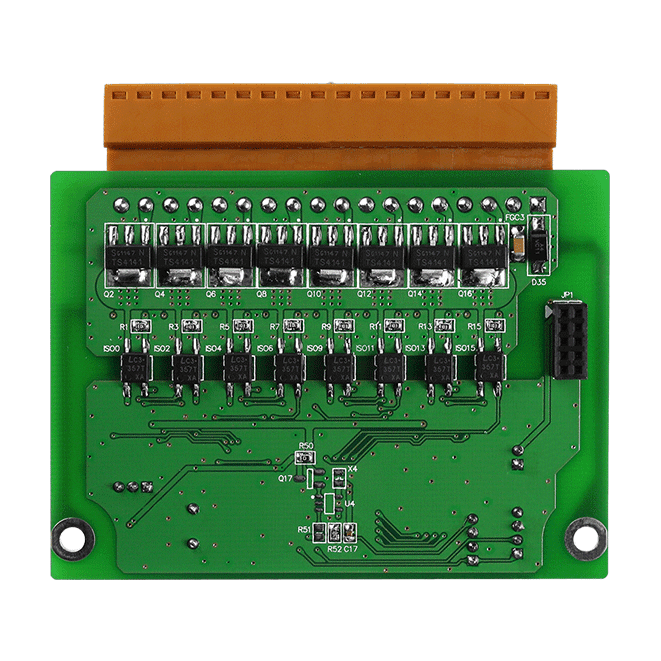

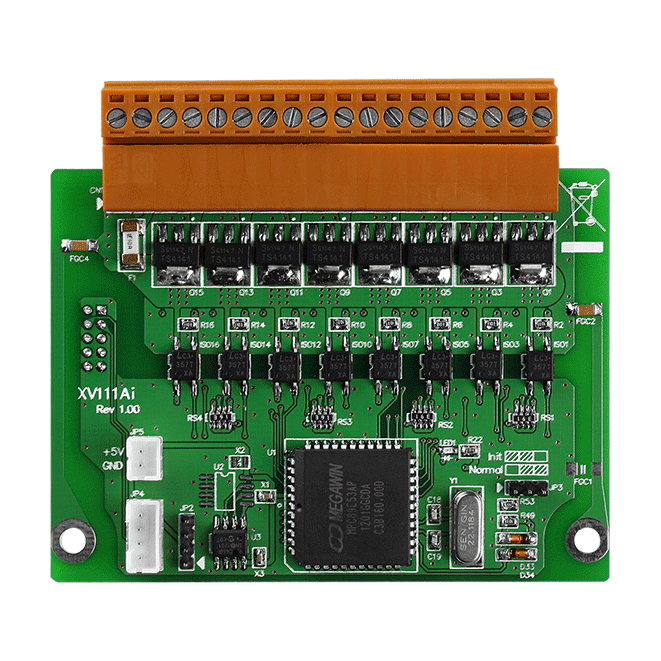

XV111A 16-ch Isolated Source-type Digital Output Expansion Board
16-channel isolated source-type (PNP) digital output expansion board for 10 ~ 40 VDC loads, with Modbus/RTU over RS-232 and 3750 VDC intra-module isolation.
- 16 source-type (PNP) digital outputs rated 10 ~ 40 VDC
- 600 mA load current per channel
- Overvoltage protection at 47 VDC, plus overload and short-circuit protection
- Programmable power-on output values
- 3750 VDC intra-module isolation with photocoupler isolation on each channel
- ±4 kV contact ESD protection per terminal
95,00 € pro Stück
| 1–9 Stück | 95,00 € | |
|---|---|---|
| 10–30 Stück | 93,00 € | −2 % |
| ab 31 Stück | 91,00 € | −4 % |
Produktinformationen "XV111A 16-ch Isolated Source-type Digital Output Expansion Board"
The XV111A CR is a 16-channel digital output expansion board with source-type (PNP) outputs. Each channel is photocoupler isolated and rated for a load voltage of 10 ~ 40 VDC and a load current of 600 mA per channel, which suits engineers adding switched DC outputs to a PAC I/O system.
Each output is protected against overvoltage at 47 VDC, as well as against overload and short circuits. Power-on output values are programmable, so the board can be set to a defined state when it powers up. The board also provides 4 kV contact ESD protection on each terminal and 3750 VDC intra-module isolation.
Configuration and status are handled over a single RS-232 port running Modbus/RTU at 115200 bps, data format N, 8, 1. The board draws its 5 VDC supply from the terminal block, consumes 0.8 W maximum, and measures 59 mm x 82 mm x 13 mm. It is specified for operation from -25 ~ +75 °C.
Applications
- Digital output expansion for PAC I/O systems
- Switching 10 ~ 40 VDC PNP-type loads
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital outputs: | 16 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Output | |
| Channels | 16 |
| Type | Source |
| Load Voltage | 10 ~40 VDC |
| Load Current | 600 mA/channel |
| Overvoltage Protection | 47 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 0.8 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
