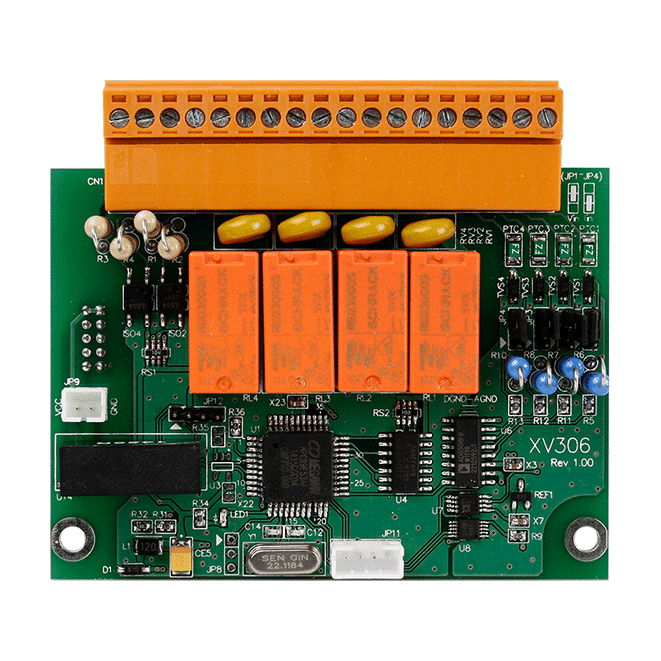

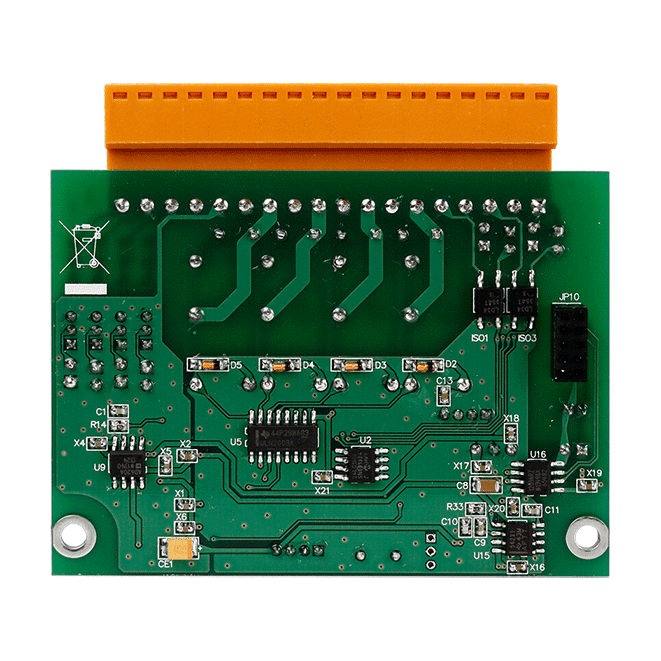

XV306 Expansion Board, 4-ch AI, 4-ch DI (Wet) and 4-ch Power Relay
Multifunction XV-board with 4 analogue inputs, 4 wet-contact digital inputs and 4 Form A power relay outputs for PAC I/O expansion. Ordering code XV306 CR.
- 4 analogue inputs, 4 wet-contact digital inputs and 4 Form A power relay outputs on one board
- Individual channel configuration with ranges from ±1 V to ±10 V, ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA
- Jumper-selectable voltage or current input and output
- Digital input channels can be used as 32-bit counters
- Configurable power-on values for the digital outputs
- 2000 VDC intra-module isolation and ±4 kV contact ESD protection
136,00 € pro Stück
| 1–9 Stück | 136,00 € | |
|---|---|---|
| 10–30 Stück | 132,00 € | −3 % |
| ab 31 Stück | 130,00 € | −4 % |
Produktinformationen "XV306 Expansion Board, 4-ch AI, 4-ch DI (Wet) and 4-ch Power Relay"
The XV306 CR is a multifunction expansion board that combines four analogue input channels, four wet-contact digital input channels and four Form A power relay outputs on a single board. It suits engineers who need mixed analogue, digital and switching I/O alongside a PAC controller without adding separate modules.
Each analogue input can be configured individually across a range of voltage and current spans, from ±1 V to ±10 V and ±20 mA through to 0 ~ 20 mA and 4 ~ 20 mA. Voltage or current outputs are selected by jumper. The digital inputs can also be used as 32-bit counters, and the relay outputs support configurable power-on values.
For noise-sensitive installations, the board provides 2000 VDC intra-module isolation and ±4 kV contact ESD protection, with overvoltage protection of 120 VDC on the analogue inputs and 70 VDC on the digital inputs. An RS-232 port running Modbus/RTU at 115200 bps, with N, 8, 1 data format, is included for host communication.
Applications
- Expanding PAC I/O with mixed analogue, digital and relay channels
- Counting pulses and monitoring wet-contact signals with 32-bit counters
- Switching loads through 6 A Form A power relays
- Industrial environments where noise immunity is important
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital inputs: | 4 |
| Relay outputs: | 4 |
| Analog inputs: | 4 |
| Ports: | 1 |
| Isolation: | 2000 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Analog Input | |
| Channels | 4 |
| Type | ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1 % Fast Mode: ±0.5 % |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 200 Hz |
| Input Impedance | 20 MΩ |
| Overvoltage Protection | 120 VDC |
| Individual Channel Configuration | Yes |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
| Channels | 4 |
| Type | Power Relay (Form A) |
| Contact Material | Silver Cadmium Alloy |
| Contact Rating | 6 A @ 35 VDC 6 A @ 240 VAC |
| Operate Time | 5 ms (typical) |
| Release Time | 1 ms (typical) |
| Electrical Endurance | 1 x 10^5 ops. |
| Mechanical Endurance | 30 x 10^6 ops. |
| Power on Value | Yes |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 1.6 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
