iKAN-124 Single-Row LED Message Display, 24/12-Character, Modbus
Single-row 24-character industrial LED message display for PLC-driven text and live data, with Modbus control, dual RS-485 and RJ-45 Ethernet ports and wall mounting.
- Single-row display with 24 ASCII or 12 Unicode characters in seven colours
- Modbus RTU master/slave over two RS-485 ports, baud rates from 1200 to 115200
- Two RJ-45 10/100 Base-TX switch ports with web-based user interface
- Stores up to 128 priority-configurable messages, with up to 168 variables per message
- Data pool of 40 coil, 64 float and 64 integer values
- Built-in real-time clock with 24-hour date and time
1.883,00 € pro Stück
| 1–9 Stück | 1.883,00 € | |
|---|---|---|
| 10–30 Stück | 1.826,00 € | −3 % |
| ab 31 Stück | 1.789,00 € | −5 % |
Produktinformationen "iKAN-124 Single-Row LED Message Display, 24/12-Character, Modbus"
The iKAN-124 CR is a single-row LED message display for engineers who need to show PLC status, process values or operator text on the shop floor. It is configured through a web-based user interface and controlled over Modbus, so messages can be shown, hidden or updated directly from the control system.
Each line offers 24 ASCII or 12 Unicode characters in seven colours. The display stores up to 128 common messages with user-defined priority levels, and a single message can combine text with up to 168 variables. A data pool of 40 coil values, 64 float values and 64 integer values supports data exchange with the controller, while the built-in real-time clock provides date and time in a 24-hour format.

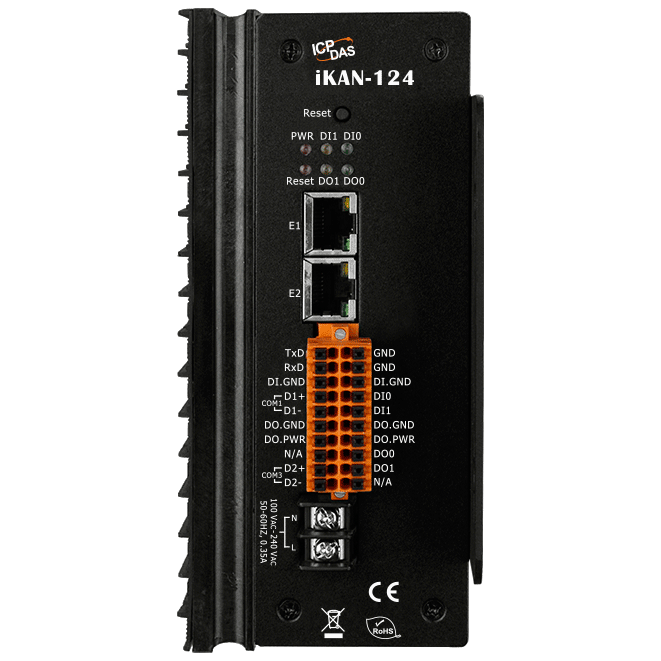

Connectivity comprises two RJ-45 10/100 Base-TX switch ports and two RS-485 ports supporting Modbus RTU master/slave. The unit operates from 100 ~ 240 VAC and is rated for 0 ~ +60°C, with wall mounting. It carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- PLC HMI displays showing real-time PLC data as text messages
- Indoor air quality displays fed by ICP DAS DL sensor modules, including CO, CO2, PM2.5, temperature and humidity
| Product type: | LED message display |
|---|---|
| Interface: | RJ-45, RS-485 |
| Protocol: | Modbus |
| Ports: | 2 × RJ-45, 2 × RS-485 |
| Power input: | 100 ~ 240 VAC |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | Wall |
| Housing: | Aluminum |
Technische Daten
| Display | |
|---|---|
| Size | iKAN-116: Row: 1，ASCII Characters: 16，Unicode Characters: 8 iKAN-124: Row: 1，ASCII Characters: 24，Unicode Characters: 12 |
| Real Time Clock | Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year |
| Character Sets | 16 x 16 Unicode or 8 x 16 ASCII |
| Color | Red, Blue, Yellow, Green, Light Blue, Purple or White |
| Data Pool | 40 Coil values, 64 Float values, and 64 Integer values |
| Message Pool | 128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters each * For complex characters such as Thai, Hindi or Arabic, please contact our sales team. |
| Ethernet | |
| Ports | 2 × RJ-45, 10/100 Base-TX, Switch Ports |
| Protocol | Modbus Master/Slave, Modbus TCP Master/Slave, GCI, HTTP/HTTPS, MQTT, EtherNet/IP and Redfish |
| Configuration | Web-based User Interface |
| COM Ports | |
| Ports | 2 × RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Slave |
| Power | |
| Input Range | 100 ~ 240 VAC |
| Consumption | iKAN-116: 0.3 A @ AC 120 V iKAN-124: 0.35 A @ AC 120 V |
| Mechanical | |
| Casing | Aluminum |
| Dimensions (mm) | iKAN-116: 1347 x 160 x 73 (W x L x H) iKAN-124: 1987 x 160 x 73 (W x L x H) |
| Installation | Wall mounting |
| Weight | iKAN-116: 4 Kg iKAN-124: 4.6 Kg |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -10 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
