iP-8841 8-Slot Ethernet PAC with 80186-80 CPU and MiniOS7
Embedded 8-slot Ethernet PAC running MiniOS7, supporting I-8K and I-87K I/O modules, with dual Ethernet ports, four serial COM ports and redundant power inputs.
- 80186 CPU at 80 MHz running the MiniOS7 embedded operating system
- Eight slots for I-8K and I-87K series I/O modules
- Dual 10/100 Base-TX Ethernet ports (RJ-45)
- Four serial COM ports: 2 x RS-232, 1 x RS-485 (3000 VDC isolated), 1 x RS-232/RS-485
- C language development toolkit with TCP/IP and Modbus libraries
- 512 KB Flash, 16 KB EEPROM, 768 KB SRAM and microSD expansion up to 32 GB
596,00 € pro Stück
| 1–9 Stück | 596,00 € | |
|---|---|---|
| 10–30 Stück | 579,00 € | −3 % |
| ab 31 Stück | 567,00 € | −5 % |
Produktinformationen "iP-8841 8-Slot Ethernet PAC with 80186-80 CPU and MiniOS7"

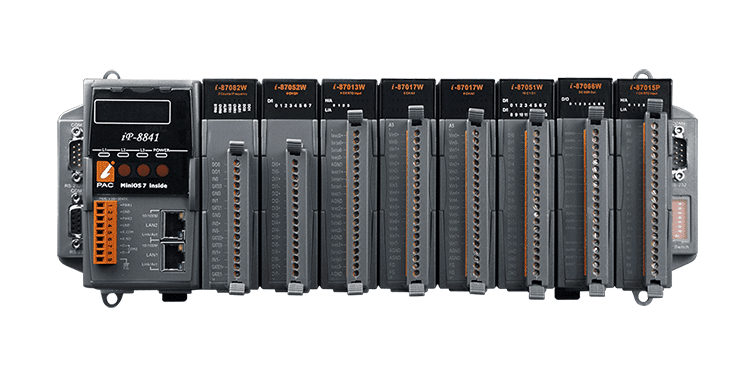

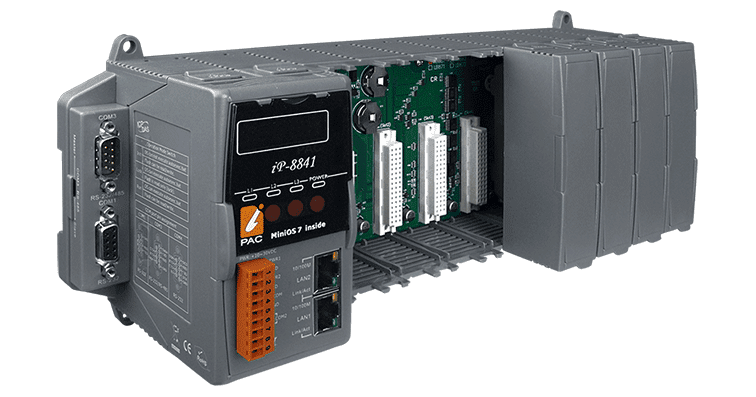

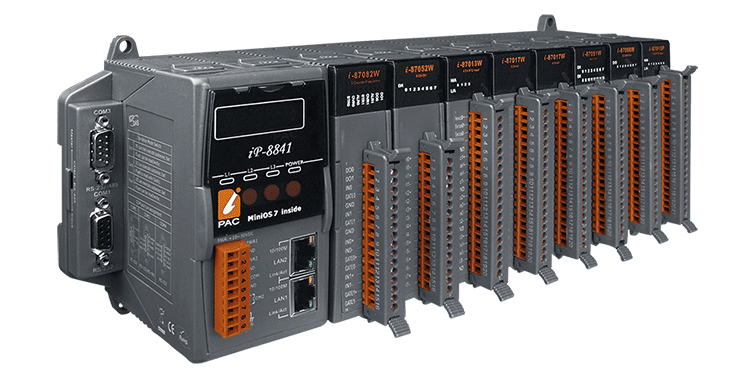

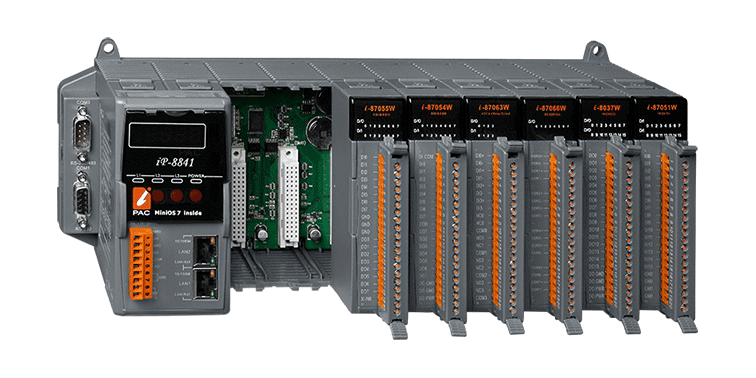

iP-8841 CR is an embedded controller built around an 80186-class CPU running at 80 MHz and the DOS-like MiniOS7 operating system. MiniOS7 boots in roughly 0.4 to 0.8 seconds, so the controller is ready quickly after power-up. The eight-slot backplane accepts I-8K and I-87K series I/O modules, covering digital, analogue, counter/frequency and motion functions, which lets you tailor the I/O count to the application.
For connectivity, the controller provides two 10/100 Base-TX Ethernet ports and four serial COM ports, including RS-232 and RS-485 options, suited to remote data acquisition and control. Software is developed in C using the supplied toolkit, which includes TCP/IP and Modbus libraries and an XServer library with demo programs to speed up network application development.
The unit has redundant power inputs with 1 kV isolation and an operating range of -25 ~ +75 °C, making it suitable for monitoring, measurement and control in harsh industrial environments. This ordering code corresponds to the RoHS-listed variant.
Applications
- Industrial monitoring, measurement and control
- Remote data acquisition and control
- Environmental monitoring
- Power management
- Factory automation
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485 |
| Protocol: | Modbus |
| Ports: | 2 x Ethernet, 4 x serial |
| Isolation: | 1 kV |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 768 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | 1 x microSD card slot, supports up to 32 GB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Power, 3 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 8 |
| HMI | |
| Buzzer | Yes |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 7.2 W |
| Mechanical | |
| Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
