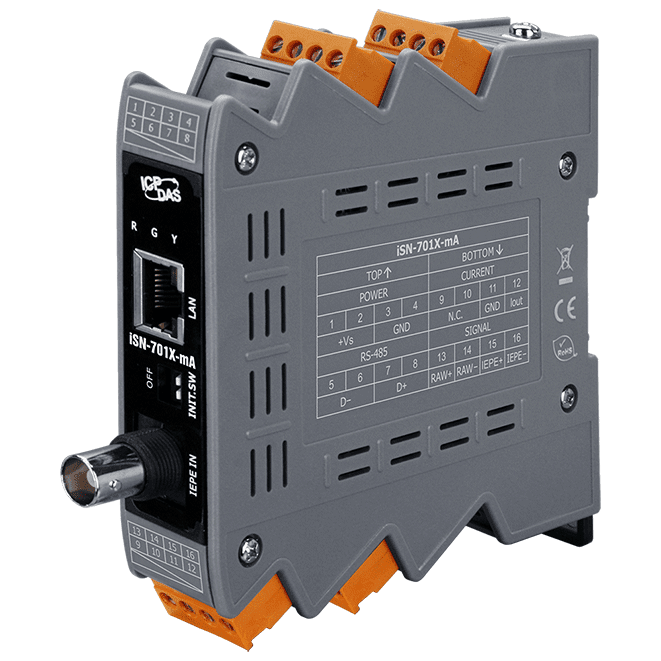

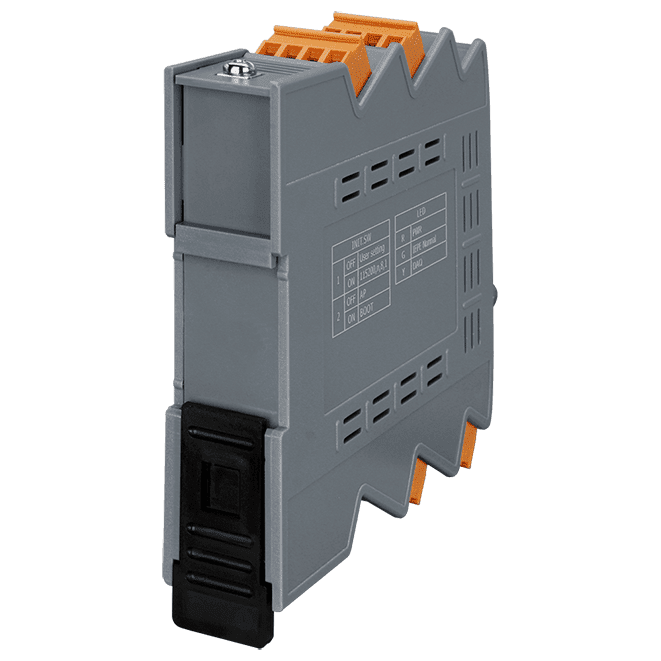

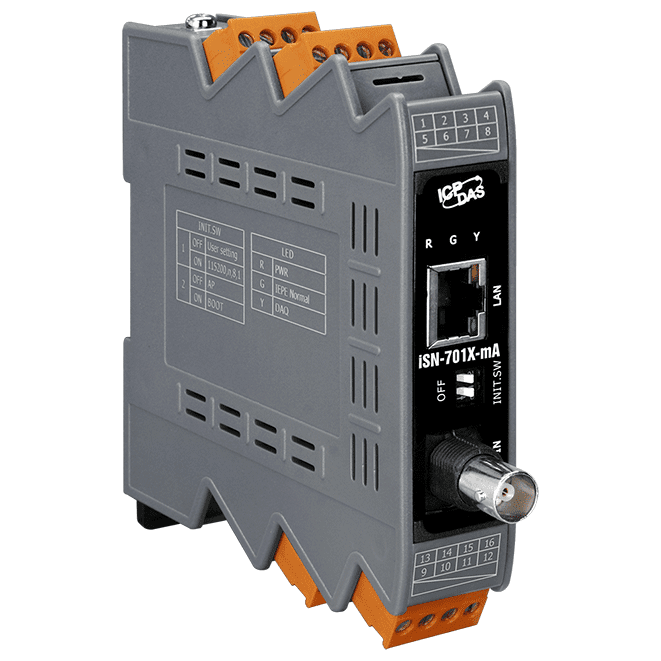

iSN-701X-mA Vibration to Current Converter, Modbus TCP/RTU, 1-ch IEPE
1-channel IEPE vibration converter with Modbus TCP/RTU slave interface and 0~20/4~20 mA analogue output, for controllers without a network port.
- 1-axis IEPE vibration input with 4 mA built-in excitation current
- 24-bit A/D conversion, sampling at 32 or 64 kHz, bandwidth 6 Hz ~ 6.4 kHz
- Modbus TCP slave over 10/100Base-T(X) Ethernet and Modbus RTU slave over RS-485 at up to 115200 bps
- Vibration eigenvalue threshold alarm
- Analogue output: voltage ±10 V and current 0~20/4~20 mA
- LED indicators for sensor Normal, Open and Short status
392,00 € pro Stück
| 1–9 Stück | 392,00 € | |
|---|---|---|
| 10–30 Stück | 380,00 € | −3 % |
| ab 31 Stück | 372,00 € | −5 % |
Produktinformationen "iSN-701X-mA Vibration to Current Converter, Modbus TCP/RTU, 1-ch IEPE"
The iSN-701X-mA converts a single-axis IEPE accelerometer signal into vibration eigenvalues that can be read over Ethernet or RS-485. It supplies 4 mA excitation to the sensor and digitises the signal with a 24-bit A/D converter, which suits high-frequency vibration measurement.
Eigenvalues can be polled through Modbus TCP or Modbus RTU, and a threshold alarm is raised when a value exceeds its set limit. The module also provides a current output, so a controller without a communication interface can still use the vibration figure as a 0~20 mA or 4~20 mA signal.

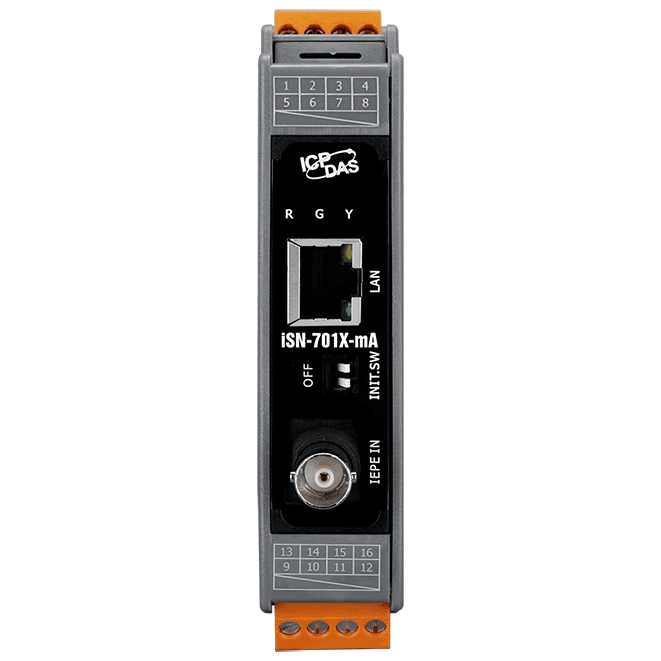

The DIN-rail housing accepts a +10 ~ +30 VDC supply and is rated for operation from -25 ~ +75 °C. Front-panel LEDs show power, sensor status (normal, open or short) and data acquisition activity, which simplifies commissioning and fault finding.
Applications
- Vibration monitoring
- High-frequency vibration measurement
- Condition monitoring of rotating machinery with IEPE accelerometers
| Product type: | Vibration converter |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Analog inputs: | 1 |
| Analog outputs: | Voltage x 1, Current x 1 |
| Ports: | 2 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 1 X PWR 1 X IEPE 1 X DAQ |
| Analog Input | |
| Channels | 1 |
| Type | IEPE |
| Range | ±10 V |
| Resolution | 24 bit |
| Sampling Rate | 32, 64 (kHz) |
| Bandwidth | 6 Hz ~ 6.4 kHz |
| Excitation Current | 4 mA |
| Analog Output | |
| Type | Voltage x 1, Current x 1 |
| Range | Voltage: ±10 V Current: 0~20/4~20 mA |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Protocol | Modbus TCP |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Protocol | Modbus RTU |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 25 mm x 120 mm x 117 mm (W x L x H) |
| Installation | Din-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ 80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
