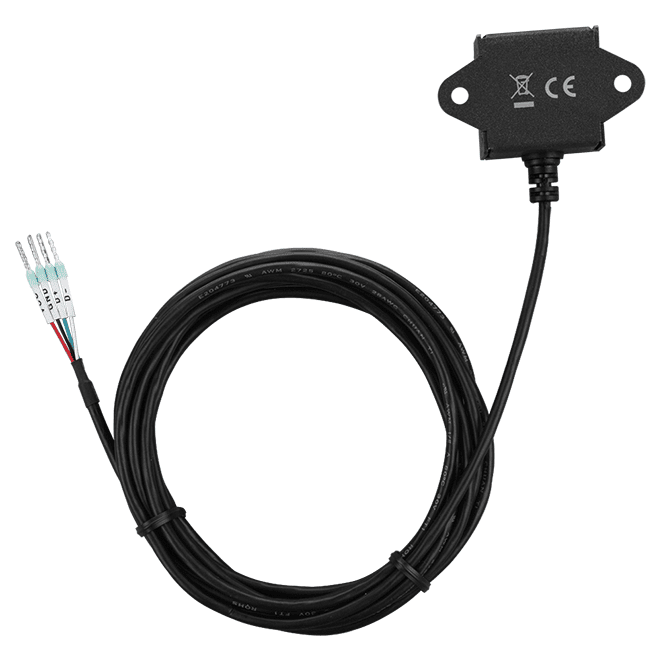

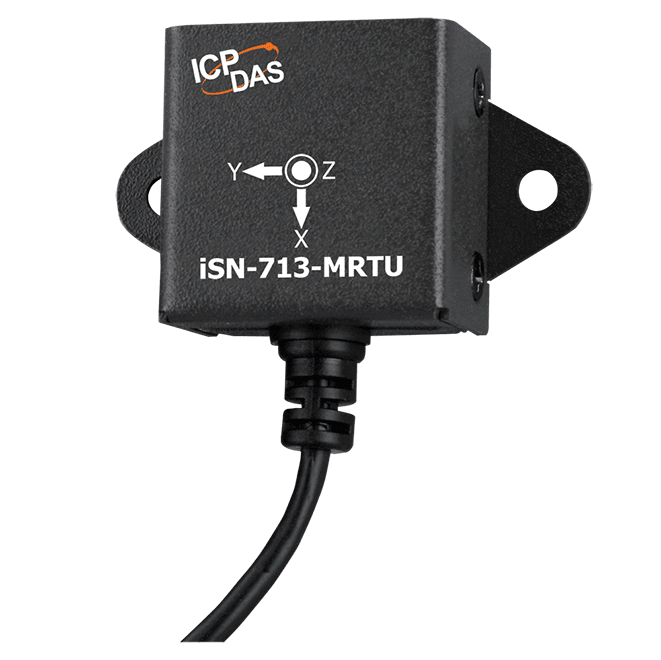

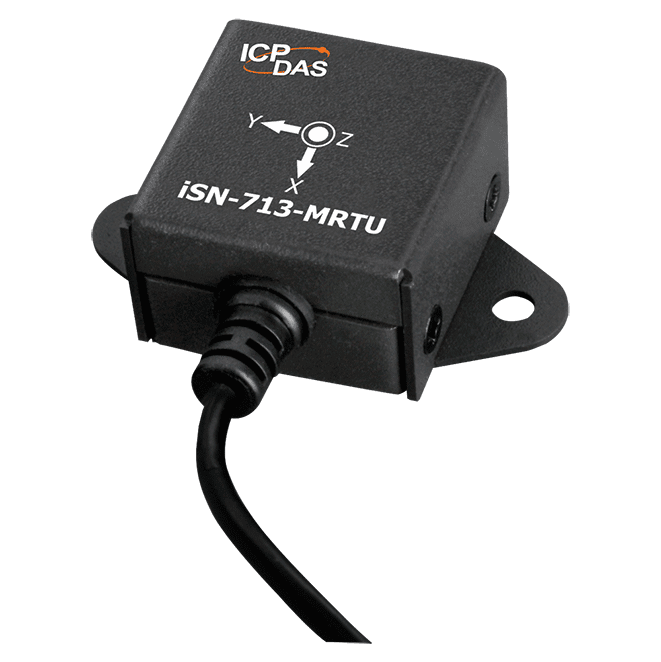

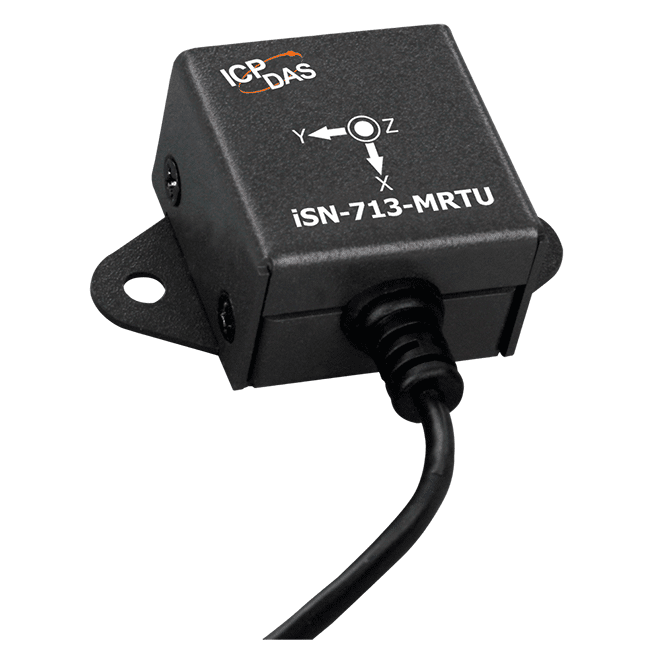

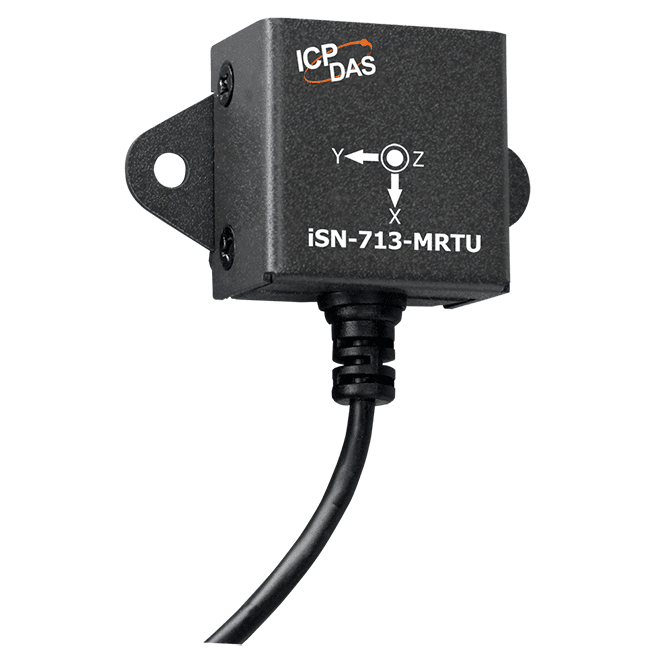

iSN-713-MRTU Three-Axis MEMS Vibration Sensor Module, RS-485 Modbus RTU
Three-axis MEMS vibration sensor with an RS-485 port and Modbus RTU slave protocol for equipment vibration monitoring. Measures ±8g over 6 Hz ~ 1 kHz.
- Built-in three-axis MEMS accelerometer for vibration measurement
- Amplitude range ±8g with a 6 Hz ~ 1 kHz frequency range
- Single RS-485 port with Modbus RTU slave protocol
- Selectable baud rates from 9600 to 115200 bps
- Input range +10 ~ +30 VDC, consumption 0.35 W@24VDC
- Wall-mount or magnet adsorption installation
400,00 € pro Stück
| 1–9 Stück | 400,00 € | |
|---|---|---|
| 10–30 Stück | 388,00 € | −3 % |
| ab 31 Stück | 380,00 € | −5 % |
Produktinformationen "iSN-713-MRTU Three-Axis MEMS Vibration Sensor Module, RS-485 Modbus RTU"
The iSN-713-MRTU is a compact vibration sensor module that combines a built-in three-axis MEMS accelerometer with an RS-485 interface. It is designed for condition monitoring of rotating and reciprocating plant, where a controller or host system needs regular vibration readings from a single device.
Data is read over a single RS-485 port using Modbus RTU slave commands, so the module can be polled by any Modbus RTU master. The ±8g amplitude range and 6 Hz ~ 1 kHz frequency range make it suitable for low-frequency vibration measurement on production line equipment, motors and pumps.
The module runs from a +10 ~ +30 VDC supply and can be fixed by wall-mounting or by magnet adsorption, which speeds up installation on steel machinery. It is rated for operation from -25 °C ~ +75 °C and is listed with CE, UKCA, FCC, RoHS and WEEE certification.
Applications
- Vibration monitoring system
- Factory condition monitoring of production line equipment
- Motor and pump vibration monitoring
- Real-time vibration detection at critical locations
| Product type: | Vibration sensor module |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall-mount, magnet |
Technische Daten
| Vibration Measurement | |
|---|---|
| Axes | 3 |
| Sensor Type | MEMS |
| Amplitude Range | ±8g |
| Frequency Range | 6 Hz ~ 1 kHz |
| COM Ports | |
| Ports | 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Protocol | Modbus RTU |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.35 W@24VDC |
| Mechanical | |
| Dimensions (mm) | 51 x 30 x 19 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
