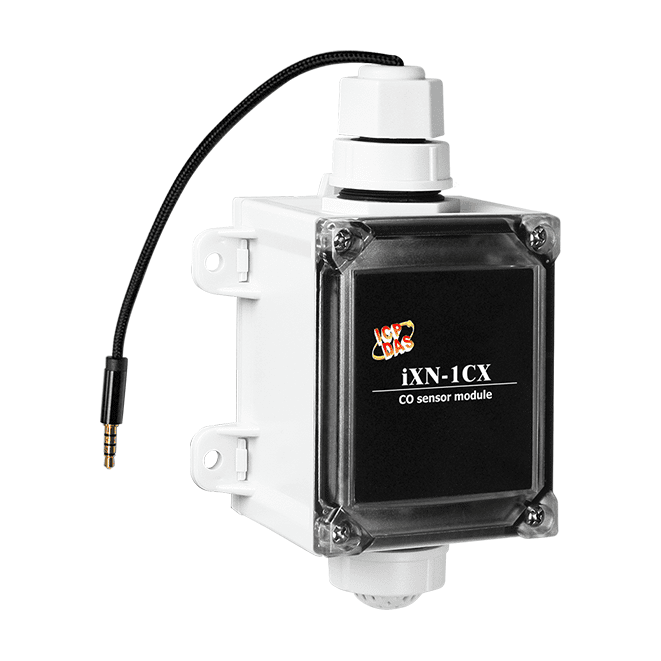

iXN-1CX iWSN CO Sensing Module, 0 to 1000 ppm, 22 cm Cable
CO sensing module for the iWSN environmental sensing platform, measuring 0 to 1000 ppm. It draws power from the host module, so no separate supply is needed.
- CO measurement from 0 ppm to 1000 ppm with 1 ppm resolution
- Powered by the iWSN environmental sensing module via the audio line, with no external power supply
- Consumption of 0.017 W
- DIN-rail, wall-mount or magnet adsorption installation
- 22 cm cable supplied
- Operating temperature 0 °C ~ +45 °C, humidity 10 ~ 95% RH non-condensing
174,00 € pro Stück
| 1–9 Stück | 174,00 € | |
|---|---|---|
| 10–30 Stück | 169,00 € | −3 % |
| ab 31 Stück | 165,00 € | −5 % |
Produktinformationen "iXN-1CX iWSN CO Sensing Module, 0 to 1000 ppm, 22 cm Cable"
iXN-1CX CR extends an iWSN environmental sensing module with carbon monoxide measurement, covering 0 ppm to 1000 ppm at a resolution of 1 ppm. It is a practical way to add CO monitoring to an existing iWSN installation without designing a separate sensing node.
The module is energised by the iWSN environmental sensing module through the audio line, so no external power supply is required. Its power consumption is 0.017 W. It is supplied with a 22 cm cable and can be fitted to a DIN-rail, mounted on a wall, or held in place by magnet adsorption, which simplifies setup and later maintenance.
Rated for an operating range of 0 °C to +45 °C and 10 to 95% RH non-condensing, the module carries CE, RoHS and WEEE certifications. Its listed application is factory environmental monitoring.
Applications
- Factory environmental monitoring system
| Product type: | CO sensing module |
|---|---|
| Power input: | Powered by iWSN host module |
| Operating temperature: | 0 ~ +45 °C |
| Mounting: | DIN-rail, wall-mount, magnet |
Technische Daten
| CO Measurement | |
|---|---|
| Range | 0 ppm to 1000 ppm |
| Resolution | 1 ppm |
| Power | |
| Consumption | 0.017 W |
| Input Type | iWSN environmental sensing module provides power through the audio line. |
| Mechanical | |
| Dimensions (mm) | 91 x 131 x 55 (W x L x H) |
| Installation | DIN-Rail or Wall-mount or magnet adsorption |
| Cable Length | 22 cm |
| Environment | |
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | 30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
