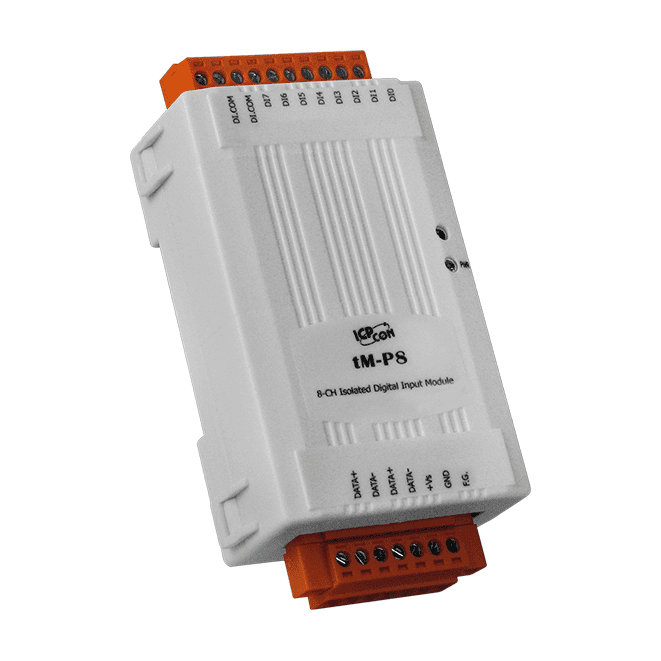

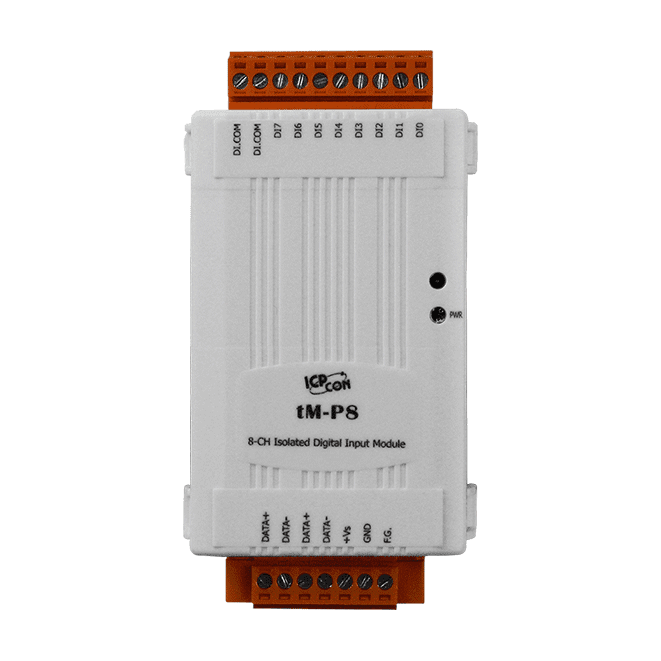

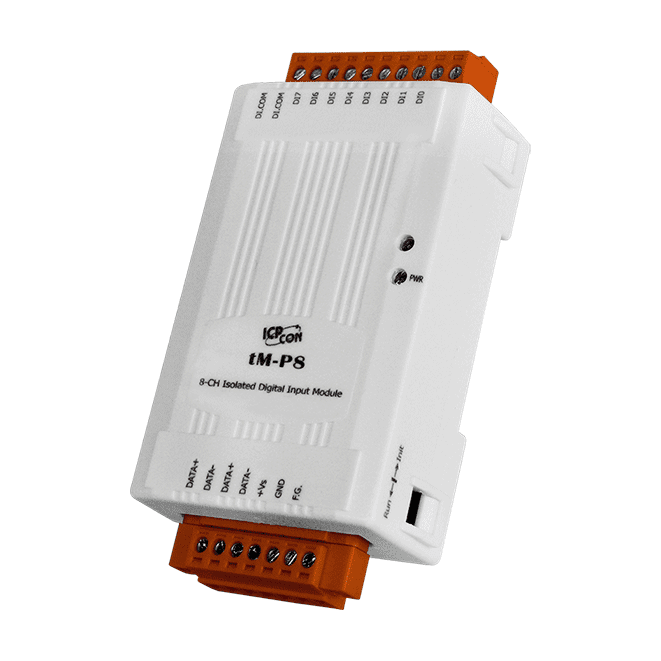

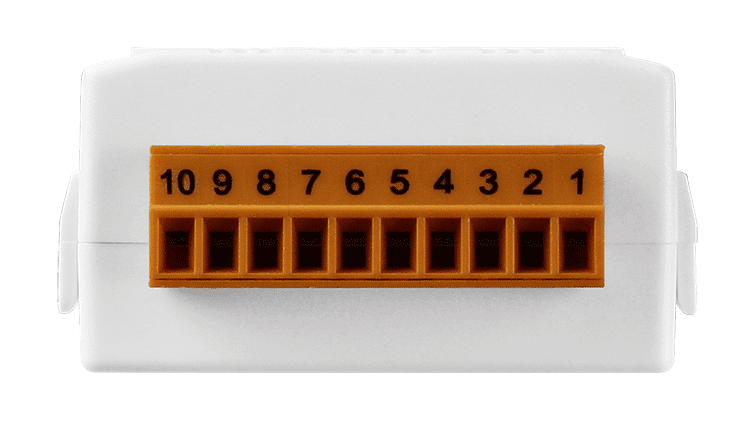

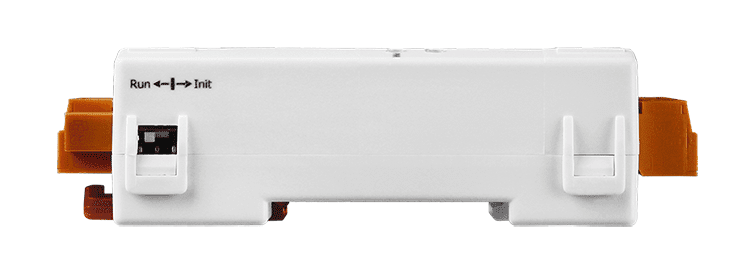

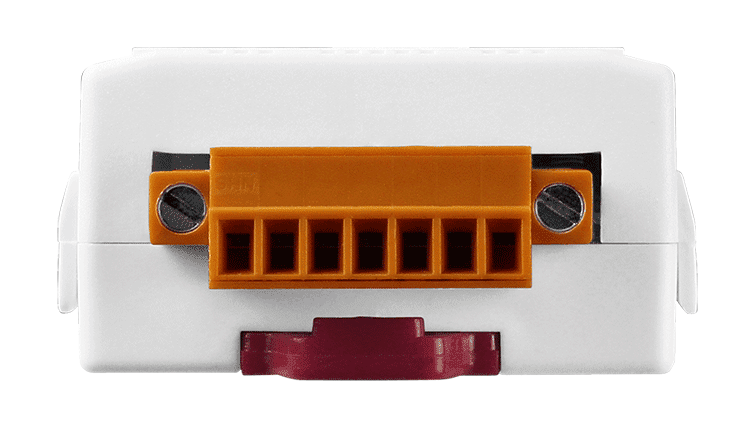

tM-P8 8-Channel Isolated Wet-Contact DI Module, RS-485 Modbus RTU
8-channel photocoupler-isolated wet-contact digital input module with an RS-485 interface, 16-bit counters and dual watchdog, for DIN-rail mounting.
- Eight photocoupler-isolated digital inputs with 3750 VDC intra-module isolation
- Sink- or source-type operation selected through wiring
- Dry or wet contact mode selectable via wire connections
- All channels usable as 16-bit counters (max. 65535) at 100 Hz
- Single RS-485 port supporting DCON, Modbus RTU and Modbus ASCII at 1200 ~ 115200 bps
- Programmable dual watchdog covering module and communication
106,00 € pro Stück
| 1–9 Stück | 106,00 € | |
|---|---|---|
| 10–30 Stück | 102,00 € | −4 % |
| ab 31 Stück | 100,00 € | −6 % |
Produktinformationen "tM-P8 8-Channel Isolated Wet-Contact DI Module, RS-485 Modbus RTU"
The tM-P8 CR is an RS-485 remote I/O module that brings eight isolated digital inputs into a DCON or Modbus network. Each channel is photocoupler-isolated, which helps keep field wiring electrically separate from the control side, and the module provides 3750 VDC intra-module isolation and 4 kV ESD protection.
Channels accept source- or sink-type wiring, and the dry or wet contact mode is set through wire connections, so one module can suit a range of field devices. Every input can also operate as a 16-bit counter with a maximum count of 65535 and a frequency of 100 Hz, which makes the module suitable for pulse counting and on/off monitoring.
- Eight digital inputs with a wet-contact input type
- Dual watchdog for module and communication supervision
- Powered from a 10 ~ 30 VDC terminal block with reverse polarity protection
Applications
- All types of on/off control
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage systems
- Semiconductor fabrication
- Control systems
| Product type: | Digital input module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus ASCII, Modbus RTU |
| Digital inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +50 VDC |
| OFF Voltage Level | +1 VDC max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | ±70 VDC |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol | DCON, Modbus RTU, Modbus ASCII |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.2 W max. |
| Powered from Terminal Block | 10 ~ 30 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
