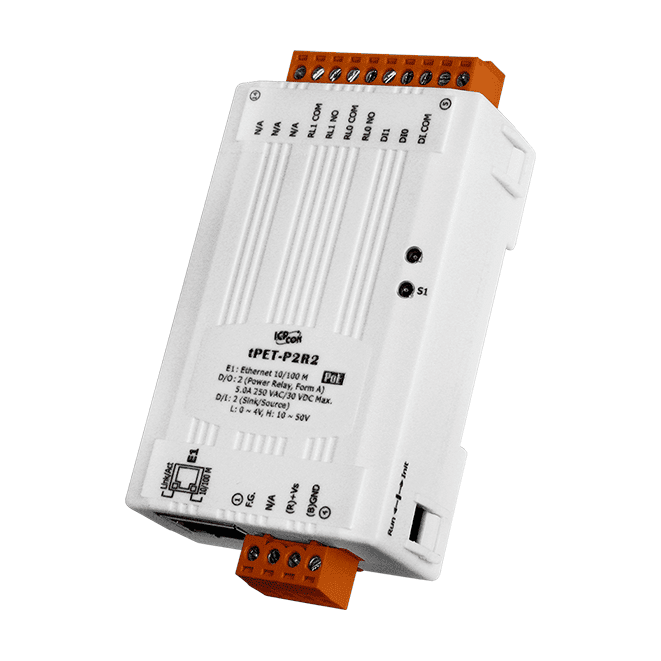

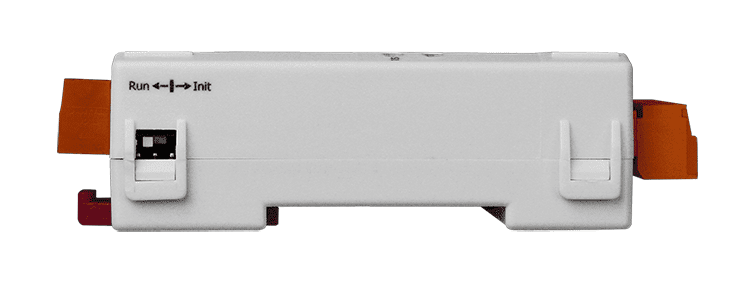

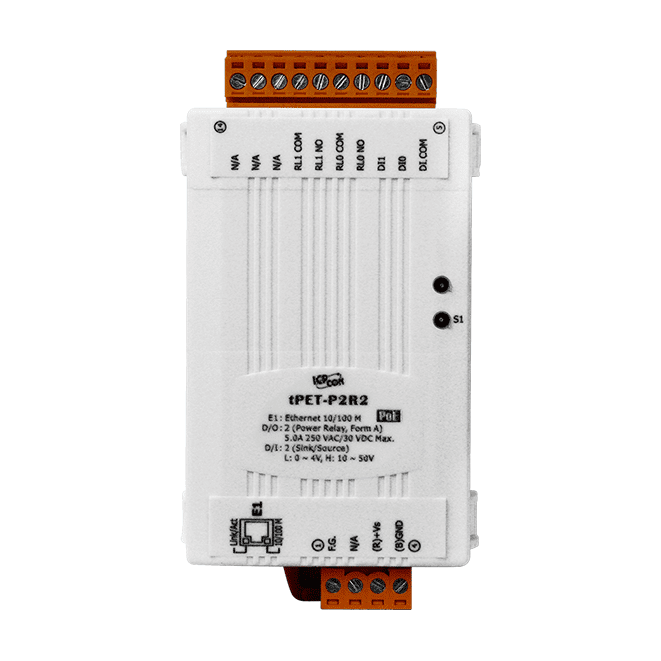

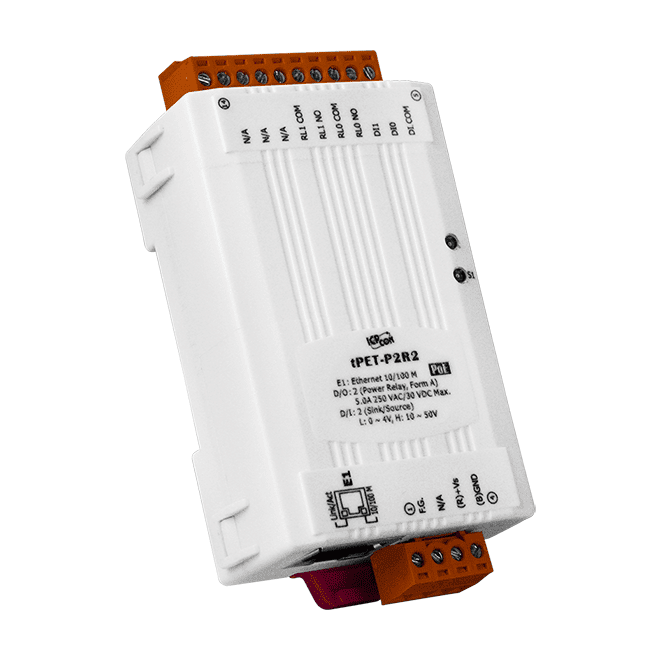

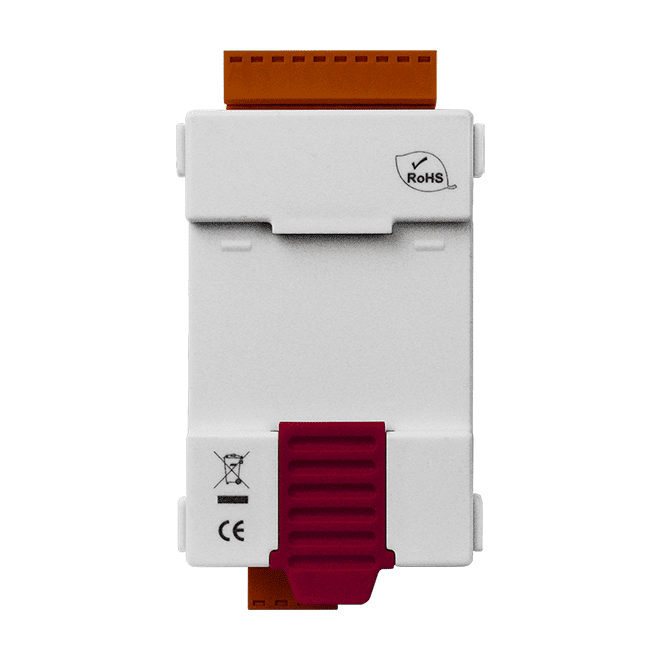

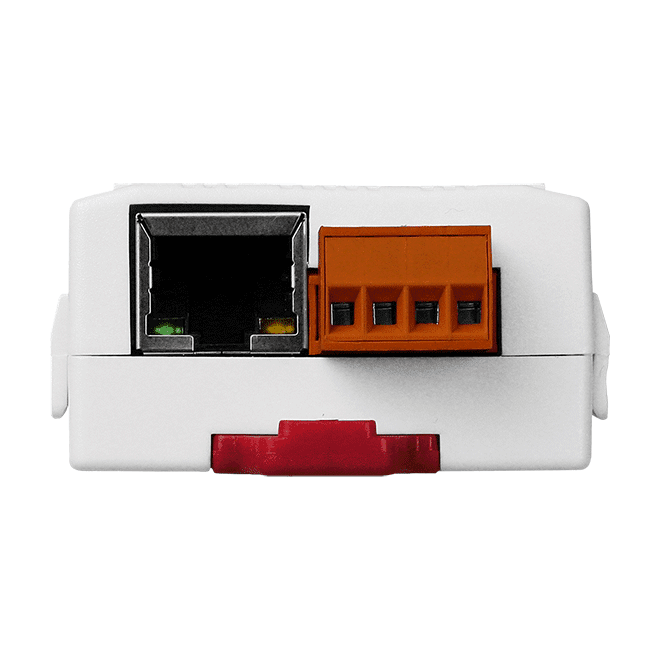

tPET-P2R2 PoE Ethernet I/O Module, 2-ch Wet DI and 2-ch Power Relay
Tiny PoE Ethernet I/O module with two wet-contact digital inputs and two Form A power relay outputs, controlled over Modbus TCP/UDP or MQTT.
- Two wet-contact digital inputs with sink/source wiring, 32-bit counters and frequency measurement up to 3.5 kHz (without filter)
- Two Form A (SPST N.O.) power relay outputs rated 5.0 A per channel at 25 °C
- Modbus TCP and Modbus UDP plus MQTT support, with password and IP filter access control
- Built-in web server for configuration and firmware updates via Ethernet
- Dual-watchdog: CPU watchdog plus host watchdog with predefined safe output values
- PoE (IEEE 802.3af, Class 1) with redundant +12 to +48 VDC terminal block power input
107,00 € pro Stück
| 1–9 Stück | 107,00 € | |
|---|---|---|
| 10–30 Stück | 104,00 € | −3 % |
| ab 31 Stück | 102,00 € | −5 % |
Produktinformationen "tPET-P2R2 PoE Ethernet I/O Module, 2-ch Wet DI and 2-ch Power Relay"
tPET-P2R2 CR is a compact Ethernet I/O module for monitoring and switching digital signals over IP. It pairs two wet-contact digital inputs with two power relay outputs, and it can be configured and monitored through its built-in web server. Modbus TCP connects it directly to HMI, SCADA, PLC and other software systems.
The module offers a dual-watchdog arrangement: a CPU watchdog that resets the unit if the firmware misbehaves, and a host watchdog that moves the outputs to a predefined safe value if the controlling PC or PLC fails. Power-on and safe values can be set for the digital outputs. The 2-ch DI supports latched input, 32-bit counters and frequency measurement, and DI-to-DO pair connection over Ethernet is available for direct device-to-device control.
Power can be supplied by PoE (IEEE 802.3af, Class 1) over a standard Category 5 cable, or from a +12 to +48 VDC terminal block input where no PoE switch is present. The module mounts on DIN rail, measures 52 x 95 x 27 mm and operates from -25 to +75 °C, making it suitable for installation in control cabinets and machine enclosures.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 2 |
| Relay outputs: | 2 |
| Ports: | 1 x RJ-45, 10/100 Base-TX |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Isolation: | 3750 Vrms (DI), 3000 Vrms (relay) |
| Power input: | PoE or +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Isolation | 3750 Vrms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Relay Output | |
| Channels | 2 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5.0 A/channel at 25°C |
| Operate Time | 6 ms |
| Release Time | 3 ms |
| Electrical Endurance | 5 A 250 VAC 30,000 ops (10 ops/minute) at 75 °C 5 A 30 VDC 70,000 ops (10 ops/minute) at 75 °C 5 A 250 VAC/30 VDC 6,000 ops 3 A 250 VAC/30 VDC 100,000 ops |
| Mechanical Endurance | 20,000,000 ops. At no load (300 ops./minute) |
| Isolation | 3000 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.0 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
