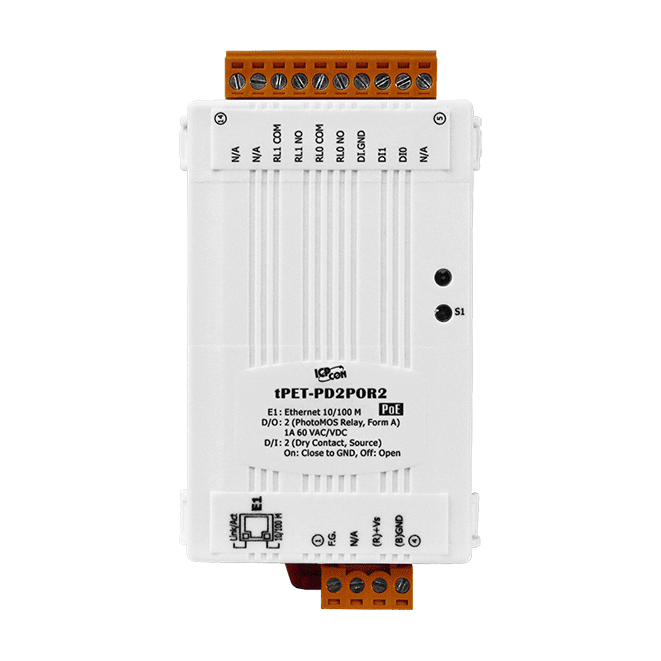

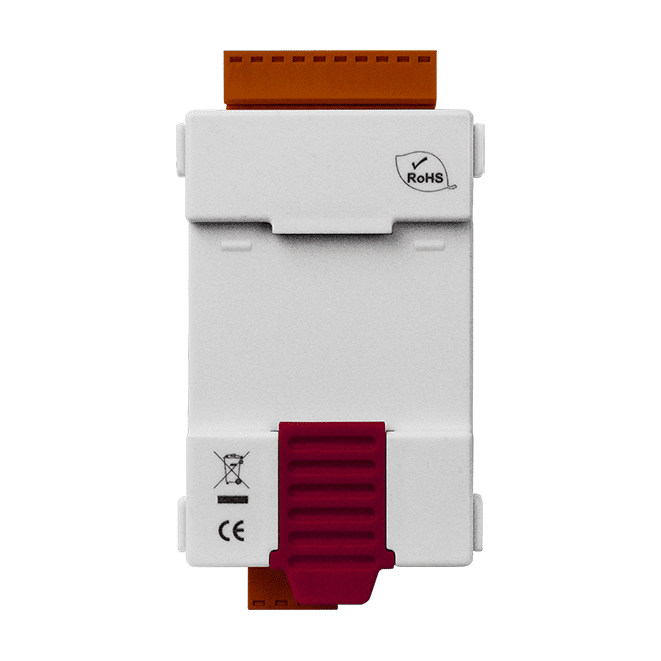

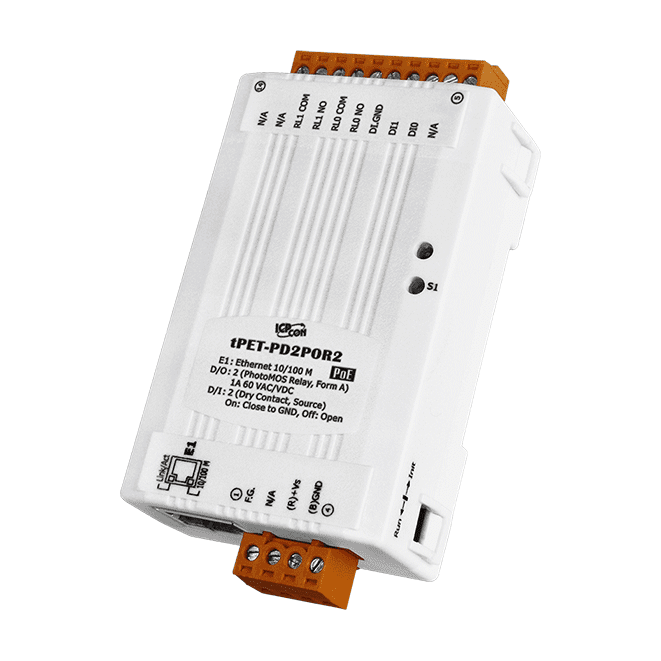

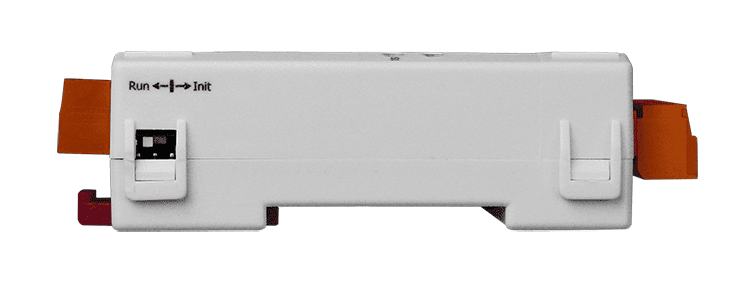

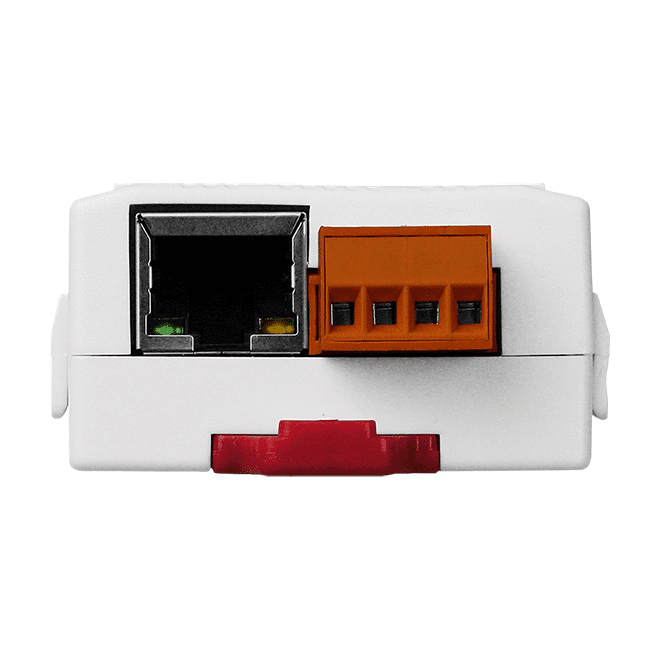

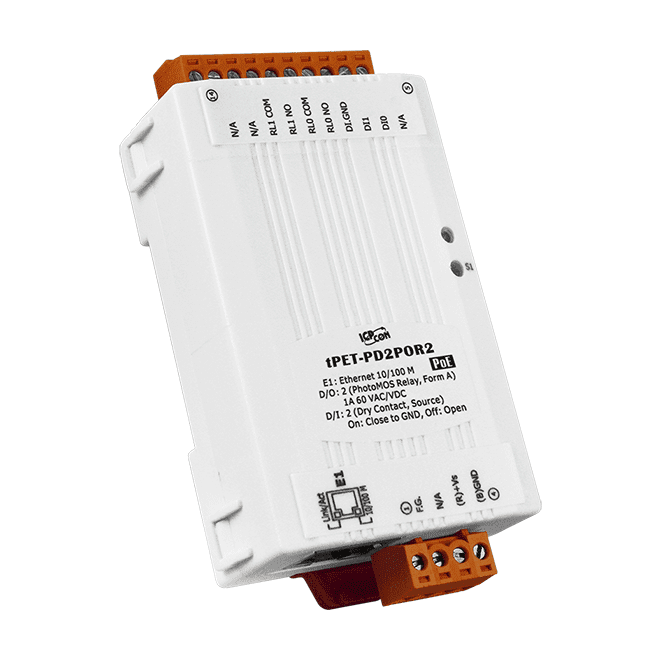

tPET-PD2POR2 PoE Ethernet I/O Module, 2-ch DI and 2-ch PhotoMOS Relay
Tiny PoE Ethernet I/O module with 2 dry-contact digital inputs and 2 PhotoMOS relay outputs, controlled over Modbus TCP/UDP and MQTT.
- Two dry-contact DI channels with latched DI, 32-bit counters and frequency measurement up to 3.5 kHz without filter
- Two PhotoMOS relay Form A outputs with DO power-on value and Safe Value settings
- Modbus TCP, Modbus UDP and MQTT protocol support
- DI-to-DO pair connection (push and pull) over Ethernet
- Redundant power: PoE (IEEE 802.3af, Class 1) or +12 to +48 VDC terminal block
- Dual watchdog: CPU and host watchdog for fault recovery
121,00 € pro Stück
| 1–9 Stück | 121,00 € | |
|---|---|---|
| 10–30 Stück | 117,00 € | −3 % |
| ab 31 Stück | 115,00 € | −5 % |
Produktinformationen "tPET-PD2POR2 PoE Ethernet I/O Module, 2-ch DI and 2-ch PhotoMOS Relay"
The tPET-PD2POR2 CR is a compact Ethernet I/O module that combines two dry-contact digital inputs with two PhotoMOS relay outputs. It is suited to engineers who need remote monitoring and switching over a 10/100 Base-Tx network without the footprint of a larger controller. The module is configured through its built-in web server and supports Modbus TCP, Modbus UDP and MQTT.
Power can come from PoE (IEEE 802.3af, Class 1) over a standard Category 5 cable, or from a +12 to +48 VDC terminal block input, giving a redundant supply arrangement. Two dual-watchdog functions are provided: a CPU watchdog that resets the system if the firmware misbehaves, and a host watchdog that drives outputs to their configured Safe Value if the host controller fails.
Input features include latched DI, 32-bit counters and frequency measurement, with a 3.5 kHz maximum frequency without filter. A DI-to-DO pair connection can be configured over Ethernet, allowing the module to poll local inputs and write to a remote output device in the background.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 2 |
| Relay outputs: | 2 |
| Ports: | 1 x RJ-45, 10/100 Base-TX |
| PoE: | Yes, IEEE 802.3af, Class 1 |
| Isolation: | DI 3750 Vrms, Relay 3000 Vrms |
| Power input: | PoE, +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Effective Distance | 500m (max.) |
| Isolation | 3750 Vrms |
| Relay Output | |
| Channels | 2 |
| Type | PhotoMOS Relay, Form A |
| Contact Rating | 60V/1.0A (Operating Temperature -25 to +40°C) 60V/0.8A (Operating Temperature +40 to +60°C) 60V/0.7A (Operating Temperature +60 to +75°C) |
| Operate Time | 1.3 ms (Typical) |
| Release Time | 0.1 ms (Typical) |
| Electrical Endurance | Long Life and No Sparking |
| Isolation | 3000 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.0 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
