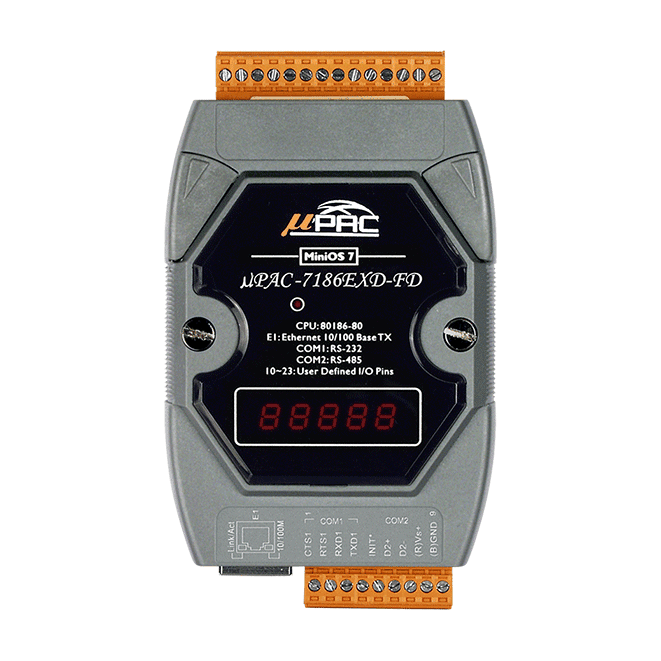

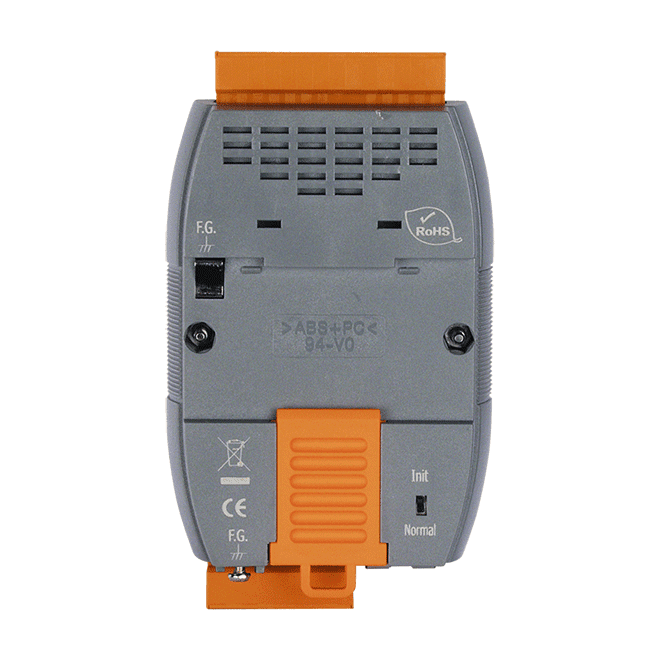

uPAC-7186EXD-FD-G Ethernet PAC with MiniOS7, 80186 CPU and 64MB NAND Flash
Compact Ethernet programmable automation controller running MiniOS7, with RS-232 and RS-485 serial ports, 10/100 Base-TX Ethernet and an I/O expansion bus for X-boards.
- Built-in MiniOS7 framework with C language software development tool kits
- 10/100 Base-TX Ethernet (RJ-45) plus one RS-232 and one RS-485 port, up to 115200 bps
- 512 KB Flash, 16 KB EEPROM, 64 MB NAND Flash and 512 KB SRAM
- Standard Modbus communication with SCADA software
- I/O expansion bus supporting one X-board
- 5-digit 7-segment LED display with System and PoE status LEDs
327,00 € pro Stück
| 1–9 Stück | 327,00 € | |
|---|---|---|
| 10–30 Stück | 317,00 € | −3 % |
| ab 31 Stück | 311,00 € | −5 % |
Produktinformationen "uPAC-7186EXD-FD-G Ethernet PAC with MiniOS7, 80186 CPU and 64MB NAND Flash"
uPAC-7186EXD-FD-G CR is a programmable automation controller built around an 80186-80 CPU and the MiniOS7 framework from ICP DAS. It bridges serial devices to Ethernet, letting engineers connect RS-232 and RS-485 equipment to a network with minimal development effort.
The unit combines a 10/100 Base-TX Ethernet port with one RS-232 and one RS-485 port, and offers 512 KB of Flash, 16 KB of EEPROM and 64 MB of NAND Flash for program and data storage. Application code is written in C using the supplied development tool kits, and the standard Modbus protocol allows it to communicate with common SCADA packages.
Hardware can be extended through the I/O expansion bus, which accepts a single X-board, selected from the more than 50 boards listed for this controller. A 5-digit 7-segment LED display, a watchdog timer and a 64-bit hardware serial number support local status indication and system reliability.
Applications
- Connecting serial devices to Ethernet and Internet networks
- Modbus-based data exchange with SCADA systems
- Serial-to-Ethernet control and data acquisition with hardware expansion via X-board
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 3 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NAND Flash | 64 MB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System 1 x PoE |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
