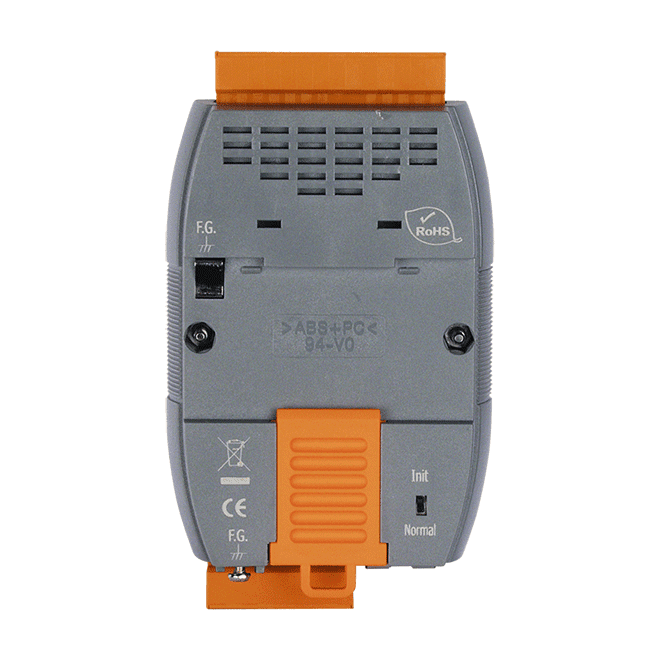

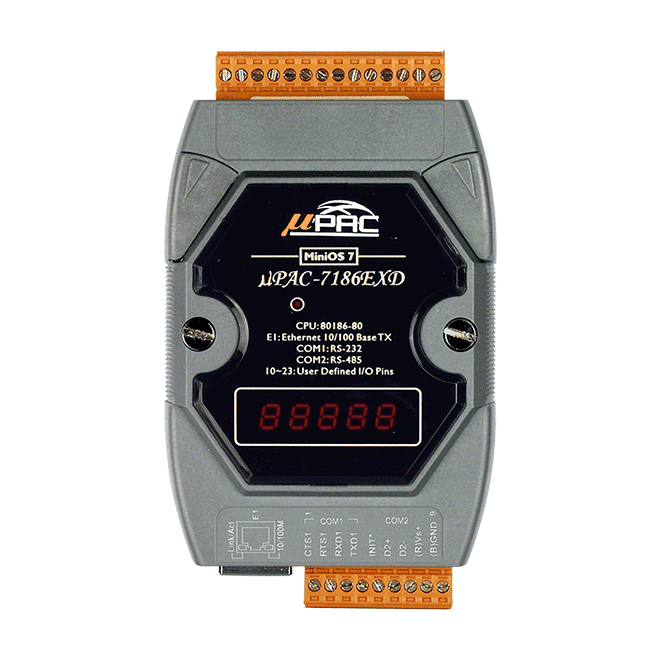

uPAC-7186EXD-G Ethernet PAC, MiniOS7 and 5-Digit LED Display
Palm-size Ethernet programmable automation controller with an 80 MHz 80186-class CPU, MiniOS7 framework, RS-232/RS-485 ports and a 5-digit 7-segment LED display.
- Built-in MiniOS7 framework with C language software development tool kits
- 1 x RJ-45 10/100 Base-TX Ethernet port
- 1 x RS-232 and 1 x RS-485 serial port, up to 115200 bps
- 512 KB flash, 512 KB SRAM and 16 KB EEPROM
- I/O expansion bus interface for one X-board
- 5-digit 7-segment LED display and 1 x system status LED
293,00 € pro Stück
| 1–9 Stück | 293,00 € | |
|---|---|---|
| 10–30 Stück | 284,00 € | −3 % |
| ab 31 Stück | 278,00 € | −5 % |
Produktinformationen "uPAC-7186EXD-G Ethernet PAC, MiniOS7 and 5-Digit LED Display"
The uPAC-7186EXD-G CR is a palm-size programmable automation controller that brings serial devices onto Ethernet. Its built-in MiniOS7 framework and C language development tool kits let engineers add Ethernet and Internet communication to RS-232 or RS-485 equipment without building the networking layer themselves. This gray cover version carries the same controller hardware as the standard unit.
Software support includes Modbus libraries, so connected devices can be exposed through the standard Modbus protocol to SCADA packages such as Indusoft, DasyLab, Citect and iFix. Storage comprises 512 KB of flash and 16 KB of EEPROM, and a 5-digit 7-segment LED display gives local status readout.
An I/O expansion bus accepts one X-board for added analogue, digital or serial I/O. The unit is powered from +10 ~ 30 VDC, draws 2.5 W, and is designed for DIN-rail mounting over an operating range of -25 ~ +75 °C.
Applications
- Connecting serial RS-232/RS-485 devices to Ethernet networks
- Modbus communication with SCADA and HMI software
- Standalone control and data handling in automation panels
- Hardware expansion through the I/O expansion bus
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 3 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
