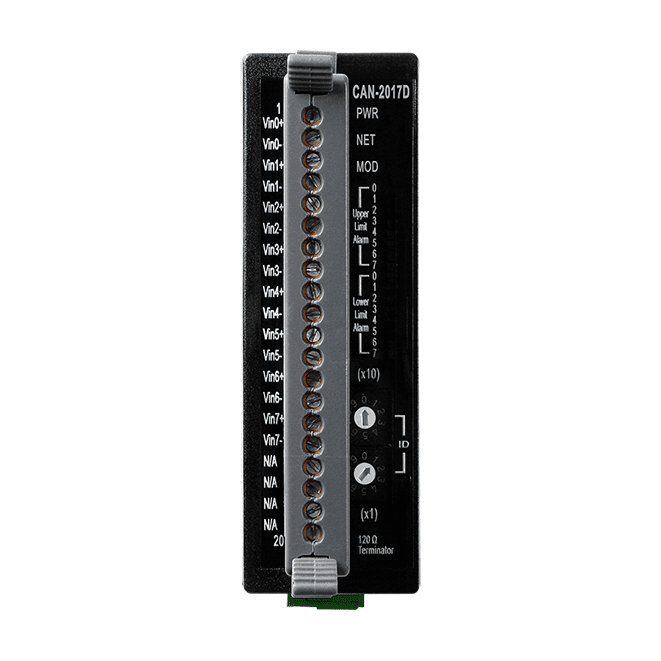

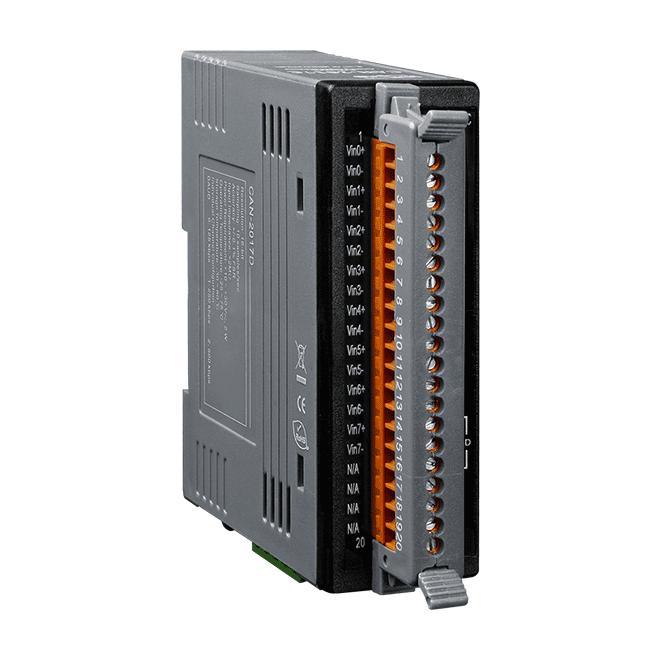

CAN-2017D DeviceNet Slave Analog Input Module, 8-ch Differential
Eight-channel differential analog input module with a DeviceNet Group 2 slave interface, 16-bit resolution and ranges from ±150 mV to ±20 mA. Supports polled, bit-strobe and explicit messaging.
- Eight differential analog input channels with 16-bit resolution and individual channel configuration
- Input ranges of ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV and ±20 mA (±20 mA needs an external 125 Ω resistor)
- DeviceNet Group 2 Only Server (non UCMM-capable) with predefined master/slave connection set
- One connection each for explicit messaging, polled I/O and bit-strobe I/O
- Heartbeat and shutdown message support
- EDS file provided for DeviceNet master interface configuration
302,00 € pro Stück
| 1–9 Stück | 302,00 € | |
|---|---|---|
| 10–30 Stück | 293,00 € | −3 % |
| ab 31 Stück | 287,00 € | −5 % |
Produktinformationen "CAN-2017D DeviceNet Slave Analog Input Module, 8-ch Differential"
The CAN-2017D brings eight differential analog inputs onto a DeviceNet network as a general I/O slave. Input status can be read and the channel configuration set over the network, using the EDS file supplied for the DeviceNet master, so the module can be commissioned without custom firmware.
It acts as a Group 2 Only Server (non UCMM-capable) and uses the predefined master/slave connection set, with one connection each for explicit messaging, polled I/O and bit-strobe I/O. Heartbeat and shutdown messages are supported. The manufacturer lists communication with Allen-Bradley 193-DNENCAT and 193-DNENCATR gateways and several OMRON DeviceNet masters.
- Operating temperature -25 ~ +75 ℃, DIN-rail mounted, supplied from +10 VDC to +30 VDC
Applications
- Industrial machine control
- Factory automation
- Remote data acquisition
- Environmental monitoring
- Packaging machine control
- Medical equipment control
- Aircraft engine monitoring
| Product type: | Analog Input Module |
|---|---|
| Interface: | DeviceNet |
| Protocol: | DeviceNet |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Technische Daten

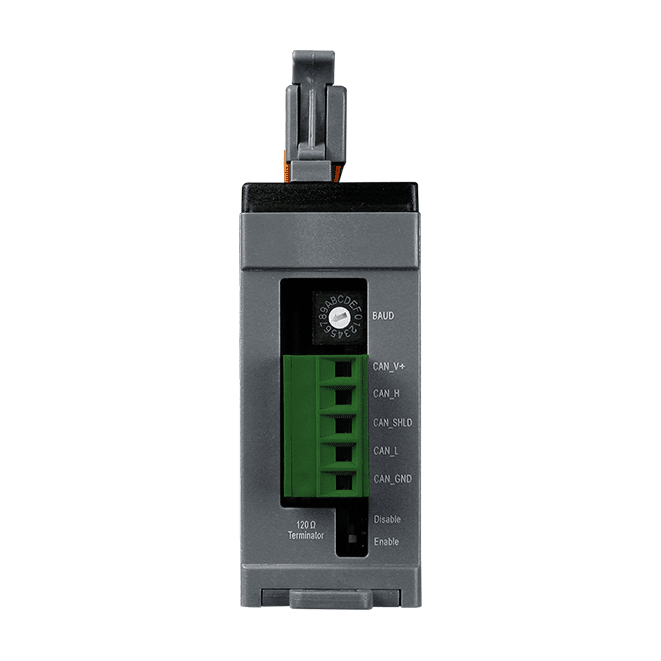

| LED Indicators | |
|---|---|
| Status | 1 x Power 2 x DeviceNet status |
| Analog Input | |
| Channels | 8 Differential |
| Sensor Type | ±10V, ±5V, ±1V, ±500mV, ±150mV, ±20mA,( External 125 Ohm Resistor Required) |
| Resolution | 16-bit |
| Accuracy | ±0.1% FSR |
| Sampling Rate | 10 Samples/Sec. (Total) |
| Input Impedance | >2 MΩ |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Zero Drift | ±10 μV/ °C |
| Span Drift | ±25 ppm/ °C |
| Intra-module Isolation | 3000 VDC |
| DeviceNet | |
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O |
| Baud Rate | 125 kbps, 250 kbps, 500 kbps |
| Terminal Resistor | Switch for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5 |
| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Heartbeat Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 33 x 99 x 78 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
