PROFINET

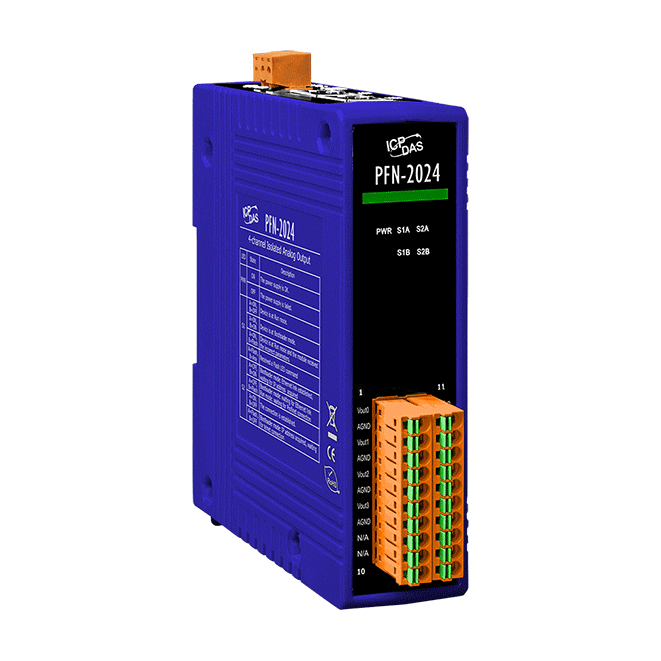

The PFN-2024 CR adds four isolated analogue outputs to a PROFINET network as an IO Device. Each channel is isolated at 1500 VDC and can be set to a current or voltage range to suit the connected field device, from 0~20mA and 4~20mA through to 0~10V, +/-10V, 0~5V and +/-5V.Engineers can integrate the module using the generic GSDML file (Version 2.25) in any PROFINET engineering tool. It supports Conformance Class B and RT Class 1, with a minimum cyclic time of 1 ms, and includes common Ethernet and PROFINET services such as DCP, LLDP and I&M.With a 16-bit DAC, accuracy of +/- 0.1% of FSR and 4 kV contact ESD protection on all terminals, the PFN-2024 CR suits analogue output control in factory and process automation. It mounts on DIN-rail and operates from -25 ~ +75 ℃.ApplicationsIndustrial AutomationFactory AutomationProcess Automation

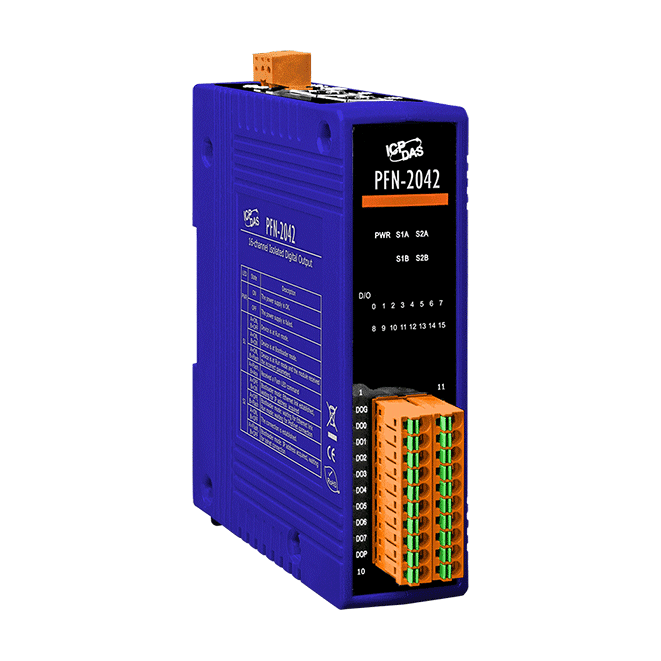

The PFN-2042 CR is a PROFINET IO Device that adds 16 isolated digital outputs to a PROFINET network. Each channel is a sink-type NMOS output rated up to 700 mA per channel, with a load voltage range of +3.5 ~ +50 VDC, so it can switch a wide range of field actuators and indicators directly.Engineers can integrate the module using the generic GSDML file (Version 2.25), which works with any PROFINET engineering tool. It supports a cyclic time of 1 ms (minimum) and conforms to PROFINET Conformance Class B and RT Class 1, with services including RTC, RTA, CL-RPC, DCP, LLDP and I&M.Short-circuit protection on the digital output channels and 4 kV contact ESD protection on every terminal help the module stay robust in demanding installations. The unit mounts on a DIN-rail and is rated for an operating temperature of -25 ~ +75 ℃.ApplicationsIndustrial automationFactory automationProcess automation

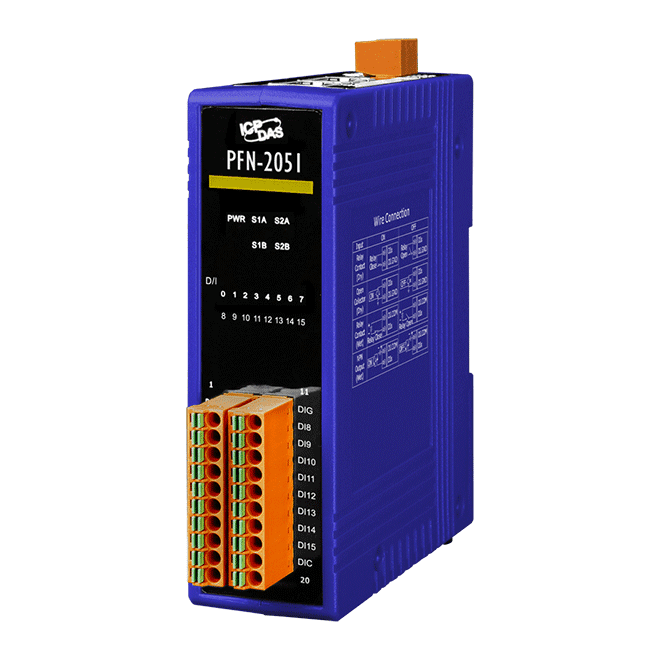

PFN-2051 CR is a PROFINET IO Device for distributed digital sensing. It provides 16 isolated digital inputs that accept both dry and wet contacts, making it suitable for connecting switches, relays and sensor outputs to a PROFINET controller.The module supports PROFINET Conformance Class B and RT Class 1, with a cyclic time of 1 ms (min). Configuration is handled through the generic GSDML file (Version 2.25), so the module can be added to any PROFINET engineering tool without vendor-specific software.Wet contact ON level +10 to +50 VDC, OFF level +4 VDC max.Dry contact input closes to GNDSink/Source input type4 kV contact ESD protection on any terminalApplicationsIndustrial automationFactory automationProcess automation

PFN-2052 CR is a PROFINET IO Device that brings eight isolated digital inputs onto a PROFINET network. It suits factory and process automation installations where discrete field signals need to be read over Ethernet.The inputs are wet-contact type, with an ON level of +4 VDC to +30 VDC and an OFF level of +1 VDC maximum. Both sink and source wiring are supported. The module offers a cyclic time of 1 ms minimum and meets PROFINET Conformance Class B and RT Class 1.Integration is straightforward: a generic GSDML file (version 2.25) is provided, so the module can be added to any PROFINET engineering tool. It is DIN-rail mounted and rated for an operating temperature of -25 ~ +75 ℃.ApplicationsIndustrial automationFactory automationProcess automation

The PFN-2053 CR adds 16 dry contact digital inputs to a PROFINET network as an IO Device. The inputs are non-isolated and use a source-type arrangement, with ON detected when a contact closes to GND and OFF when it is open. Its minimum cyclic time of 1 ms suits applications that need fast, deterministic updates of switch and contact status.Engineers can integrate the module using the generic GSDML file (Version 2.25), which works with any PROFINET engineering tool. Each terminal carries 4 kV contact ESD protection, and the unit supports PROFINET Conformance Class B and RT Class 1. Diagnostics are available through PWR, S1A, S1B, S2A and S2B LED indicators.Suited to factory and process automation installationsMounts on DIN-rail with an operating range of -25 ~ +75 ℃ApplicationsIndustrial AutomationFactory AutomationProcess Automation

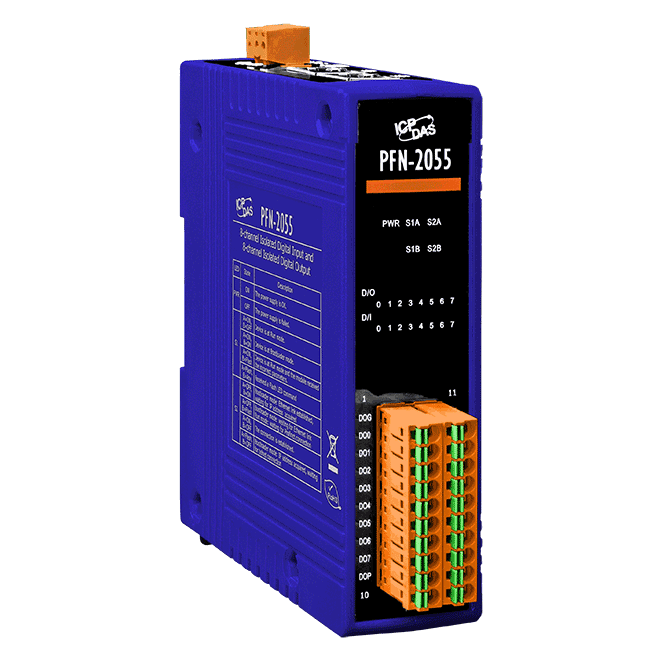

The PFN-2055 CR connects an 8-channel digital input and 8-channel digital output block to a PROFINET network as an IO Device. Each input accepts dry or wet contacts, and each output is an open-collector sink with short-circuit protection, so it can switch field loads directly within its voltage and current ratings.Configuration uses the generic GSDML file (version 2.25), so the module can be added and parameterised from any PROFINET engineering tool. With Conformance Class B, RT Class 1 and a minimum cycle time of 1 ms, it suits applications that need deterministic cyclic I/O exchange.The module is rated for an operating temperature of -25 ~ +75 ℃ and mounts on DIN-rail. Ordering code PFN-2055 CR is the version offered here.ApplicationsIndustrial automationFactory automationProcess automation

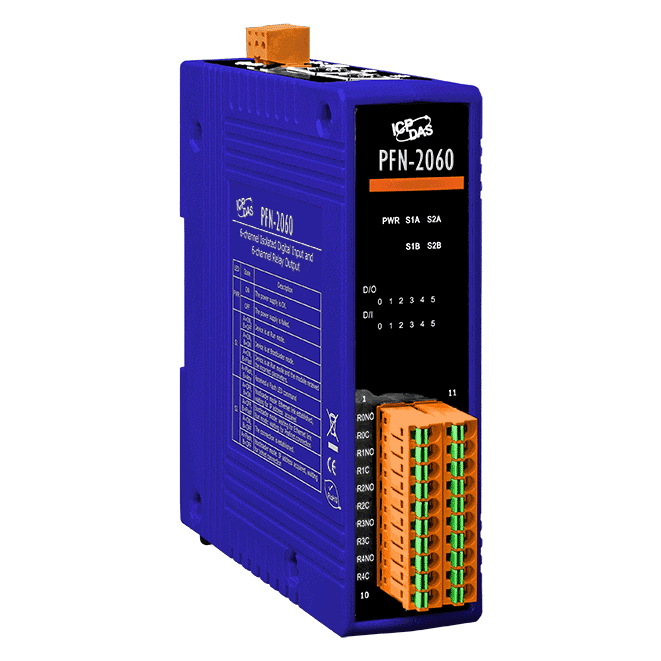

The PFN-2060 CR is a PROFINET IO device for distributed discrete control. It combines six isolated digital inputs, which accept both dry and wet contacts, with six Form A power relay outputs, so one compact DIN-rail module can both sense field signals and switch loads.Integration is straightforward because the module is configured through its generic GSDML file, version 2.25, which can be loaded into any PROFINET engineering tool. Conformance Class B and RT Class 1 support cyclic times down to 1 ms, and the module can be set to hold power-on or safe output values.Conformance Class B and RT Class 1 for deterministic PROFINET communicationRelay ratings of 125 VAC at 0.6 A, 30 VDC at 2 A and 110 VDC at 0.6 AOperating temperature range of -25 ~ +75 ℃ with 10 ~ 90% RH non-condensing humidity limitApplicationsIndustrial automationFactory automationProcess automation
