Windows PACs

The AXP-9051-IoT is a metal standard programmable automation controller running Windows 10 IoT Enterprise LTSC (64-bit). It brings computing, I/O and operator interface together in one housing, which suits projects that need HMI, data acquisition and control in a single PAC.An Intel Core i5-8365UE processor is paired with 16 GB DDR4 SDRAM and a 128 GB SATA III SSD, with a CFast card slot for additional storage. The platform can run Universal Windows apps and traditional Windows applications side by side. Connectivity includes dual 10/100/1000 Base-TX Ethernet ports, VGA and HDMI display outputs, USB 2.0 and USB 3.0 ports, and isolated RS-232 and RS-485 serial ports. Remote I/O can be added using the manufacturer's Ethernet and RS-485 I/O modules.Reliability features include a dual watchdog timer, a redundant power input with an alarm relay, and a CPU heat sink with a Smart Fan. The unit operates from -25 ~ +60 °C and supports DIN-rail or wall mounting. This ordering code is listed as RoHS compliant and carries CE, UKCA and WEEE marking.ApplicationsFactory AutomationAutomated Test EquipmentSmart TransportationIIoTInduSoftLabVIEWWireless

AXP-9191-IoT is a Windows-based programmable automation controller for engineers who want HMI, data acquisition and control in a single compact unit. An Intel Atom E3950 processor, 8 GB DDR4 memory and a 128 GB SSD run Windows 10 IoT Enterprise LTSC (64-bit), so existing Windows software and Universal Windows apps can run side by side.One local expansion slot accepts I-9K, I-97K and e-9K series I/O modules. Remote I/O can be added through Ethernet I/O modules and RS-485 I/O modules. The front panel provides VGA and HDMI display outputs, a buzzer, a 10-position rotary switch and programmable LEDs for local operator feedback.Connectivity includes two 10/100/1000M Ethernet ports, two USB 2.0 and two USB 3.0 ports, and isolated COM ports for RS-232 and RS-485. Redundant power inputs with an alarm relay help protect continuous operation, and the unit is rated for DIN-rail or wall mounting with a fanless, CPU heat sink cooling design.ApplicationsIntegrating HMI, data acquisition and control in one PACLocal and remote I/O expansion for machine and process controlDeployment in harsh industrial environments

The AXP-9251-IoT is a Windows 10 IoT based PAC for engineers who want HMI, data acquisition and control in a single enclosure. An Intel Core i5-8365UE processor, 16 GB DDR4 memory and a 128 GB SSD provide the computing base, while two local I/O expansion slots accept I-9K, I-97K and e-9K series modules.The unit runs Windows 10 IoT Enterprise LTSC (64-bit), so Universal Windows apps and traditional Windows applications can run side by side. Display output is provided by VGA and HDMI, and the front panel includes a buzzer, a 10-position rotary switch and a power switch.Remote expansion is possible through Ethernet I/O modules and RS-485 I/O modules. Connectivity includes dual 10/100/1000M Ethernet ports, four COM ports with 3000 VDC isolation, and 2 x USB 2.0 and 2 x USB 3.0 ports. The redundant power input accepts +19 ~ 30 VDC.ApplicationsGigE Vision cameraUSB Vision cameraHigh speed data acquisitionVibrationMulti-serial portsInduSoftLabVIEWCAN busMotionWireless

The AXP-9391-IoT CR is a Windows-based programmable automation controller that brings computing, I/O and HMI together in a single metal housing. It suits projects where local visualisation, data acquisition and control need to sit on one device rather than being spread across separate units.Three I/O expansion slots accept local modules from the I-9K, I-97K and e-9K series. Remote expansion is also possible through Ethernet I/O modules and RS-485 I/O modules, giving engineers a flexible route to distributed I/O. The unit runs Windows 10 IoT Enterprise LTSC (64-bit), so Universal Windows apps and traditional Windows applications can run side by side, and it is specified for use in harsh environments.Connectivity includes dual 10/100/1000M Ethernet ports, VGA and HDMI display outputs, USB 2.0 and USB 3.0 ports, and a mix of RS-232 and RS-485 serial interfaces with 3000 VDC isolation. The CR variant is described as RoHS compliant.ApplicationsHMI and operator interfaceData acquisitionControl and I/O integrationHarsh environment deployment

AXP-9651-IoT is a Windows-based PAC that brings controller, I/O and operator interface into a single metal unit. It suits projects where HMI, data acquisition and control need to share one device in the same enclosure.The unit is built around an Intel Core i5-8365UE processor with 16 GB DDR4 SDRAM and a 128 GB SATA III SSD. It runs Windows 10 IoT Enterprise LTSC (64-bit) and can host Universal Windows apps and traditional Windows applications side by side. Six slots accept I-9K, I-97K and e-9K series I/O modules locally, while remote expansion is possible with Ethernet and RS-485 I/O modules.Connectivity includes two 10/100/1000M Ethernet ports, VGA and HDMI display outputs, two USB 2.0 and two USB 3.0 ports, and a set of isolated serial ports covering RS-232, RS-485 and combined RS-232/RS-485. The CR ordering code corresponds to the RoHS-listed configuration of this model.ApplicationsGigE Vision camera systemsUSB Vision camera systemsHigh-speed data acquisitionVibration monitoringMulti-serial port communicationInduSoft HMI projectsLabVIEW applicationsCAN busMotion controlWireless connectivity

AXP-9791-IoT is a Windows-based PAC that brings computing, control I/O and an operator interface into one 7-slot metal unit. It runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3950 processor, so HMI, data acquisition and control can be integrated in a single device.Local I/O uses I-9K, I-97K and e-9K series modules in the expansion slots, while remote expansion is possible with Ethernet and RS-485 I/O modules. Connectivity includes two 10/100/1000 Mbps Ethernet ports, VGA and HDMI display outputs, USB, RS-232 and RS-485. Universal Windows Apps and traditional Windows applications can run side by side.The unit is fanless with a CPU heat sink, has redundant power inputs with an alarm relay, and is rated for an operating temperature of -25 ~ +60 °C. The ordering code AXP-9791-IoT CR is listed as RoHS.ApplicationsHMI and operator interface integrationData acquisitionControl and automation with local and remote I/O

2-port PoE Ethernet Expansion Module.

4-port PoE Ethernet Expansion Module.

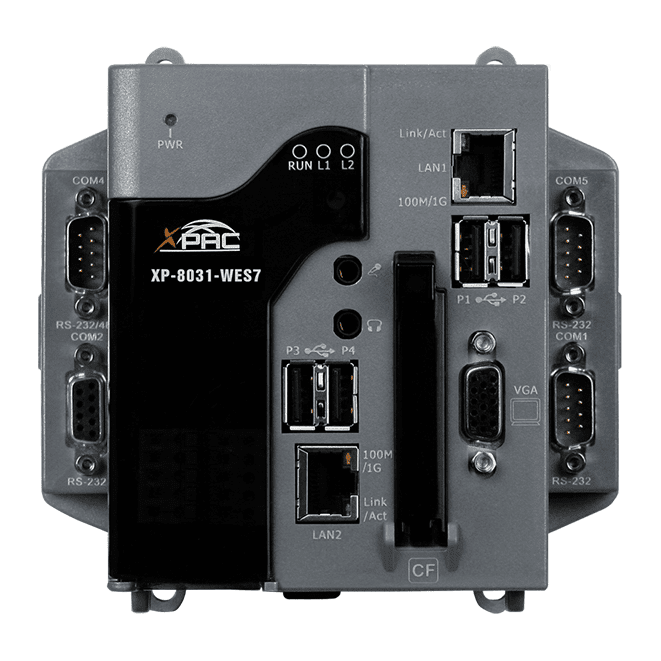

The XP-8031-WES7 is a Windows-based PAC that brings computing, I/O and operator interface into a single unit. It suits projects where HMI, data acquisition and control must sit in one controller rather than across separate devices.At its core is a 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash, running Windows Embedded Standard 7 SP1 (32-bit). Because the operating system uses the Win32 API of Windows 7, desktop applications built on that interface can be ported with relatively little change. The unit offers dual Gigabit Ethernet, VGA output, four USB 2.0 ports and a mix of RS-232 and RS-485 serial ports.For wider I/O coverage, remote expansion is available through ICP DAS Ethernet I/O modules and RS-485 I/O modules. The unit also features a redundant power input with a relay for power-fail alarm signalling, and it is rated for DIN-rail or wall mounting over an operating range of -25 ~ +75 °C.ApplicationsIntegrated HMI, data acquisition and control in a single PACDesktop-style Windows applications on industrial hardwareRemote I/O expansion with Ethernet and RS-485 I/O modules

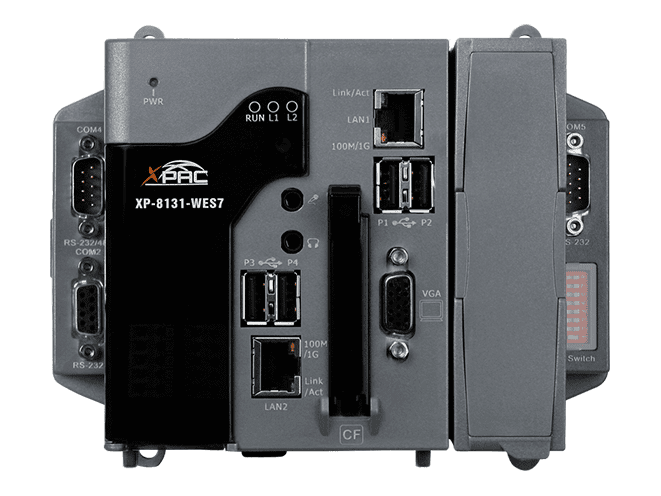

The XP-8131-WES7 CR is a 1-slot Windows PAC for engineers who need a single controller that handles computing, operator display and local I/O. It runs Windows Embedded Standard 7 SP1 (32-bit) on a 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM, so it suits HMI, data acquisition and control tasks in one device.Connectivity covers dual 10/100/1000 Base-TX Ethernet, VGA output, four USB 2.0 ports and four serial COM ports, including RS-485 with 3000 VDC isolation. The local slot accepts I-8K or I-87K series I/O modules, and remote expansion is possible through Ethernet and RS-485 I/O modules.Because WES7 uses the same Win32 API as Windows 7, many popular desktop applications can be run on the unit. The redundant power inputs with an alarm relay and dual watchdog timer support reliable operation in demanding installations.ApplicationsHMI and operator interfaceData acquisitionIndustrial controlLocal and remote I/O integration

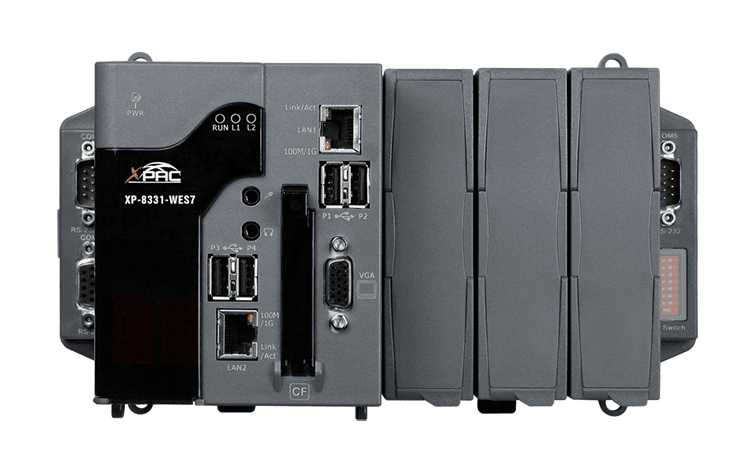

XP-8331-WES7 is a Windows-based PAC that brings computing, I/O and operator interface into a single unit. It suits applications where HMI, data acquisition and control need to sit in one controller rather than across separate devices.The unit is built around a 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash. Three local slots accept I-8K and I-87K series I/O modules, and remote I/O can be added through Ethernet and RS-485 I/O modules. The Win32 API matches Windows 7, so many desktop applications should run on the platform.Connectivity includes VGA video output, two 10/100/1000M Ethernet ports, four USB 2.0 ports, and COM ports offering RS-232 and RS-485. Redundant power inputs and dual watchdog timers support dependable operation, and the unit is rated for -25 ~ +75 °C.ApplicationsIntegrated HMI and control panelsData acquisition with local and remote I/OMachine and process controlDesktop-style Windows applications on an industrial PAC

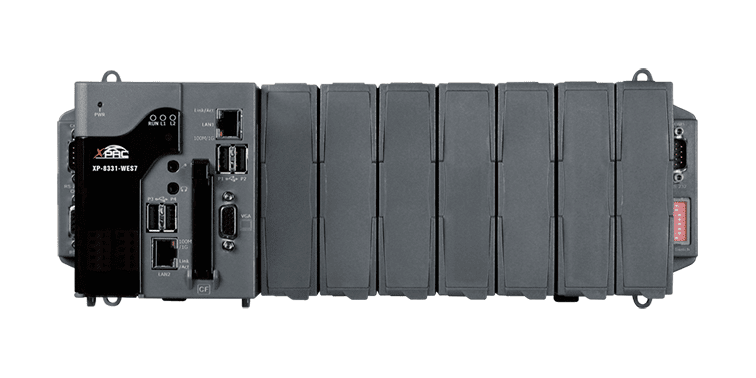

XP-8731-WES7 is a Windows-based programmable automation controller that brings computing, local I/O and operator interface into a single 7-slot unit. It suits machine and process applications where a visual display and data acquisition need to sit alongside control logic in one housing, rather than in separate HMI and PLC hardware.The controller runs Windows Embedded Standard 7 SP1 (32-bit) on a 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash. Because WES7 uses the same Win32 API as Windows 7, desktop applications are generally able to run on it, which helps when reusing existing software. Connectivity includes dual Gigabit Ethernet, VGA, four USB 2.0 ports, RS-232 and RS-485.Local expansion uses the I-8K and I-87K series I/O modules in the seven slots. Remote I/O can be added through Ethernet I/O modules and RS-485 I/O modules. The power input is redundant, with an alarm relay output, and the unit is rated for -25 ~ +75 °C operation.ApplicationsIntegrated HMI, data acquisition and control in a single PACDesktop-style Windows applications on an industrial controllerLocal and remote I/O expansion for machine and process control

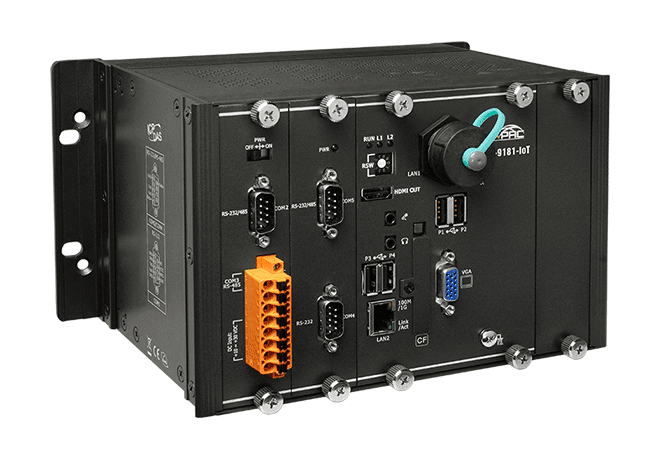

The XP-9181-IoT CR is a Windows-based programmable automation controller for engineers who need HMI, data acquisition and control in a single compact unit. It runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3845 1.91 GHz quad-core processor with 4 GB DDR3 SDRAM and a 64 GB SSD, so standard Windows software and development tools can be used on the controller.Connectivity covers VGA and HDMI display outputs, two 10/100/1000M Ethernet ports, four USB 2.0 ports and a set of isolated serial ports: one RS-232, one RS-485 and two switchable RS-232/RS-485, each rated at 3000 VDC isolation. A single local slot accepts I-9K or I-97K series I/O modules, and remote I/O expansion is possible through Ethernet or RS-485 I/O modules.The unit is designed for DIN-rail or wall mounting and has a +10 ~ 30 VDC power input with redundant power inputs for added resilience. Its dual watchdog timer and operating range of -25 ~ +60 °C suit demanding control cabinet installations. The CR ordering code is the RoHS-compliant standard version.ApplicationsHMI and operator interfaceData acquisitionMachine and process controlIntegrated PAC for control cabinets

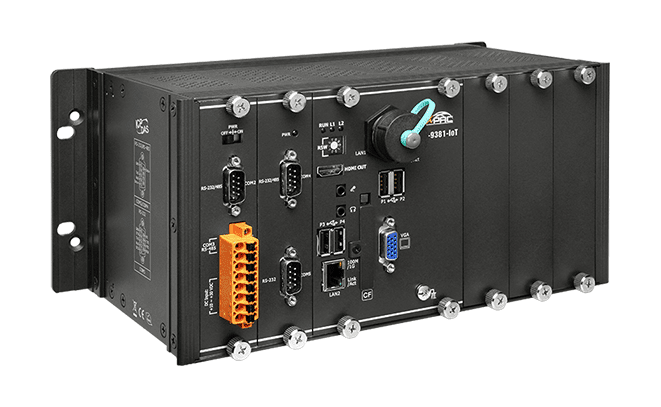

The XP-9381-IoT is a Windows-based programmable automation controller that brings computing, I/O and operator interface into a single unit. It suits projects where HMI, data acquisition and control need to sit in one individual PAC rather than across separate devices.The unit runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3845 quad-core CPU at 1.91 GHz, with 4 GB DDR3 SDRAM and a 64 GB SSD. Local I/O is provided by three expansion slots for I-9K and I-97K series modules, and remote I/O can be added through Ethernet or RS-485 I/O modules.Connectivity includes two 10/100/1000M Ethernet ports, VGA and HDMI display output, four USB 2.0 ports, and a mix of isolated RS-232 and RS-485 serial ports. The XP-9381-IoT CR is supplied with CE, UKCA, RoHS and WEEE certification listed, and its +10 ~ 30 VDC input can be wired redundantly.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O expansion for machine and process controlWindows-based supervisory and data handling tasks

The XP-9781-IoT is a Windows-based programmable automation controller that brings computing, I/O and operator interface into a single unit. It suits projects that need HMI, data acquisition and control in one PAC rather than as separate devices.Local I/O is supported through seven expansion slots for I-9K and I-97K series modules. Remote I/O can be added through Ethernet I/O modules or RS-485 I/O modules, giving flexibility in how the control system is distributed.Built around an Intel Atom E3845 quad-core CPU with 4 GB DDR3 SDRAM and a 64 GB SSD, the unit offers VGA and HDMI outputs, dual 10/100/1000 Base-TX Ethernet, multiple isolated serial ports and redundant power inputs. This ordering code is listed as RoHS in the product description.ApplicationsIntegrated HMI, data acquisition and control in a single PACDistributed local and remote I/O control systems
