WP-9x28-CE7

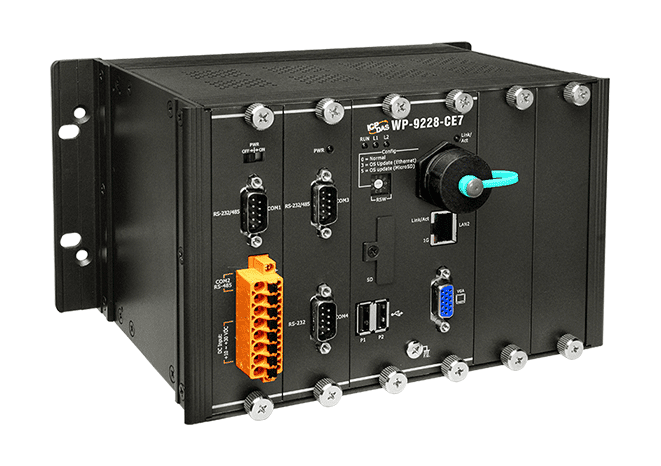

The WP-9228-CE7 CR is a Win-GRAF based programmable automation controller that combines soft PLC logic with a Windows CE 7.0 runtime. Its 1.0 GHz Cortex-A8 processor, 512 MB DDR3 SDRAM and 256 MB Flash suit engineers who want deterministic control alongside a PC-style display and development environment.Logic is built with the embedded Win-GRAF SoftLogic environment following IEC 61131-3. HMI and data management software can be written in MS Visual Studio 2008 (VB .NET or C#) and exchange data with the Win-GRAF application. The VGA output and eLogger HMI function support local operator screens.This 2-slot version takes two high-performance I-9K (parallel) or I-97K (serial) I/O modules, with the metal casing offering a compact footprint of 239 x 133 x 164 mm (W x L x H). Choose the 4-slot WP-9428-CE7 CR or 8-slot WP-9828-CE7 CR where more expansion is needed.ApplicationsLogic control applications using IEC 61131-3 programmingHMI and data management applicationsExpandable remote and local I/O control with I-9K and I-97K modules

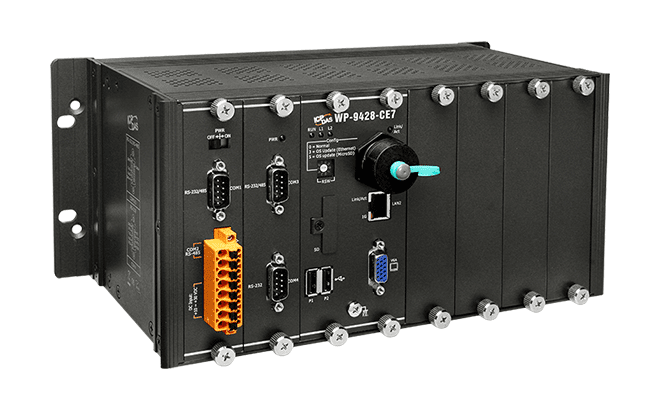

The WP-9428-CE7 CR is a 4-slot programmable automation controller built around a 1.0 GHz Cortex-A8 processor and Windows CE 7.0. Control logic is developed in the embedded Win-GRAF SoftLogic environment following IEC 61131-3, while VB .NET or C# HMI and data management applications can exchange data with that logic.Four slots accept High Profile I-9K (parallel-type) and I-97K (serial-type) I/O modules. Connectivity includes two RJ-45 10/100/1000 Base-TX Ethernet ports, one RS-232 and one RS-485 port, two RS-232/485 ports with 3000 VDC isolation, and two USB 2.0 ports. Modbus RTU/TCP master and slave and an OPC UA server are supported, and a VGA output drives 800 x 600 or 1024 x 768 displays.Power is supplied at +10 ~ 30 VDC with redundant power inputs and 1 kV isolation, with typical consumption of 16.8 W (0.7 A @ 24 VDC). The metal enclosure is specified for -25 ~ +75°C operation and mounts on DIN-rail or wall. This code is the 4-slot model; the 2-slot WP-9228-CE7 CR and 8-slot WP-9828-CE7 CR share the same platform.ApplicationsLogic control applications developed in IEC 61131-3 Win-GRAFHMI and data management applications on a Windows CE platformData logging and file access with I/O expansionSerial and Ethernet device communication over Modbus and OPC UA

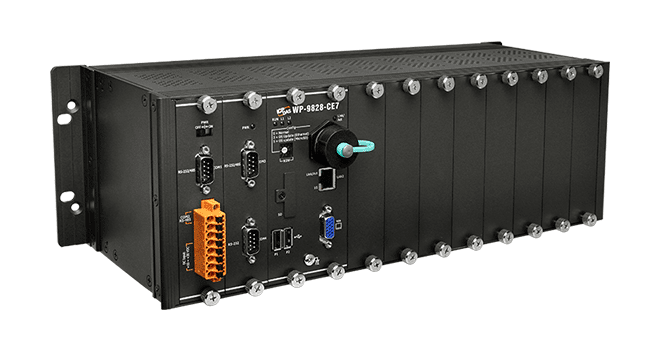

The WP-9828-CE7 is an 8-slot programmable automation controller that combines embedded Win-GRAF SoftLogic (IEC 61131-3) with a Windows CE 7.0 operating environment. It suits engineers who want logic control, HMI and data handling on one controller, with a VGA output for a local display and a wide choice of serial, Ethernet and USB ports.The unit is built around a 1.0 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 256 MB of flash, and it provides eight expansion slots for high profile I-9K and I-97K I/O modules. Logic can be developed in Win-GRAF, while HMI and data management applications can be written in VB .NET or C# using MS Visual Studio 2008 and exchange data with the Win-GRAF programs.Communication covers Modbus RTU and TCP in master and slave roles, Modbus ASCII master, OPC UA server and DCON. Redundant power inputs of +10 ~ 30 VDC with 1 kV isolation support resilient installations. The metal housing mounts on DIN-rail or by wall mounting, and the unit operates from -25 ~ +75°C.ApplicationsLogic control applications developed in Win-GRAF IEC 61131-3 softwareHMI and data management applications written in VB .NET or C#Local operator display through the VGA outputData logging and file access with the embedded SQL server and FTP server
