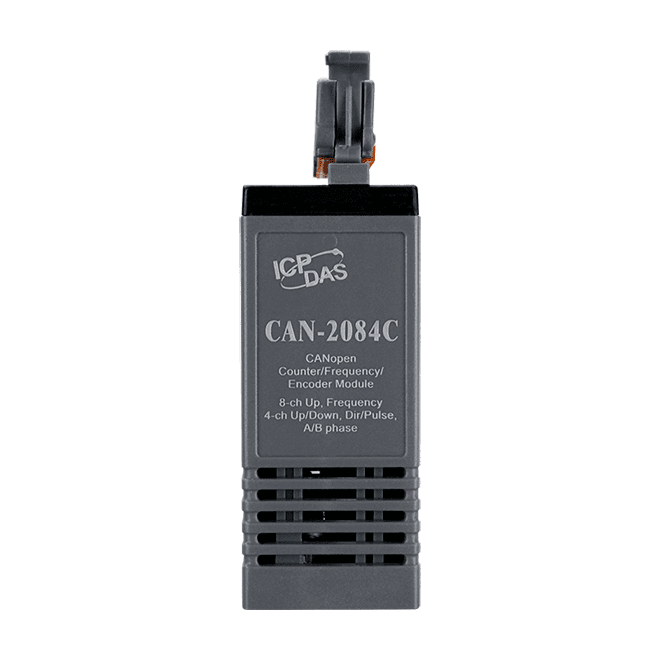

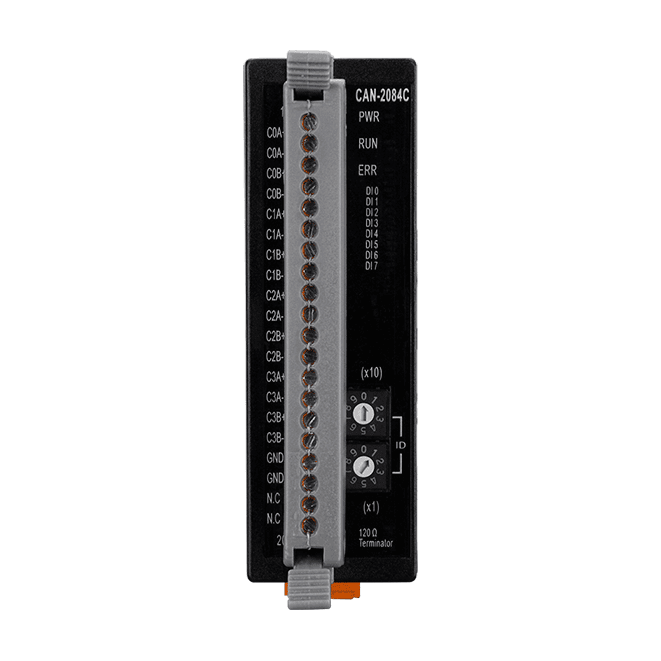

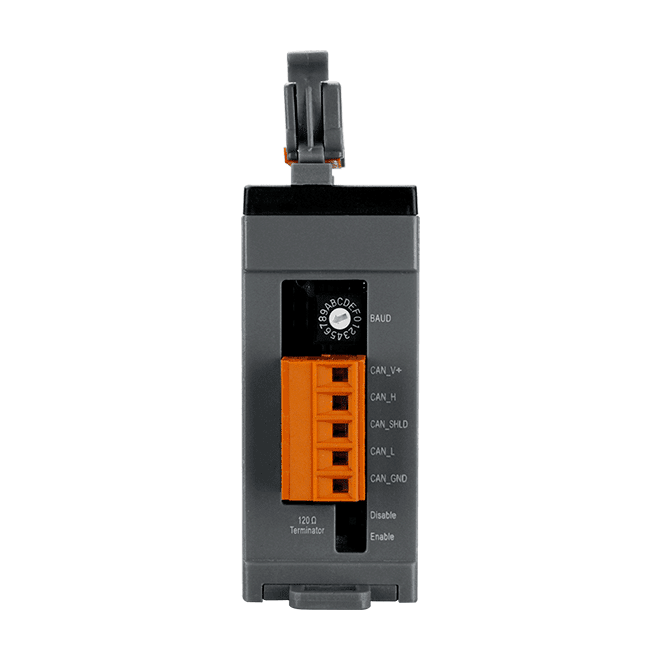

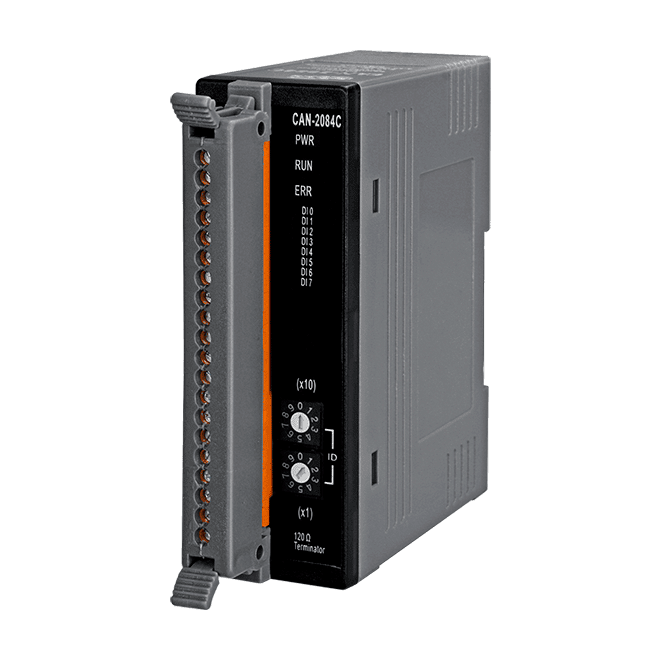

CAN-2084C CANopen Slave Counter/Frequency Input Module, 4/8-ch
CANopen slave module with 4/8 counter/frequency input channels. Offers five counter modes, CiA 301 v4.02 and CiA 401 v2.1 support, and a default EDS file for standard CANopen masters.
- NMT slave supporting CiA 301 v4.02 and CiA 401 v2.1
- Five counter modes: Up Counter, Frequency, Up/Down Counter, Dir/Pulse Counter and A/B Phase Counter
- 4/8 digital input channels, 5 V/TTL type, with 4 kV contact ESD protection per channel
- Isolation of 3000 VDC for DC-to-DC and 2500 Vrms for photo-couple
- PDO mapping with 10 RxPDOs and 10 TxPDOs, plus EMCY messages
- Baud rate 10 k ~ 1 M and node ID 1 ~ 99
244,00 € pro Stück
| 1–9 Stück | 244,00 € | |
|---|---|---|
| 10–30 Stück | 236,00 € | −3 % |
| ab 31 Stück | 231,00 € | −5 % |
Produktinformationen "CAN-2084C CANopen Slave Counter/Frequency Input Module, 4/8-ch"
The CAN-2084C is a CANopen slave module that brings 4 or 8 counter and frequency input channels onto a CAN bus network. It suits engineers who need to count events, measure frequency or monitor position from quadrature encoders within a CANopen system.
The module offers five counter modes: Up Counter, Frequency, Up/Down Counter, Dir/Pulse Counter and A/B Phase Counter. A digital filter reduces the effect of noise on the inputs, and each channel has 4 kV contact ESD protection. It operates as an NMT slave and supports PDO mapping with 10 RxPDOs and 10 TxPDOs.
The module has passed validation with the CiA CANopen conformance test tool and provides a default EDS file, so it can be integrated with a standard CANopen master. It is designed for DIN-rail mounting and has an operating temperature range of -25 ~ +75 °C.
Applications
- Event counting and totalising
- Frequency measurement
- Position monitoring with quadrature encoders
- Remote data acquisition
- Factory automation
- Packaging machine control
| Product type: | Counter/Frequency Input Module |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Digital inputs: | 4/8 |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (photo-couple) |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | 3 LEDs to PWR, RUN and ERR |
| Digital Input | |
| Channels | 4/8 |
| Type | 5 V/TTL |
| ON Voltage Level | +2 ~ +5 VDC |
| OFF Voltage Level | 0 ~ +0.8 VDC |
| CANopen | |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 99 |
| No. of PDOs | 10 RxPDO , 10 TxPDO |
| PDO Mode | Event-triggered, remotely-requested, Cyclic and acyclic SYNC |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Power | |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 33 x 99 x 78 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
