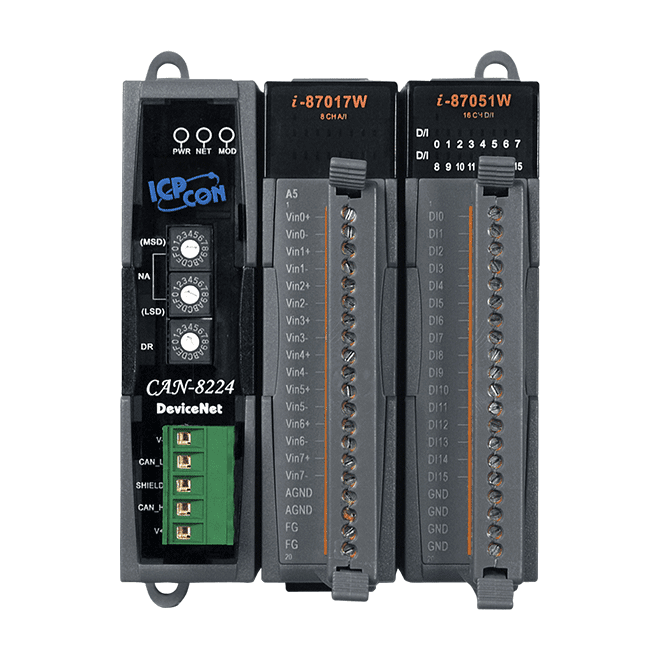

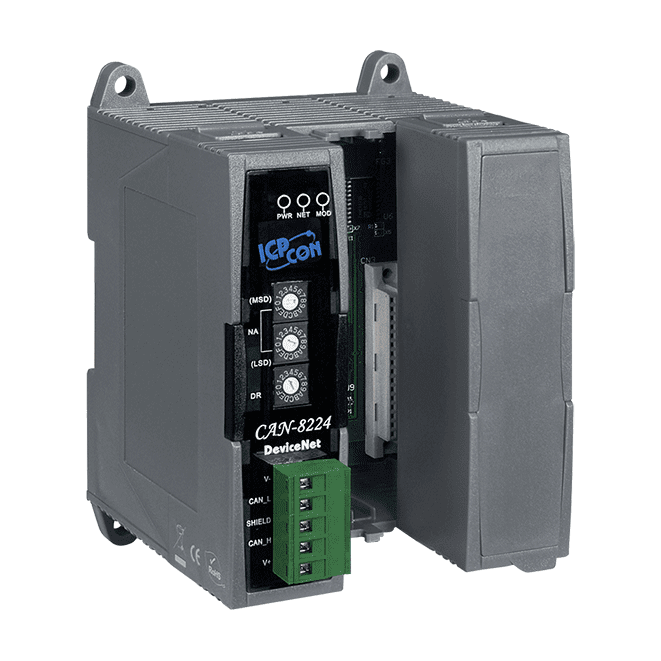

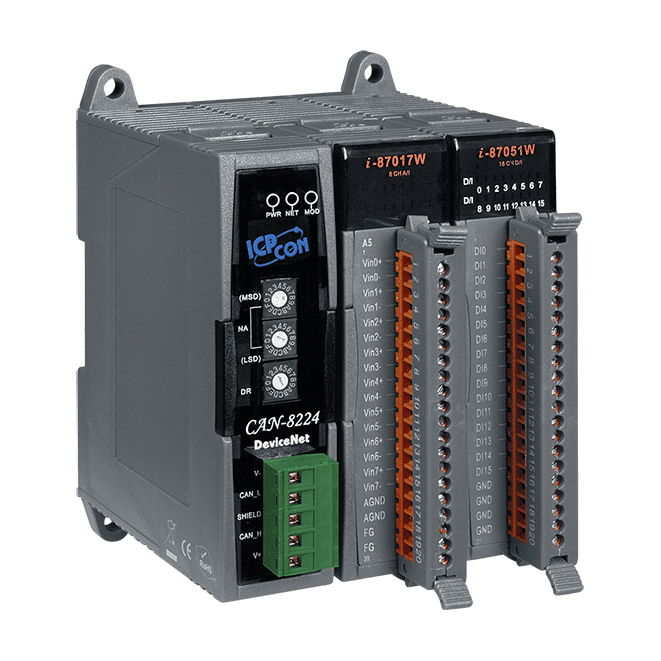

CAN-8224-G DeviceNet Remote I/O Unit, 2 I/O Expansion Slots
DeviceNet slave remote I/O unit with two expansion slots for I-87K and I-8000 series DI, DO, AI and AO modules. Supports 125K, 250K and 500K baud.
- DeviceNet slave compliant with Specification Volume I and II, Release 2.0
- Up to 64 nodes, with 125K, 250K and 500K baud selected by rotary switch
- Two I/O expansion slots for I-87K or I-8000 series DI, DO, AI and AO modules
- Poll, Bit-Strobe and Change of State/Cyclic I/O operating modes
- Up to 128 bytes of fragmented I/O in both input and output directions
- EDS file created dynamically with the CAN Slave Utility
276,00 € pro Stück
| 1–9 Stück | 276,00 € | |
|---|---|---|
| 10–30 Stück | 268,00 € | −3 % |
| ab 31 Stück | 262,00 € | −5 % |
Produktinformationen "CAN-8224-G DeviceNet Remote I/O Unit, 2 I/O Expansion Slots"
CAN-8224-G is a DeviceNet slave remote I/O unit that accepts two plug-in I/O modules, letting you build the channel count and signal mix your application needs. It follows the DeviceNet Specification Volume I and II, Release 2.0, and can address up to 64 nodes.
Expansion slots accept I-87K or I-8000 series digital input, digital output, analogue input and analogue output modules. The unit is configured with rotary switches for MAC ID and baud rate, and an EDS file can be generated with the CAN Slave Utility for use with different DeviceNet masters.
- Supports the Poll, Bit-Strobe and Change of State/Cyclic I/O operating modes
- Galvanic isolation of 3000 VDC (DC-to-DC) and 2500 Vrms (photo-coupler)
Applications
- Automotive
- Food & Beverage
- Packaging
- High-speed Assembly
- Pulp & Paper
- Semiconductor Fabrication
- Control System
| Product type: | Remote I/O unit |
|---|---|
| Interface: | DeviceNet |
| Protocol: | DeviceNet |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Watchdog IC |
| LED Indicators | |
| Status | 1 x Power 2 x DeviceNet status |
| I/O Expansion | |
| Slots | 2 slots |
| DeviceNet | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O 1 connection for COS/Cyclic I/O |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0 |
| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | 95 x 132 x 91 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
