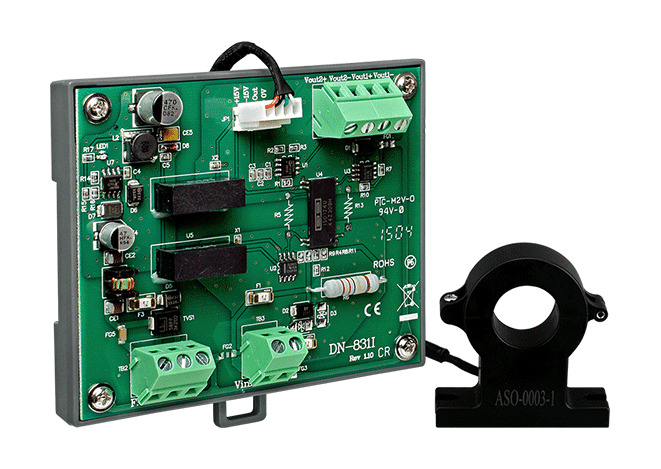

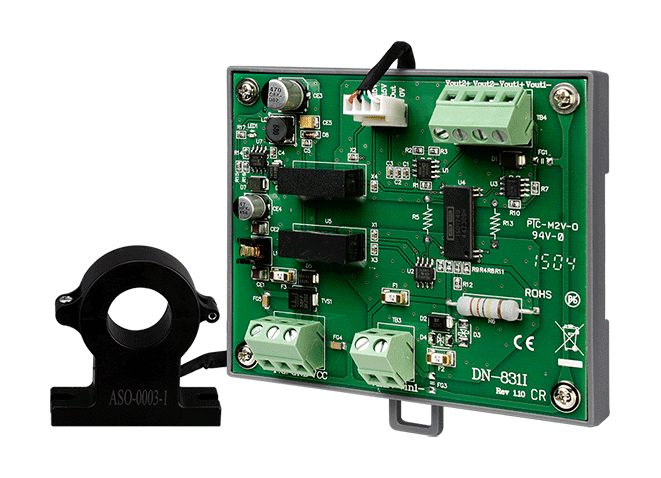

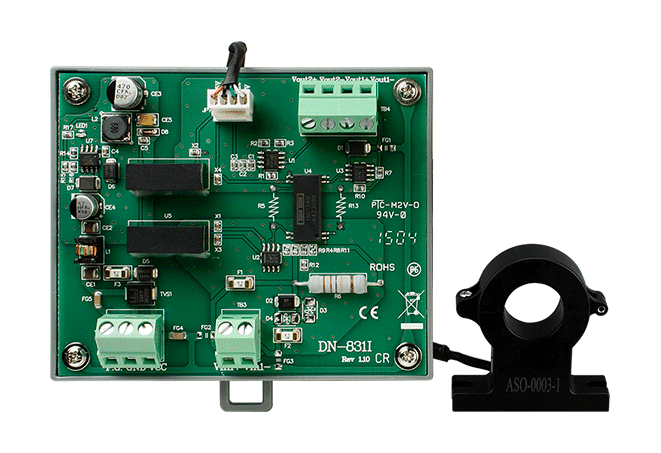

DN-831I-100V-200A Voltage Attenuator and 200 A Current Transformer
Signal conditioner that scales ±100 V DC and ±200 A inputs down to ±10 V analog outputs, with 3000 VDC isolation. Includes CA-040415-1 cable and ASO-003-1 current transformer.
- Attenuates ±100 V DC input to ±10 V analog output with a linear ratio
- Clip-on ±200 A current transformer with Φ21 mm aperture and 1.5 m lead
- 3000 VDC intra-module and channel-to-channel isolation
- High input impedance for high-voltage and high-current inputs
- Measurement accuracy of 1% of FSR on both channels
- Voltage channel bandwidth 20 Hz ~ 20 kHz; current channel 0 ~ 50 kHz
145,00 € pro Stück
| 1–9 Stück | 145,00 € | |
|---|---|---|
| 10–30 Stück | 140,00 € | −3 % |
| ab 31 Stück | 138,00 € | −5 % |
Produktinformationen "DN-831I-100V-200A Voltage Attenuator and 200 A Current Transformer"
DN-831I-100V-200A is a DIN-rail signal conditioner that brings one high-voltage and one high-current measurement point down to levels that standard analog input modules can read. The voltage channel attenuates ±100 V to ±10 V, and the current channel uses a clip-on transformer rated for ±200 A, also scaled to ±10 V.
Each channel is galvanically isolated, with 3000 VDC between modules and 3000 VDC channel to channel, which helps keep noise from the high-voltage side out of the measurement chain. The high input impedance and linear attenuation ratio make the output straightforward to scale in software. The clip-on current transformer has a Φ21 mm aperture and a 1.5 m lead.
The unit is powered from 10 to 30 VDC, draws 1.8 W, and is housed in plastic for DIN-rail mounting. It is specified for operation from -25 to +75 °C and carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- High-current measurement using analog input modules
- High-voltage signal monitoring with analog input modules
| Product type: | Voltage attenuator and current transformer |
|---|---|
| Isolation: | 3000 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| CT | |
| Type | Clip |
| Inside Diameter | Φ21 mm |
| Leading Cable | 1.5 m |
| Analog Input | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | High Current: ±200 A High Voltage: ±100 VDC |
| Accuracy | High Current: 1% of FSR High Voltage: 1% of FSR |
| Bandwidth | High Current: 0 ~ 50 KHz High Voltage: 20 Hz ~ 20 kHz |
| Isolation | High Current: 2.5 KV @ 50 (60) HZ/1 min |
| Analog Output | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | • High Current: ±10 VDC or 10 VAC • High Voltage: ±10 VDC or 10 VAC |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 103 x 94 x 29 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
