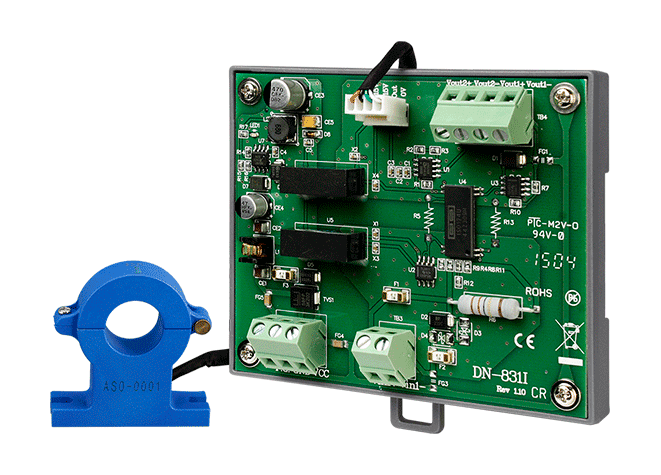

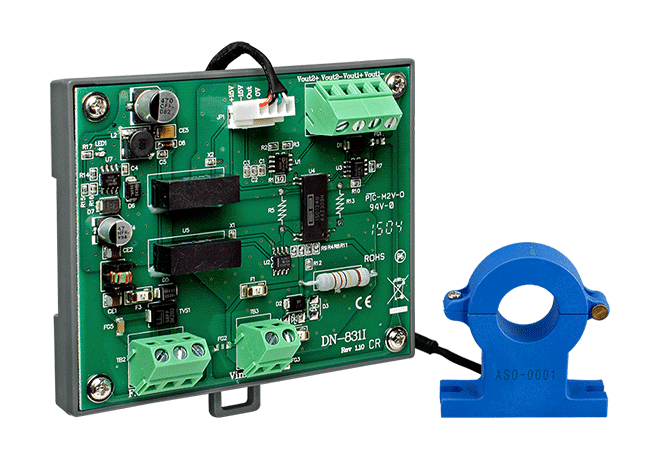

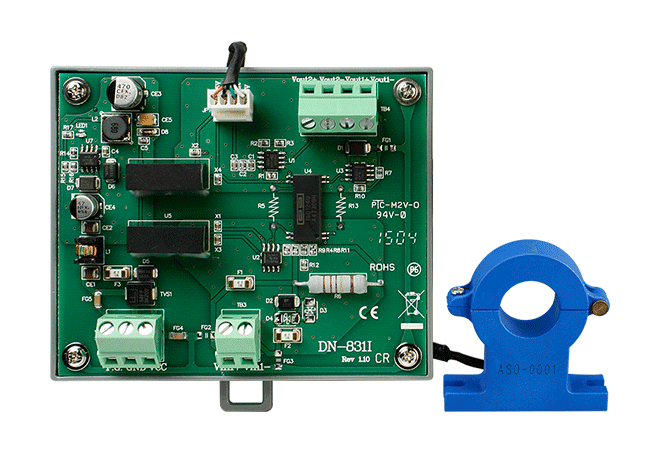

DN-831I-100V-500A Voltage Attenuator & Current Transformer, ±100 V / ±500 A
1-channel voltage attenuator and 1-channel current transformer that scale ±100 V and ±500 A inputs to ±10 V outputs, with 3000 VDC isolation.
- Attenuates ±100 V voltage input and ±500 A current input to ±10 V outputs
- Linear attenuation ratio with high input impedance
- 3000 VDC intra-module and channel-to-channel isolation
- Clip-type current transformer with Φ21 mm inside diameter and 1.5 m leading cable
- Includes CA-040415 cable and ASO-0001 current transformer
- Power input +10 VDC ~ +30 VDC, 1.8 W consumption
150,00 € pro Stück
| 1–9 Stück | 150,00 € | |
|---|---|---|
| 10–30 Stück | 145,00 € | −3 % |
| ab 31 Stück | 142,00 € | −5 % |
Produktinformationen "DN-831I-100V-500A Voltage Attenuator & Current Transformer, ±100 V / ±500 A"
DN-831I-100V-500A is a signal conditioning module that brings high voltage and high current signals down to a level that standard analogue input modules can read. Its voltage channel attenuates inputs up to ±100 V, and its current channel uses a clip-type current transformer to attenuate inputs up to ±500 A, with both outputs scaled to ±10 V.
The module provides 3000 VDC isolation between the modules and between channels, which helps keep noise from the high-level inputs out of the outputs. The linear attenuation ratio and high input impedance make the outputs straightforward to interpret. This ordering code includes the CA-040415 cable and the ASO-0001 current transformer.
It is intended for use with analogue input modules such as the I-7017, I-87017, M-7017RMS and I-87017W-RMS to measure high current. The module mounts on DIN-rail and is powered from +10 VDC to +30 VDC.
Applications
- High current measurement using analogue input modules
- High voltage measurement with isolated ±10 V output
- Industrial monitoring and data acquisition panels
| Product type: | Signal conditioner |
|---|---|
| Analog inputs: | 2 |
| Analog outputs: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| CT | |
| Type | Clip |
| Inside Diameter | Φ21 mm |
| Leading Cable | 1.5 m |
| Analog Input | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | High Current: ±500 A High Voltage: ±100 VDC |
| Accuracy | High Current: 1% of FSR High Voltage: 1% of FSR |
| Bandwidth | High Current: 0 ~ 50 KHz High Voltage: 20 Hz ~ 20 kHz |
| Isolation | High Current: 2.5 KV @ 50 (60) HZ/1 min |
| Analog Output | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | • High Current: ±10 VDC or 10 VAC • High Voltage: ±10 VDC or 10 VAC |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 103 x 94 x 29 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
