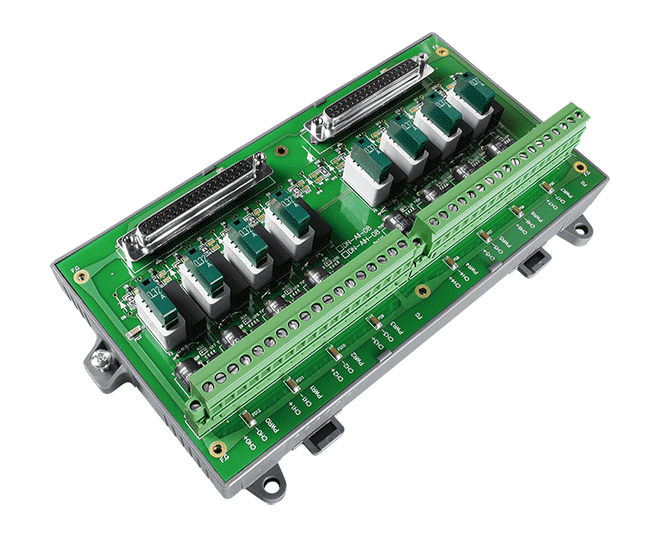

DN-AIH-08 HART Analog Input Termination Board, 8-ch Active/Passive Loop
DN-AIH-08 termination board for HART analog input modules, with 8 channels supporting active and passive loop wiring and isolated loop power for field devices.
- 8 analogue input channels supporting active and passive loop wiring connection
- Isolated power source for field devices, with over-current protection on the loop supply
- Loop current limited during short circuit or excessive current
- Removable fuses guard loop devices against high inrush current
- Physical indicator shows when a fuse has broken
- EMS protection and RoHS compliant, with CE, UKCA, FCC and WEEE certifications listed
380,00 € pro Stück
| 1–9 Stück | 380,00 € | |
|---|---|---|
| 10–30 Stück | 369,00 € | −3 % |
| ab 31 Stück | 361,00 € | −5 % |
Produktinformationen "DN-AIH-08 HART Analog Input Termination Board, 8-ch Active/Passive Loop"
DN-AIH-08 is a termination board for HART analog input modules. It measures the analogue signal on each of its 8 channels and can also supply isolated loop power to field devices, so it accommodates both active and passive loop wiring.
The board includes short-circuit protection on the isolated power output. If the circuit is shorted or the current becomes too high, the loop current is limited. Removable fuses protect loop devices from high inrush current, and each fuse has a physical indicator that shows when it has blown.
- Suited to HART analog input installations where field devices need to be wired in either active or passive loop configuration.
- Mounts on DIN-rail or wall, with dimensions of 135 x 214.6 x 25.5 mm.
Applications
- Connecting HART analogue field devices to HART analog input modules
- Loop-powered field instrumentation requiring isolated passive loop power
- Industrial installations requiring protected analogue loop wiring
| Product type: | Termination board |
|---|---|
| Protocol: | HART |
| Analog inputs: | 8 |
| Isolation: | Isolated loop power |
| Operating temperature: | -25 ~ 75 °C |
| Mounting: | DIN-rail & wall |
Technische Daten
| Analog Input | |
|---|---|
| Channels | 8 (Support Active and Passive Loop Wiring Connection) |
| Mechanical | |
| Dimensions (mm) | 135 x 214.6 x 25.5 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
