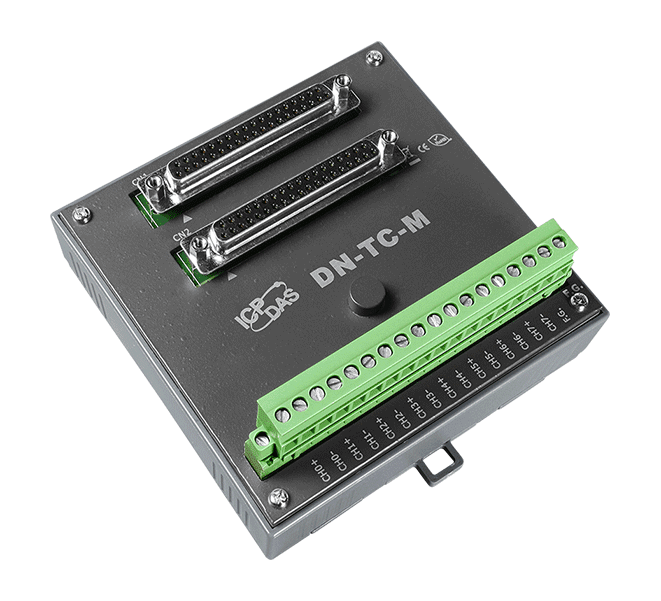

DN-TC-M Thermocouple Termination Board, 8-ch with Built-in CJC
Compact 8-channel termination board for thermocouple input modules, with built-in cold junction compensation (CJC) for more accurate temperature readings.
- Termination board for 8 thermocouple input channels
- Built-in CJC for more accurate temperature measurement
- Compact mini termination board footprint, consistent with the same range
- DIN-rail and wall mounting
- Operating temperature -25 ~ 75 °C
- Humidity 5 ~ 95% RH, non-condensing
128,00 € pro Stück
| 1–9 Stück | 128,00 € | |
|---|---|---|
| 10–30 Stück | 124,00 € | −3 % |
| ab 31 Stück | 121,00 € | −5 % |
Produktinformationen "DN-TC-M Thermocouple Termination Board, 8-ch with Built-in CJC"
The DN-TC-M CR is a termination board for thermocouple input modules. Its built-in cold junction compensation (CJC) helps measure temperature more accurately by correcting for the temperature at the terminal connections.
The board is small, sharing the same footprint as other mini termination boards in the range, which keeps panel layouts consistent when several boards are installed together. It can be mounted on a DIN rail or on a wall.
Key points for specification:
- 8 thermocouple channels
- Operating temperature -25 ~ 75 °C, humidity 5 ~ 95% RH non-condensing
- Dimensions 112 x 117 x 29 mm
Applications
- Thermocouple temperature measurement
- Panel-mounted termination for thermocouple input modules
| Product type: | Termination board |
|---|---|
| Analog inputs: | 8 |
| Operating temperature: | -25 ~ 75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Analog Input | |
|---|---|
| Channels | 8 |
| Type | Thermocouple |
| Mechanical | |
| Dimensions (mm) | 112 x 117 x 29 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
