EC4-C16 EtherCAT SubDevice Slim Digital Output Module, 16-ch Isolated
Slim EtherCAT SubDevice module with 16 isolated open-collector sink digital outputs, rated 500 mA per channel, for DIN-rail or wall-mounted I/O. RoHS version.
- EtherCAT SubDevice interface, compatible with standard EtherCAT MainDevices
- 16 isolated digital outputs, 3000VDC isolation
- Open collector (sink) outputs with internal flywheel diode, 40 VDC max. load voltage, 500 mA/channel
- Configurable power-on output values
- Selectable retention of output values after state machine change
- Distributed clocks supported, 100 μs cycle time
128,00 € pro Stück
| 1–9 Stück | 128,00 € | |
|---|---|---|
| 10–30 Stück | 124,00 € | −3 % |
| ab 31 Stück | 121,00 € | −5 % |
Produktinformationen "EC4-C16 EtherCAT SubDevice Slim Digital Output Module, 16-ch Isolated"
The EC4-C16 CR is a slim EtherCAT SubDevice I/O module that switches 16 electrically isolated digital outputs. It suits distributed control in EtherCAT networks, where a compact footprint and a reduced number of field cables are priorities. Each channel is an open-collector sink output with an internal flywheel diode, rated up to 40 VDC and 500 mA per channel.

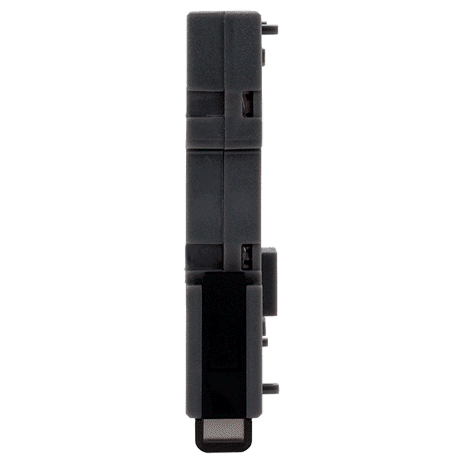

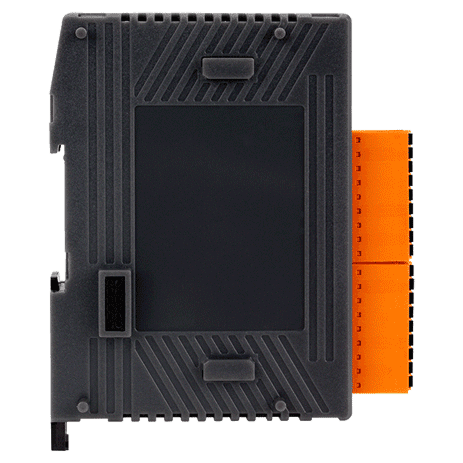

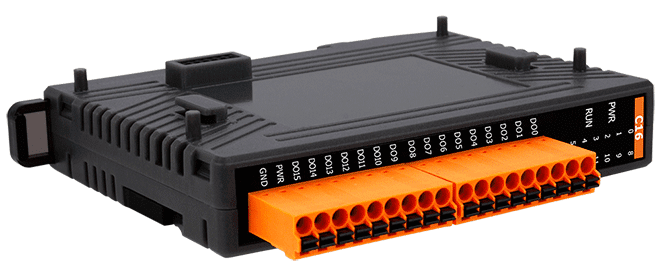

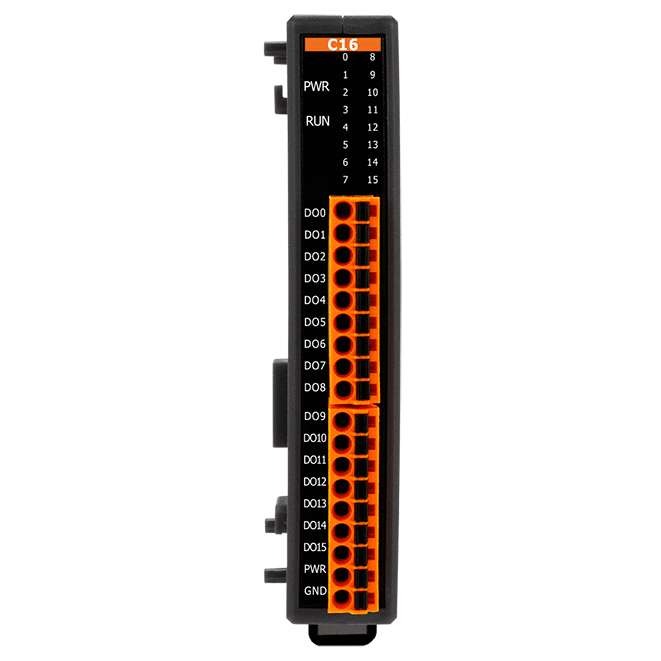

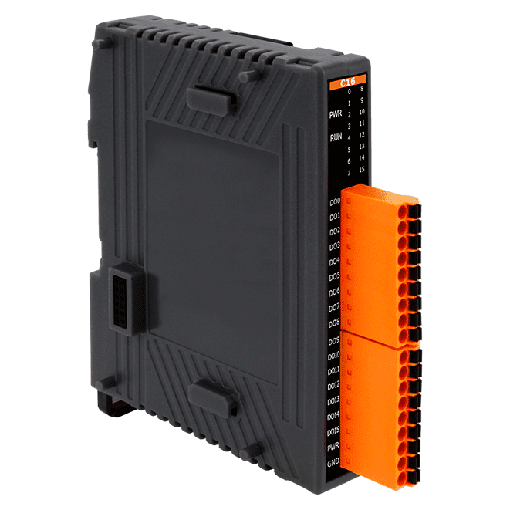

Output states can be checked at a glance from the LED indicators on the enclosure. The module also offers configurable power-on output values and, when required, can retain output values after an EtherCAT state machine change. Distributed clocks are supported with a cycle time of 100 μs.
The CR suffix denotes the RoHS-compliant ordering variant. The module is CE, UKCA, FCC, RoHS and WEEE marked, operates from a +24 VDC supply at -25 ~ +70°C, and mounts on DIN-rail or wall.
Applications
- Distributed switching of loads in EtherCAT networks
- Replacing point-to-point field wiring with fewer cables through remote digital output modules
| Product type: | Digital output module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Digital outputs: | 16 |
| Isolation: | 3000 VDC |
| Power input: | +24 VDC |
| Operating temperature: | -25 ~ +70 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±8KV(Air for Random Point) |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector (Sink),with internal flywheel diode |
| Load Voltage | 40 VDC Max. |
| Load Current | 500 mA/Channel (Sink) |
| Isolation | 3000VDC |
| EtherCAT | |
| Cycle Time | 100 μs |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +24 VDC |
| Consumption | 2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 17.5 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
