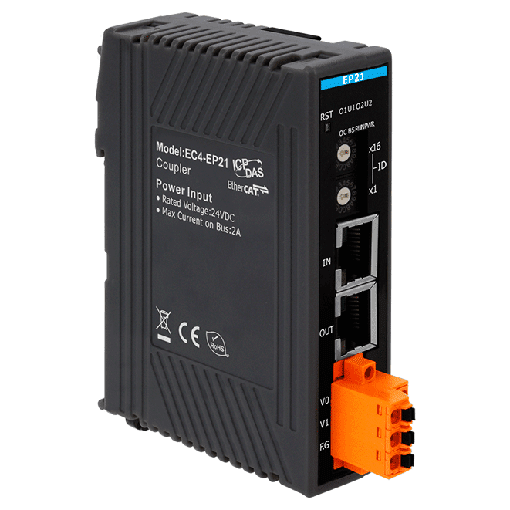

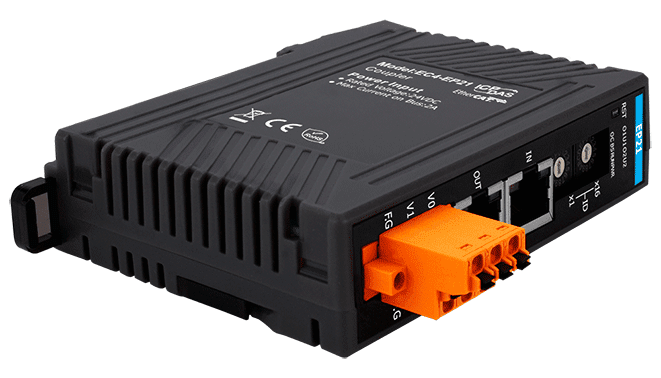

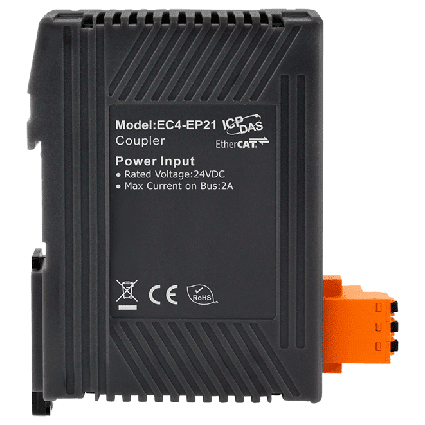

EC4-EP21 EtherCAT Coupler with ID Switch for Slim I/O Stations
EtherCAT coupler that links an EtherCAT network to EtherCAT Slim low-profile modules, with an external ID switch and up to 100 m between stations.
- EtherCAT coupler for EtherCAT Slim low-profile I/O stations
- Two RJ-45 ports (1 IN, 1 OUT) for daisy-chained stations up to 100 m apart (100BASE-TX)
- External ID switch with node IDs up to 256
- Dual power input at +24 VDC
- Over-voltage, under-voltage and over-current protection
- Operating range -25 ~ +75 °C with DIN-rail or wall mounting
162,00 € pro Stück
| 1–9 Stück | 162,00 € | |
|---|---|---|
| 10–30 Stück | 157,00 € | −3 % |
| ab 31 Stück | 154,00 € | −5 % |
Produktinformationen "EC4-EP21 EtherCAT Coupler with ID Switch for Slim I/O Stations"
The EC4-EP21 CR is an EtherCAT coupler that forms the head of a distributed I/O station. It connects the EtherCAT fieldbus to the EtherCAT Slim low-profile modules that sit alongside it, so a station is built from one coupler plus as many Slim modules as the application needs.

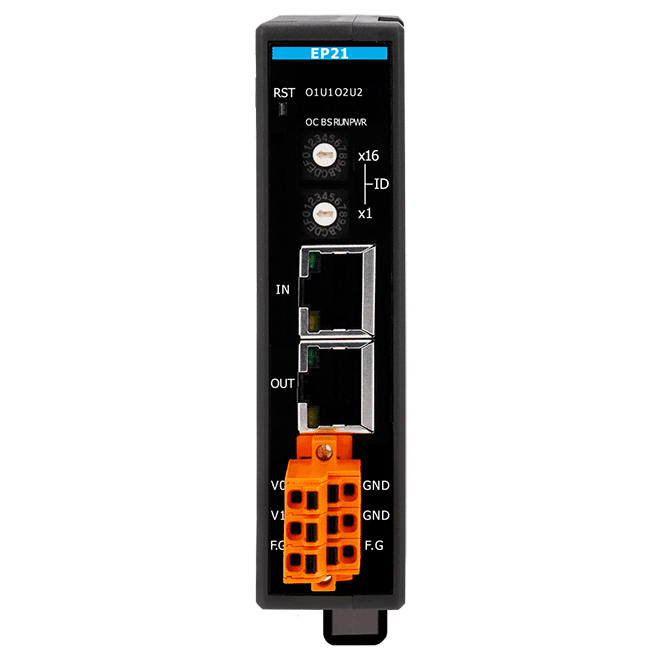

Two RJ-45 ports (one IN, one OUT) allow the coupler to be daisy-chained along the network, with a maximum of 100 m between stations over 100BASE-TX. Node addressing is set through the external ID switch, and up to 256 node IDs are supported. The unit accepts dual power inputs at +24 VDC and includes over-voltage, under-voltage and over-current protection.

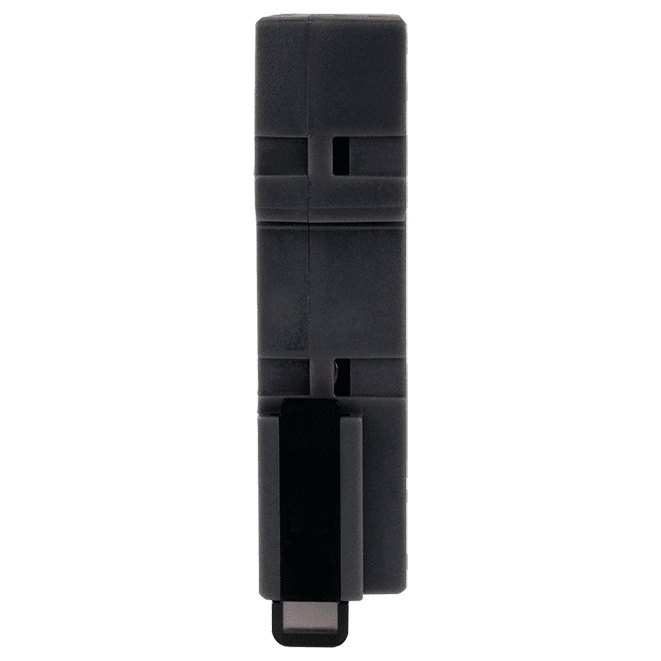

The housing is plastic and measures 25 x 108 x 93 mm (W x L x D). It mounts on a DIN rail or to a wall, and is rated for operation from -25 ~ +75 °C. The CR suffix denotes the RoHS-compliant version, listed with CE, UKCA, FCC, RoHS and WEEE certifications.
Applications
- Distributed I/O stations on EtherCAT networks
- Machine and panel I/O built from EtherCAT Slim modules
| Product type: | EtherCAT coupler |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Ports: | 2 x RJ-45 |
| Power input: | +24 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | 4 KV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | 1 KV Class A |
| EtherCAT | |
| Ports | EtherCAT, 2 x RJ-45 (1 IN; 1-OUT) |
| Node ID | Up to 256 |
| Distance Between Stations | Max.100 m (100BASE-TX) |
| Data Transfer Medium | Ethernet/EtherCAT Cable (Min. CAT 5), Shielded |
| Power | |
| Input Range | +24 VDC |
| Consumption | 2W Max |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 25 x 108 x 93 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
