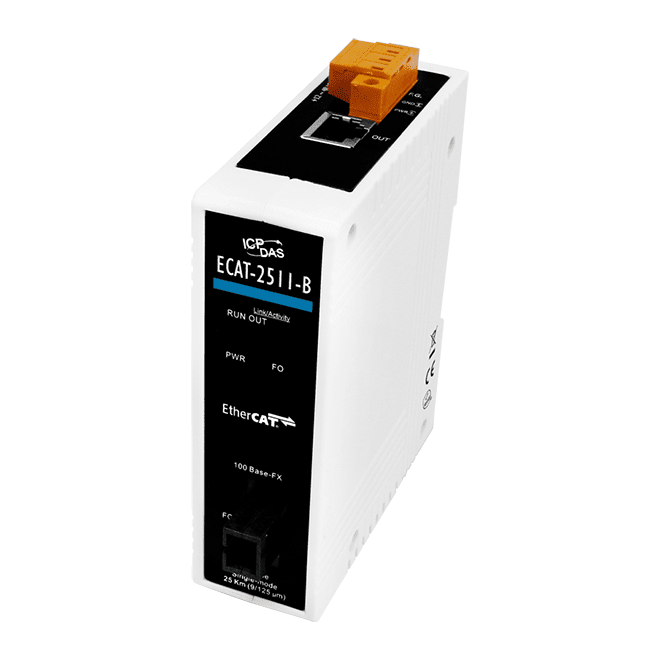

ECAT-2511-B EtherCAT Single-Strand Media Converter, TX 1550 nm, RX 1310 nm
EtherCAT to single-mode fibre media converter with an SC port for single-strand links up to 25 km over 100BASE-FX. Supplied as the B half of a matched pair with the ECAT-2511-A.
- Single-strand fibre link with one SC port, TX 1550 nm and RX 1310 nm
- Up to 25 km between stations over 100BASE-FX (9/125 μm fibre recommended)
- Reshapes the EtherCAT signal and isolates bus errors caused by wire shorts or disturbance
- Powerful MCU handles efficient network traffic
- EtherCAT conformance test tool verified
- 4 kV contact ESD protection on each port
291,00 € pro Stück
| 1–9 Stück | 291,00 € | |
|---|---|---|
| 10–30 Stück | 283,00 € | −3 % |
| ab 31 Stück | 277,00 € | −5 % |
Produktinformationen "ECAT-2511-B EtherCAT Single-Strand Media Converter, TX 1550 nm, RX 1310 nm"
The ECAT-2511-B converts EtherCAT signals to optical signals on a single-mode fibre, reshaping the signal to compensate for distortion along the link. It suits engineers who need to extend an EtherCAT segment over fibre using only one strand, with TX at 1550 nm and RX at 1310 nm on its SC connector.
Fibre isolation keeps bus faults caused by a wire short or electrical disturbance from spreading across the link, and the optical path helps the network resist EMS and RFI noise. The converter is designed to work as a pair, so it must be purchased together with its partner, the ECAT-2511-A.
The unit has a plastic DIN-rail housing, accepts +12 VDC ~ +48 VDC with reverse polarity protection, and is rated for an operating temperature of -25 ~ +75 °C. Its 4 kV contact ESD protection on each port adds robustness during installation and maintenance.
Applications
- Extending EtherCAT segments over single-strand fibre
- Electrically noisy industrial environments requiring EMS/RFI immunity
- Protecting EtherCAT networks from bus errors caused by wire faults or disturbance
- Pairing with the ECAT-2511-A for fibre links between EtherCAT stations
| Product type: | Media converter |
|---|---|
| Interface: | RJ-45, SC |
| Protocol: | EtherCAT |
| Ports: | 1 x RJ-45, 1 x SC |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| Fiber | |
|---|---|
| Ports | Single-Mode; SC connector x 1 |
| Wavelength | TX: 1550, RX: 1310 nm |
| Transmission Distance | 25 km (9/125 μm recommended) |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Nodes | 1 |
| Distance Between Stations | Max. 100 m (100Base-TX) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
