ECAT-2610 EtherCAT to Modbus RTU Gateway, RS-232/422/485
Connects RS-232/422/485 serial devices to an EtherCAT network without changing the device. Converts Modbus RTU Main Device data to EtherCAT I/O with no PLC function blocks needed.
- Serial-to-EtherCAT gateway with 1 x RS-232/422/485 port and 2 x RJ-45 EtherCAT connectors
- Modbus RTU (Main Device) support on the serial side
- Serial baud rate up to 115200 bps
- Up to 256 WORD input and 256 WORD output data
- Protocol conversion inside the gateway, no PLC function blocks required
- No hardware or software changes needed on the connected device
319,00 € pro Stück
| 1–9 Stück | 319,00 € | |
|---|---|---|
| 10–30 Stück | 309,00 € | −3 % |
| ab 31 Stück | 303,00 € | −5 % |
Produktinformationen "ECAT-2610 EtherCAT to Modbus RTU Gateway, RS-232/422/485"

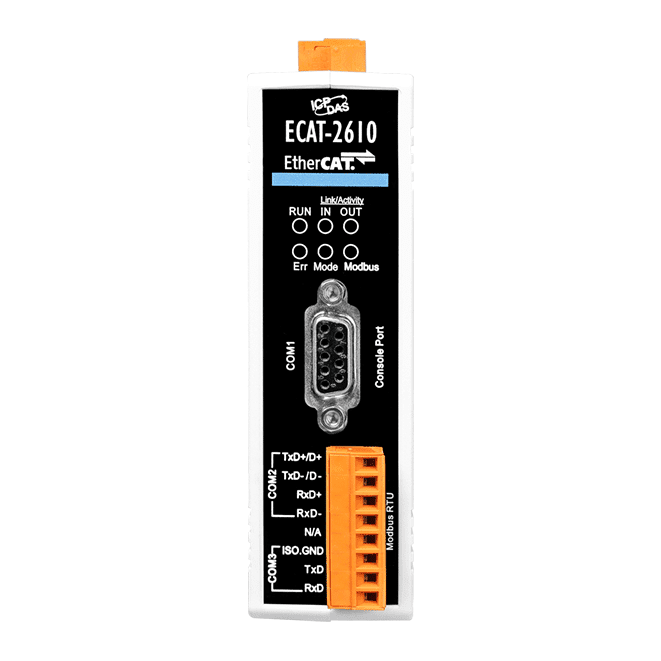

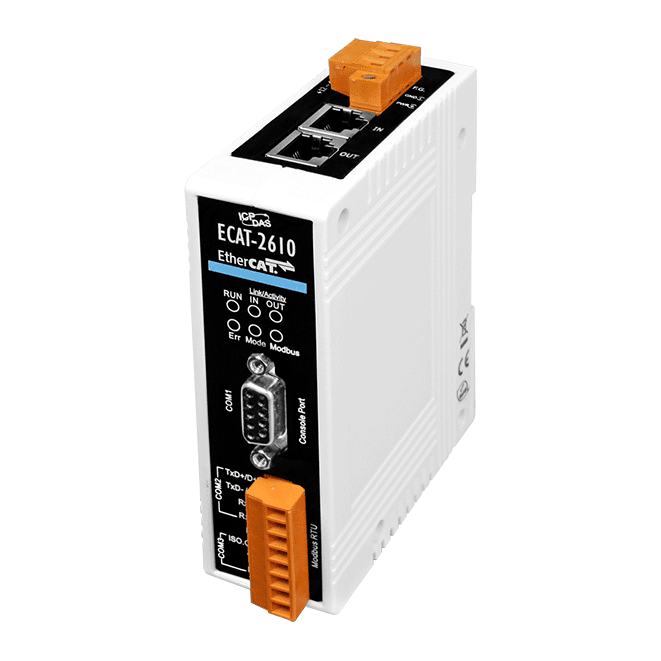

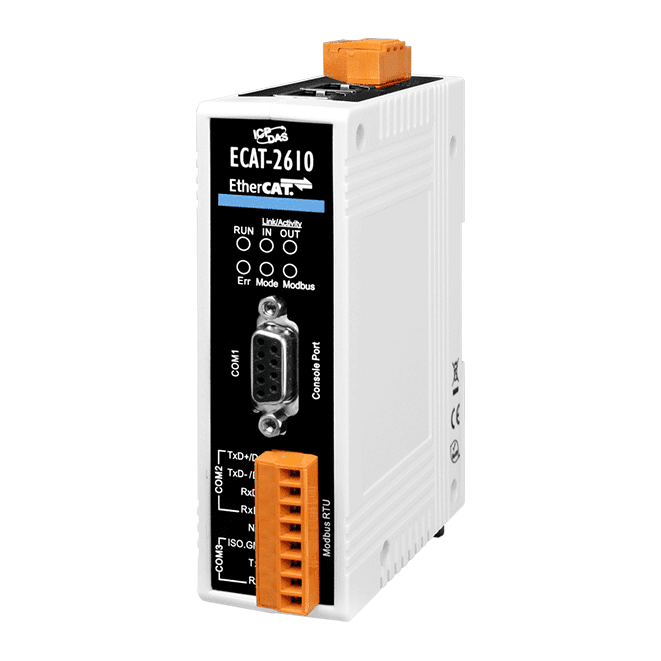

The ECAT-2610 CR brings serial RS-232/422/485 equipment into an EtherCAT control system without modifying the connected device. It presents as an EtherCAT SubDevice on the network side and as a Modbus RTU Main Device on the serial side, so the controller receives the serial data as ordinary I/O.

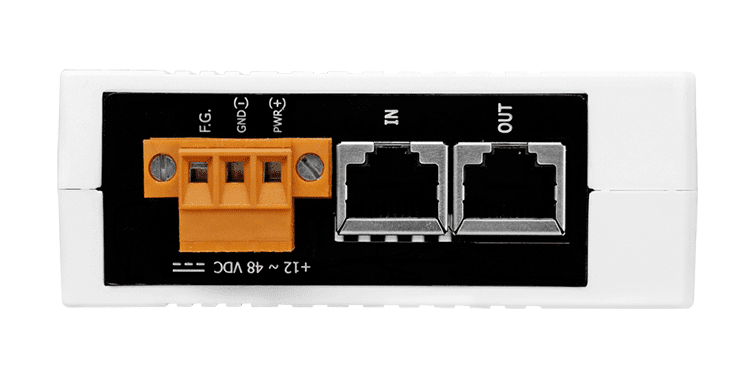

Protocol conversion takes place inside the gateway, so no PLC function blocks are required. It exchanges up to 256 WORD of input and 256 WORD of output data, and the serial port supports baud rates up to 115200 bps. Two RJ-45 EtherCAT connectors are provided, with a maximum distance of 100 m between stations over 100BASE-TX.
The ordering code includes a CA-0915 DB9 male to DB9 female cable, 1.5 m. The unit has a plastic housing for DIN-rail mounting, accepts +12 VDC to +48 VDC input and is rated for operation from -25 to +75 °C.
Applications
- Retrofitting older automation devices into modern EtherCAT communication structures
- Integrating serial RS-232/422/485 devices into EtherCAT control systems
| Product type: | Gateway |
|---|---|
| Interface: | RS-232/422/485 |
| Protocol: | EtherCAT, Modbus RTU |
| Ports: | 1 x RS-232/422/485, 2 x RJ-45 |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/422/485 |
| Protocol | Modbus RTU (Master) |
| EtherCAT | |
| Ports | RJ-45 x 2 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 10 ms |
| Distributed Clocks | N/A |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 99 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
