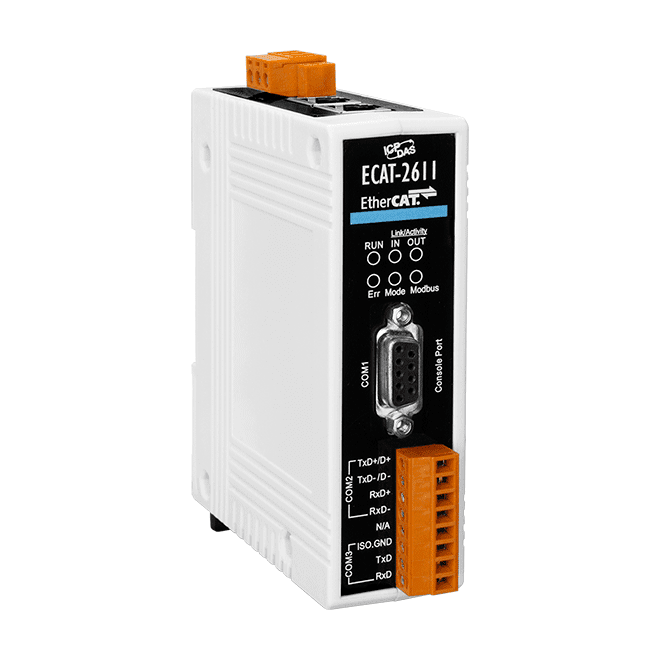

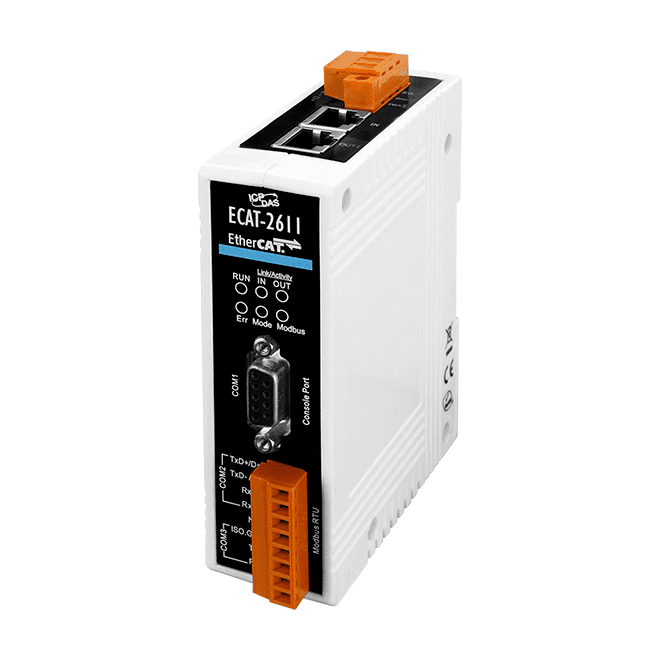

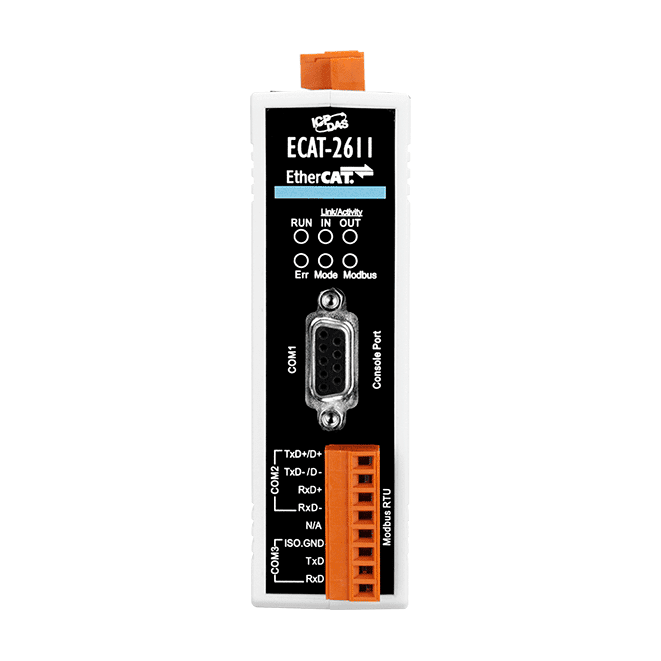

ECAT-2611 EtherCAT to Modbus RTU Protocol Gateway, RS-232/422/485
Protocol gateway that links an EtherCAT network with a Modbus RTU device over RS-232/422/485, exchanging I/O data without PLC function blocks. Includes CA-0915 cable.
- Performs complete serial protocol conversion between EtherCAT and Modbus RTU, with no PLC function blocks required
- Acts as a SubDevice on both networks and transfers I/O data between them
- Supports Modbus RTU (SubDevice) with function codes 03, 04, 06 and 16
- Serial port supports RS-232/422/485 at a maximum baud rate of 115200 bps
- Two RJ-45 EtherCAT connectors, 100 m maximum distance between stations (100BASE-TX)
- Supports a maximum of 256 WORD Input and 256 WORD Output Data
319,00 € pro Stück
| 1–9 Stück | 319,00 € | |
|---|---|---|
| 10–30 Stück | 309,00 € | −3 % |
| ab 31 Stück | 303,00 € | −5 % |
Produktinformationen "ECAT-2611 EtherCAT to Modbus RTU Protocol Gateway, RS-232/422/485"
The ECAT-2611 CR is a protocol converter gateway that connects EtherCAT and Modbus RTU networks. It operates as a SubDevice on both sides and passes I/O data between them, so an EtherCAT Main Device and a Modbus RTU Main Device can exchange data through its internal data exchange buffer.
It suits system integrators who need to bring older serial automation equipment into an EtherCAT architecture. The serial protocol conversion is handled in the module, so no PLC function blocks are required and the connected device needs no hardware or software changes.
This CR ordering code includes the CA-0915 DB9 male to DB9 female cable, 1.5 M, for connecting the serial port. Key figures include a 10 ms cycle time, up to 256 WORD input and 256 WORD output data, and serial communication up to 115200 bps.
Applications
- Retrofitting older Modbus RTU automation devices into EtherCAT communication structures
- Exchanging I/O data between an EtherCAT Main Device and a Modbus RTU Main Device
- Integrating serial Modbus RTU equipment into EtherCAT-based machine control systems
| Product type: | Protocol gateway |
|---|---|
| Interface: | EtherCAT, RS-232/422/485 |
| Protocol: | EtherCAT, Modbus RTU |
| Ports: | 2 x RJ-45 (EtherCAT), 1 x RS-232/422/485 |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/422/485 |
| Protocol | Modbus RTU (Salve) |
| EtherCAT | |

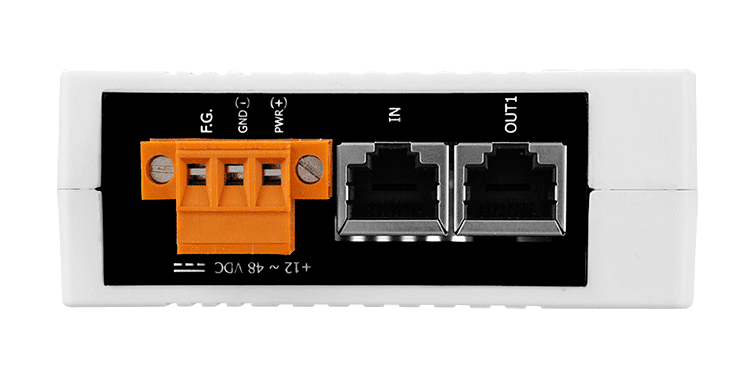

| Ports | RJ-45 x 2 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 10 ms |
| Distributed Clocks | N/A |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 99 (W x L x H) |

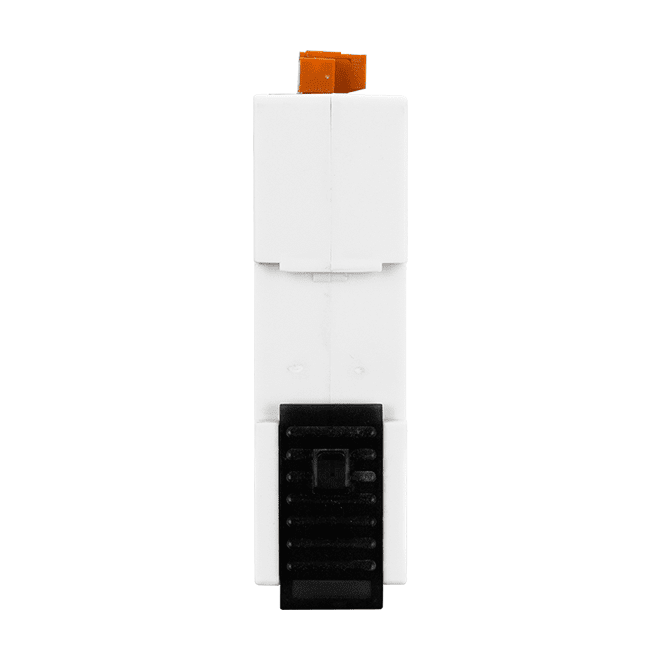

| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
