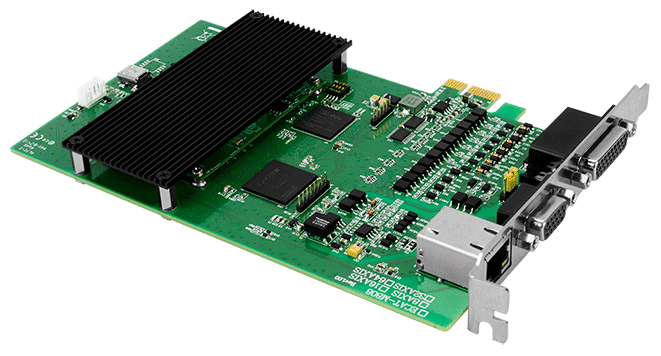

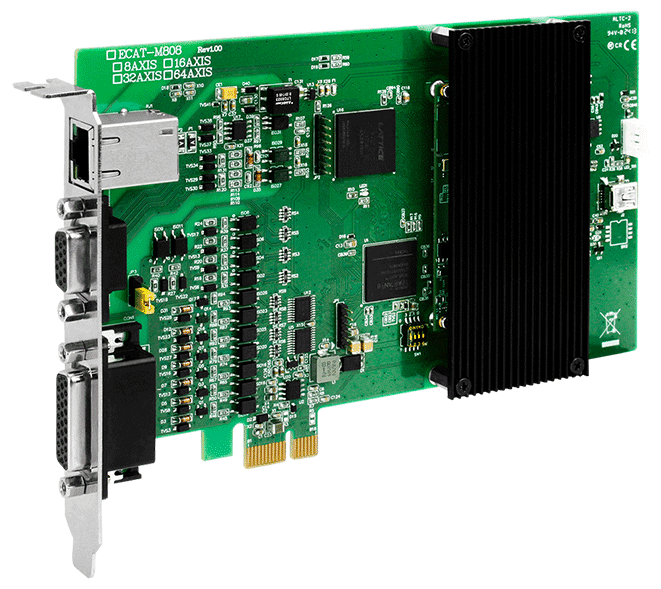

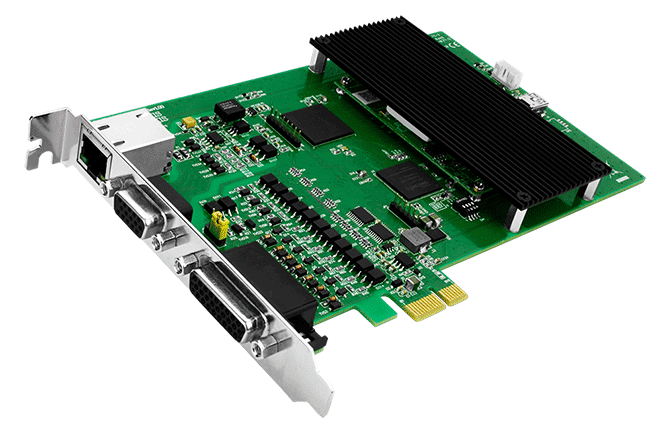

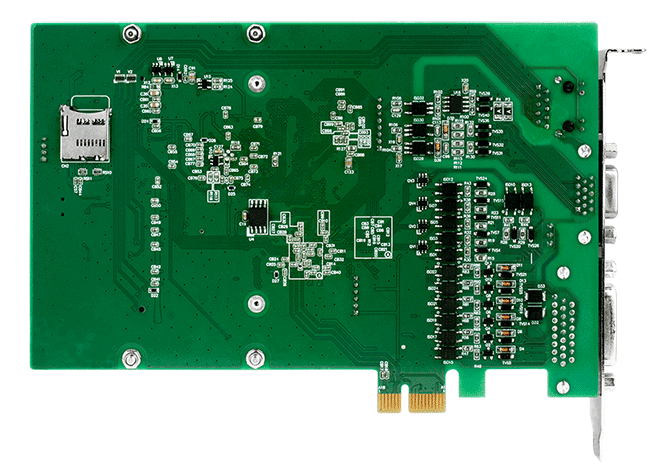

ECAT-M808-8AX EtherCAT MainDevice Board, PCI Express, 8-Axis Motion Control
8-axis PCI Express EtherCAT MainDevice board with 13 digital inputs, 13 digital outputs and 2-axis encoder inputs. Supplied without cable and daughter board.
- Up to 8-axis motion control with synchronised motion (E-GEAR, E-CAM)
- EtherCAT cycle time up to 0.5 ms
- Supports up to 512 slaves via a single RJ-45 EtherCAT port
- 13 onboard digital inputs and 13 onboard digital outputs
- 2 encoder interfaces with 32-bit resolution and 2-ch compare trigger output
- Second CPU with EtherCAT communication retention during OS or program crash
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "ECAT-M808-8AX EtherCAT MainDevice Board, PCI Express, 8-Axis Motion Control"
The ECAT-M808-8AX CR is a PCI Express EtherCAT MainDevice board for PC-based multi-axis motion and I/O control, supporting up to 8 axes and up to 512 slaves. Its onboard CPU handles the motion and I/O functions, which reduces the processing load on the host PC.
The board integrates 13 digital inputs, 13 digital outputs and 2 encoder interfaces with compare trigger outputs. Synchronised motion functions such as E-GEAR and E-CAM, virtual axes and multi-axis linear interpolation are included. A second CPU with EtherCAT communication retention keeps the network running and recipes uninterrupted if the OS or a program crashes.

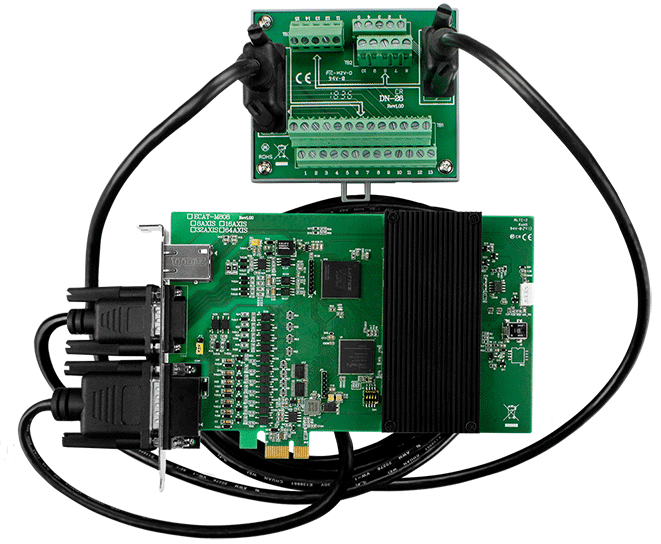

This ordering code is supplied without cable and daughter board. The -S variants of the series include a DN-26, a CA-1515M and a CA-2615M, so choose the standard CR code if these accessories are not required.
Applications
- Motion control
- I/O control
- Data acquisition system
| Product type: | EtherCAT MainDevice board |
|---|---|
| Interface: | PCI Express x1 |
| Protocol: | EtherCAT |
| Digital inputs: | 13 |
| Digital outputs: | 13 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | RJ45 x1 DB-26 (Female) DB-15 (Female) |
| Encoder Input | |
| No. of Axes | 2 |
| Type | Quadrant, CW/CCW, Pulse/Dir. |
| Resolution | 32-bit |
| Response Speed | 1 MHz |
| Compare Trigger Output | 2-ch |
| Digital Input | |
| Channels | 13 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19 V ~ + 24 V |
| OFF Voltage Level | +11 V Max. |
| Isolation | 3000 VDC |
| Digital Output | |
| Channels | 13 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +24 V |
| Load Current | 100 mA/ch |
| Isolation | 3000 Vrms |
| PC Bus | |
| Type | PCI Express x1 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | ECAT-M808-8AX Max. 8 ECAT-M808-16AX Max. 16 ECAT-M808-32AX Max. 32 ECAT-M808-64AX Max. 64 ECAT-M808-8AX/S Max. 8 ECAT-M808-16AX/S Max. 16 ECAT-M808-32AX/S Max. 32 ECAT-M808-64AX/S Max. 64 |
| No. of Nodes | Max. 512 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Mechanical | |
| Dimensions (mm) | 135 x 192 x 21.5 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 0 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
