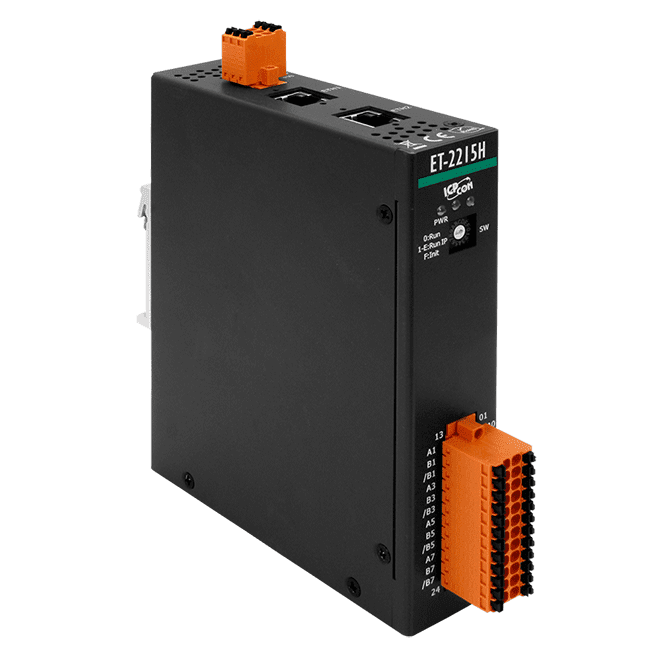

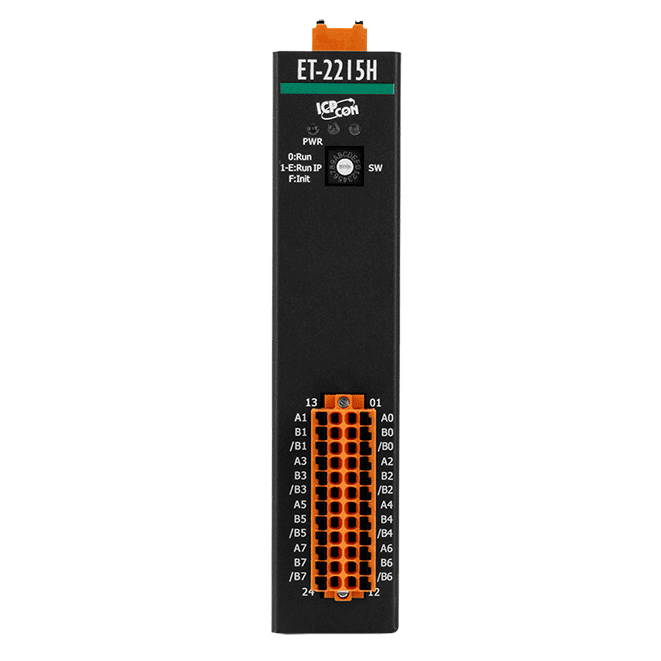

ET-2215H Ethernet I/O Module, 8-ch High-Speed RTD Input, 2-port Switch
Eight-channel RTD input module with 90 Hz fast-mode sampling per channel, Modbus TCP/UDP, MQTT and SNMP V2c support, and a built-in 2-port Ethernet switch for daisy-chain wiring.
- Eight RTD input channels supporting Pt100, Ni120, Cu50 and Cu100 sensors
- 90 Hz high-speed sampling per channel in Fast Mode
- 3-wire RTD lead resistance compensation and open wire detection
- Built-in 2-port 10/100 Base-Tx Ethernet switch with LAN bypass for daisy-chain wiring
- Modbus TCP/UDP, MQTT and SNMP V2c protocol support
- Built-in web server, password and IP filter access control, firmware update via Ethernet
501,00 € pro Stück
| 1–9 Stück | 501,00 € | |
|---|---|---|
| 10–30 Stück | 486,00 € | −3 % |
| ab 31 Stück | 476,00 € | −5 % |
Produktinformationen "ET-2215H Ethernet I/O Module, 8-ch High-Speed RTD Input, 2-port Switch"
The ET-2215H is an Ethernet remote I/O module for engineers who need fast, accurate temperature readings from RTD sensors. Each of its eight channels accepts Pt100, Ni120, Cu50 and Cu100 sensors and can be configured individually. In Fast Mode each channel samples at 90 Hz, while Normal Mode runs at 1.5 Hz per channel.
Three-wire lead resistance compensation keeps readings reliable when cable runs are long, and open wire detection flags a broken sensor connection on any channel. Accuracy is specified at ±0.05 % of FSR in Normal Mode and ±0.1 % of FSR in Fast Mode, both at 25 ℃, with a 16-bit resolution.
The built-in 2-port switch with LAN bypass allows modules to be daisy-chained, reducing the number of switches needed in a panel. A built-in web server handles configuration, access is protected by password and IP filter, and firmware can be updated over Ethernet. Galvanic isolation is rated at 1500 VDC on Ethernet and 3000 VDC on I/O, and the module is specified for EFT, ESD and surge immunity to IEC 61000-4-4, -4-2 and -4-5.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Analog inputs: | 8 |
| Ports: | 2 |
| Isolation: | 3000 VDC I/O, 1500 VDC Ethernet |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Input | |
| Channels | 8 |
| Sensor Type | Pt100, Ni120, Cu50, Cu100 |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.05 % of FSR (25℃) Fast Mode: ±0.1 % of FSR (25℃) |
| Sampling Rate | Normal Mode: 1.5 Hz (per channel) Fast Mode: 90 Hz (per channel) |
| Input Impedance | > 1 MΩ |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Ethernet | |

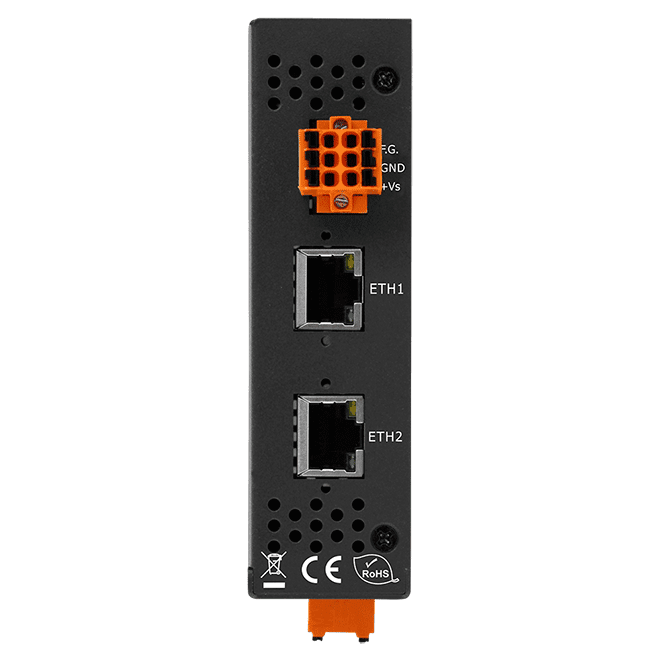

| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.7 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 31 x 159 x 137 (W x L x H) |

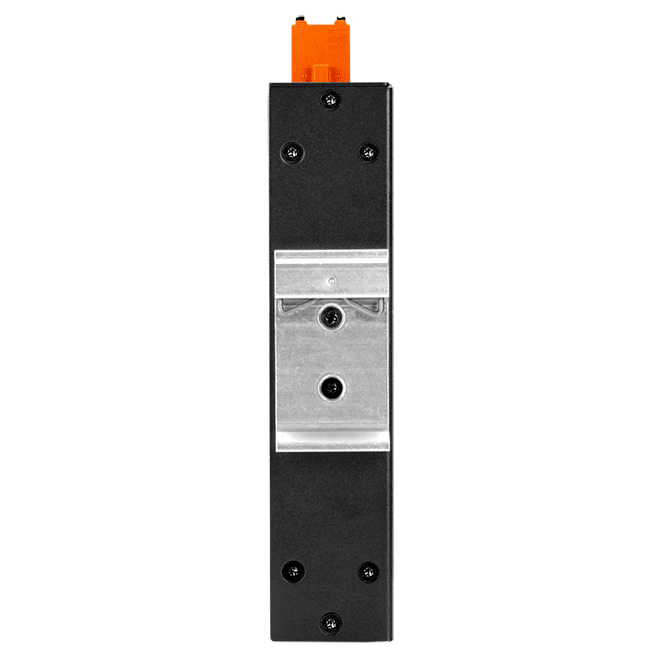

| Installation | DIN-Rail mounting / Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
