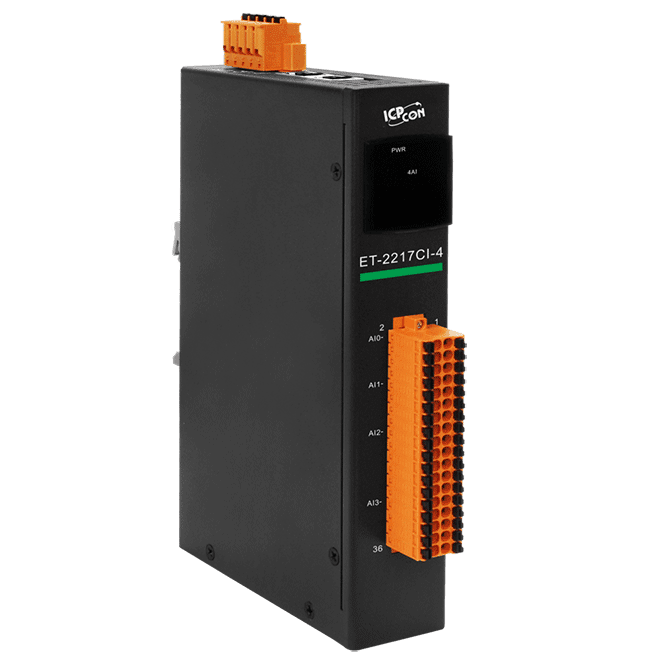

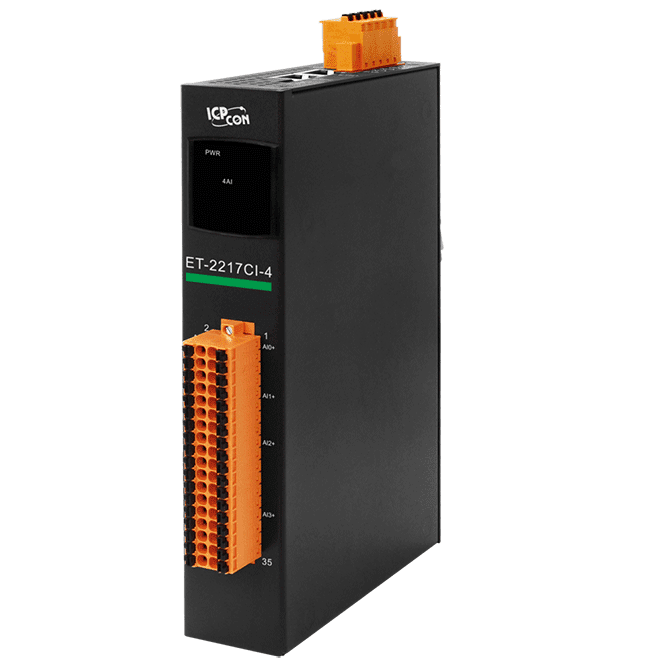

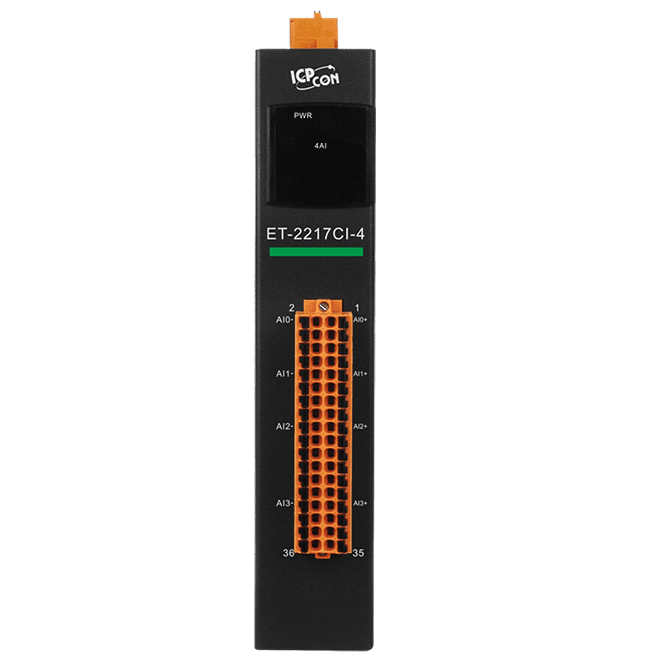

ET-2217CI-4 Ethernet I/O Module, 4-ch AI with Channel Isolation
Four-channel differential analog input Ethernet I/O module with a 2-port switch, Modbus TCP/UDP and MQTT support, and 3000 VDC channel-to-channel isolation.
- Four differential analog inputs, individually configurable as voltage or current
- Input ranges from ±1 V to ±10 V and 0 ~ 20 mA / 4 ~ 20 mA, 16-bit resolution
- Selectable sampling rate of 10 Hz or 200 Hz per channel
- Time-stamped records with a data logger of up to 480,000 records per channel
- Modbus TCP, Modbus UDP and MQTT support with built-in web server
- 2-port Ethernet switch with LAN bypass for daisy-chain wiring
419,00 € pro Stück
| 1–9 Stück | 419,00 € | |
|---|---|---|
| 10–30 Stück | 407,00 € | −3 % |
| ab 31 Stück | 398,00 € | −5 % |
Produktinformationen "ET-2217CI-4 Ethernet I/O Module, 4-ch AI with Channel Isolation"
The ET-2217CI-4 is a four-channel analog input module for Ethernet-based data acquisition. Each channel can be configured individually in software as a voltage or current input, which makes it suitable for mixed sensor signals on a single unit. Input ranges cover ±1 V, ±2.5 V, ±5 V, ±10 V, 0 ~ 20 mA and 4 ~ 20 mA, with 16-bit resolution.
Measurements are time-stamped and can be recorded locally. Sampling runs at 10 Hz per channel in normal mode or 200 Hz per channel in fast mode, and the data logger holds up to 480,000 records per channel. Data can be read out and exported to CSV with the LogReader tool. Communication uses Modbus TCP, Modbus UDP or MQTT, and the built-in web server handles configuration.
The built-in 2-port switch with LAN bypass supports daisy-chain wiring. Channel-to-channel isolation of 3000 VDC, together with EFT, ESD and surge protection, suits electrically noisy industrial environments. The module mounts on DIN-rail or wall, with an optional wall-mounting kit (ASO-0015).
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Analog inputs: | 4 |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| System | |
| Real Time Clock | Yes |
| Data Logger | Up to 480,000 records |
| Analog Input | |
| Channels | 4 Differential |
| Type | Voltage, Current (Software configurable ) |
| Range | Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V Current: 0 ~ 20mA, 4 ~ 20mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | Normal Mode: 10 Hz (per channel) Fast Mode: 200 Hz (per channel) |
| Input Impedance | Voltage: 20 MΩ Current: 135 Ω |
| Overvoltage Protection | +120 VDC |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Channel-to-Channel Isolation | 3000 VDC |
| Open Wire Detection | For 4 ~ 20 mA only |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.6 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 184 x 129 (W x L x H) |
| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
