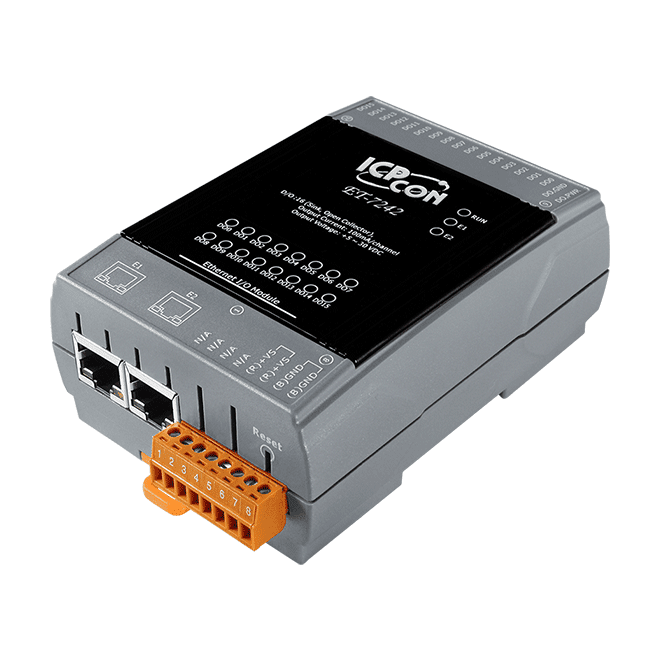

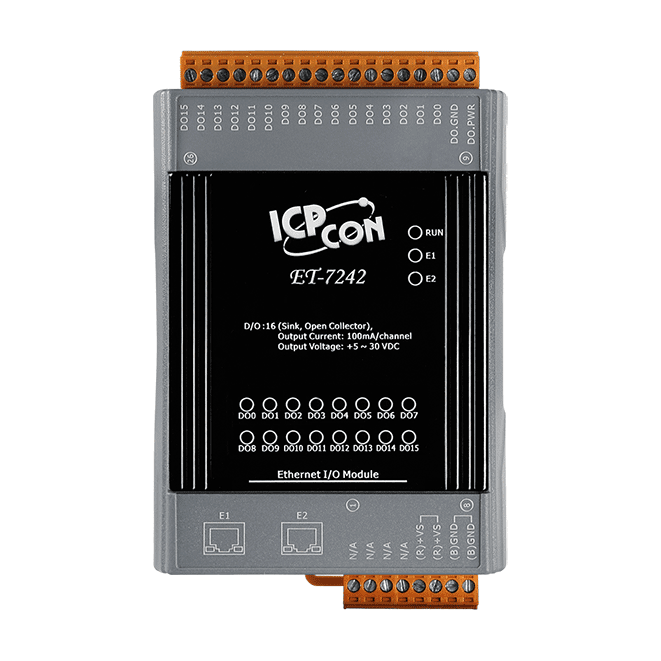

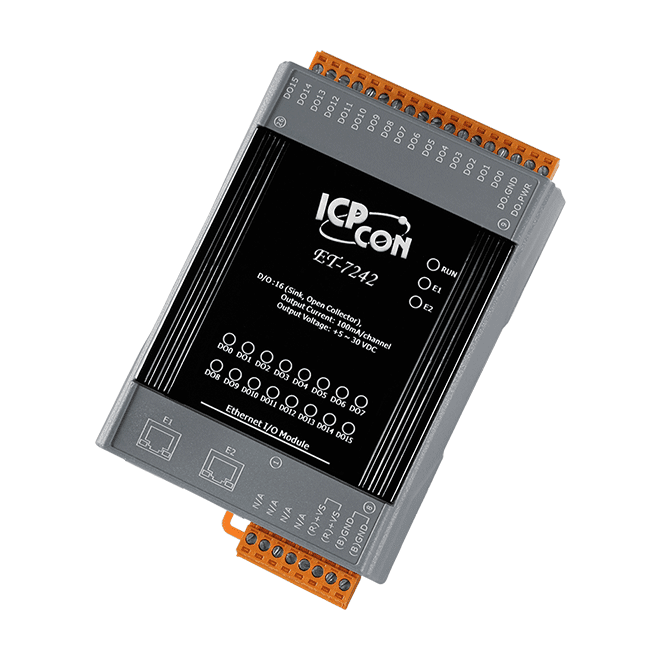

ET-7242 Ethernet I/O Module, 16-ch Sink-type Digital Output
16-channel sink-type digital output module with Modbus TCP and Modbus UDP over Ethernet, a 2-port switch with LAN bypass for daisy-chaining, and programmable power-on and safe values.
- 16 sink-type isolated open-collector digital outputs with 650 mA per channel at 25°C
- Modbus TCP and Modbus UDP support
- Built-in web server and web HMI
- 2-port Ethernet switch with LAN bypass for daisy-chain topology
- Programmable power-on value and safe value for each output
- Dual watchdog (module and communication) and I/O pair connection
232,00 € pro Stück
| 1–9 Stück | 232,00 € | |
|---|---|---|
| 10–30 Stück | 225,00 € | −3 % |
| ab 31 Stück | 220,00 € | −5 % |
Produktinformationen "ET-7242 Ethernet I/O Module, 16-ch Sink-type Digital Output"
ET-7242 CR is an Ethernet I/O module that drives 16 sink-type digital outputs and reports their status over Modbus TCP or Modbus UDP. Its built-in web server and web HMI allow configuration and monitoring from a standard browser, which suits engineers who want to commission and check I/O without dedicated software.
The built-in 2-port 10/100 Base-TX switch with LAN bypass lets the module sit in a daisy-chain topology, so cabling between I/O points can be simplified. Each output has a load voltage range of +3.5 ~ +50 VDC and up to 650 mA per channel at 25°C, and the outputs can directly drive an RM series relay module to switch inductive loads. Power-on and safe values are programmable, so outputs can be set to a defined state at start-up or on communication loss.
I/O is optically isolated to 3750 VDC for transient overvoltage protection, while Ethernet is isolated to 1500 VDC. Channels are not isolated from each other. The module is DIN-rail mounted and specified for an operating range of -25 ~ +75 °C.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital outputs: | 16 |
| Ports: | 2 |
| Isolation: | 3750 VDC (I/O), 1500 VDC (Ethernet) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3750 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | + 3.5 ~ + 50 VDC |
| Load Current | 650 mA/channel at 25°C Direct Drive Power Relay Module |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.3 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.2 W (max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
