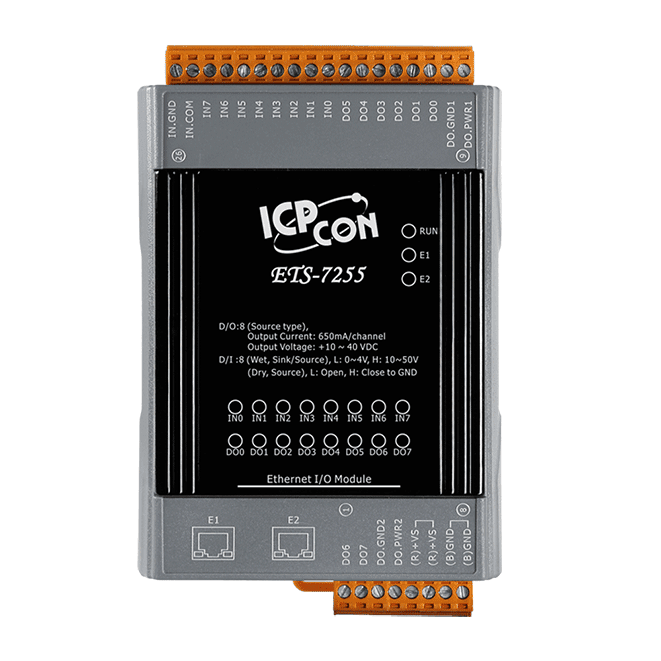

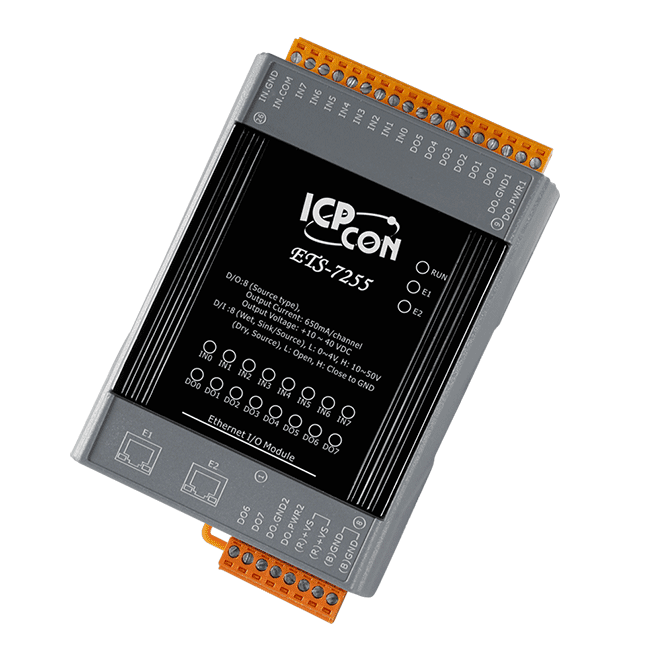

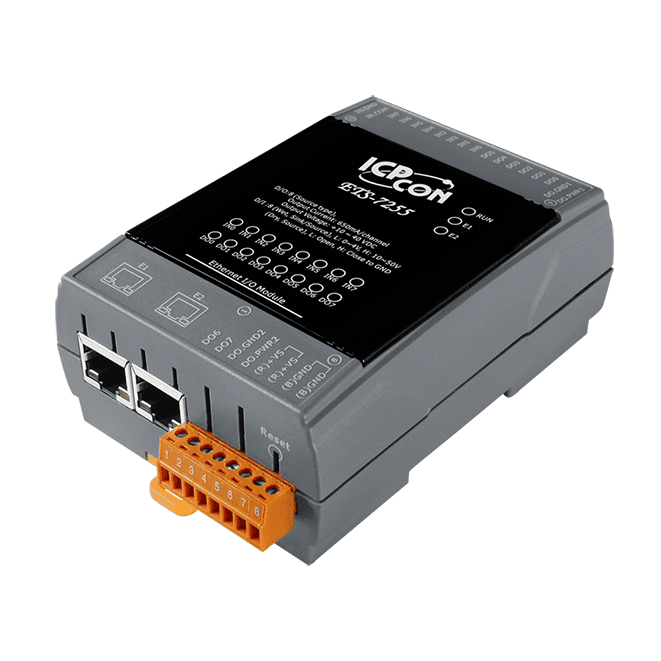

ETS-7255 Ethernet I/O Module with 2-port Switch, 8-ch DI and 8-ch DO
Ethernet I/O module with 8 dry/wet contact digital inputs, 8 source-type digital outputs and a 2-port switch for daisy-chain wiring. Supports Modbus TCP and MQTT.
- 8 digital inputs, dry or wet contact, each usable as a 32-bit counter with a 100 Hz frequency rating
- 8 source-type digital outputs, 650 mA per channel at 25°C, with programmable power-on and safe values
- 2-port 10/100 Base-TX switch for daisy-chain topology, with LAN bypass
- I/O isolation of 2500 VDC and Ethernet isolation of 1500 VDC
- Modbus TCP, Modbus TCP/TLS, MQTT (optional TLS), Rest API, CoAP and LwM2M support
- Dual watchdog (module and communication) and fast boot in under 5 seconds
300,00 € pro Stück
| 1–9 Stück | 300,00 € | |
|---|---|---|
| 10–30 Stück | 291,00 € | −3 % |
| ab 31 Stück | 285,00 € | −5 % |
Produktinformationen "ETS-7255 Ethernet I/O Module with 2-port Switch, 8-ch DI and 8-ch DO"
The ETS-7255 CR is an Ethernet I/O module for IIoT and automation projects that need to read switches, sensors and counters and drive loads over the network. It accepts dry or wet contact inputs and switches up to 650 mA per channel through source-type outputs, so it suits direct field wiring without a separate interface device.
Each of the eight inputs can operate as a 32-bit counter, and the power-on and safe values of the outputs are programmable, which helps define a known state if communication is lost. The built-in dual watchdog covers both module and communication faults. Isolation is rated at 2500 VDC for the I/O and 1500 VDC for the Ethernet side, although the input channels are not isolated from each other.
A two-port 10/100 Base-TX switch allows the unit to be daisy-chained along a line of devices. Control logic can be configured through the web interface using IF-THEN-ELSE rules, without writing code. The module can be powered from PoE (IEEE 802.3af, Class 2) or from a +12 to +48 VDC terminal block supply and mounts on a DIN rail.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 2 |
| PoE: | Yes (IEEE 802.3af, Class 2) |
| Isolation: | 2500 VDC (I/O), 1500 VDC (Ethernet) |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation • I/O channel monitoring and control • Timer operation • Schedule operation • Internal Register operation |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 to +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 to +40 VDC |
| Load Current | 650 mA/channel at 25°C |
| Overvoltage Protection | +47 VDC |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT, Rest API, CoAP, LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 4.4 W (max.) |
| Powered from PoE | Yes, IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 38 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 to +75°C |
| Storage Temperature | -30 to +80°C |
| Humidity | 10 to 90% RH, Non-condensing |
