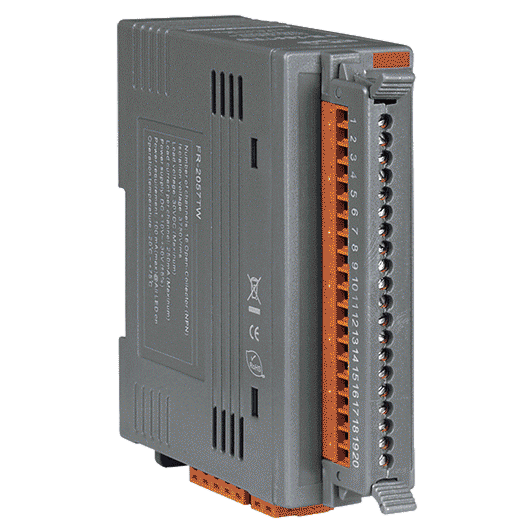

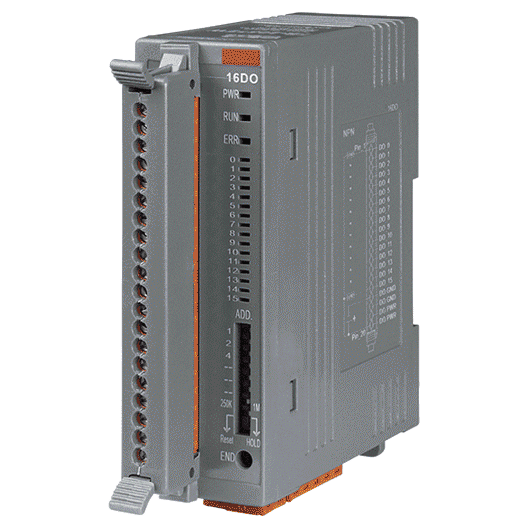

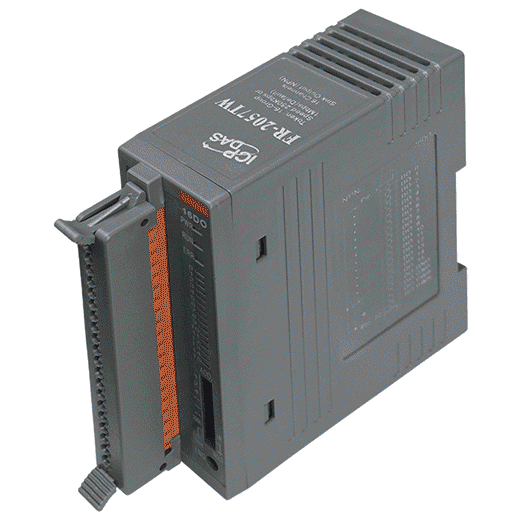

FR-2057TW FRnet I/O Module, 16-ch Isolated Sink DO, 30 VDC/250 mA
FRnet remote I/O module with 16 isolated NPN sink digital outputs, rated 30 VDC and 250 mA maximum, for DIN-rail mounting in distributed control systems.
- 16 isolated NPN sink digital outputs rated 30 VDC and 250 mA maximum
- FRnet interface with daisy-chain wiring and selectable 250 kbps or 1 Mbps transfer speed
- Maximum transfer distance of 400 m at 250 kbps or 100 m at 1 Mbps, cable dependent
- Fixed I/O scan time and synchronisation, with a cyclic time of 0.72 ms at 1 Mbps
- Broadcasting (1:n data transmission) and easy output duplication
- 3750 Vrms intra-module isolation
170,00 € pro Stück
| 1–9 Stück | 170,00 € | |
|---|---|---|
| 10–30 Stück | 165,00 € | −3 % |
| ab 31 Stück | 162,00 € | −5 % |
Produktinformationen "FR-2057TW FRnet I/O Module, 16-ch Isolated Sink DO, 30 VDC/250 mA"
The FR-2057TW CR adds 16 isolated, high-current digital outputs to an FRnet network. Each output is an NPN sink type, so it switches the load to ground when active, and the module is rated for loads up to 30 VDC and 250 mA maximum. It suits engineers who need to drive relays, indicators or other field loads from a PC, PAC or PLC over a simple two-wire bus.

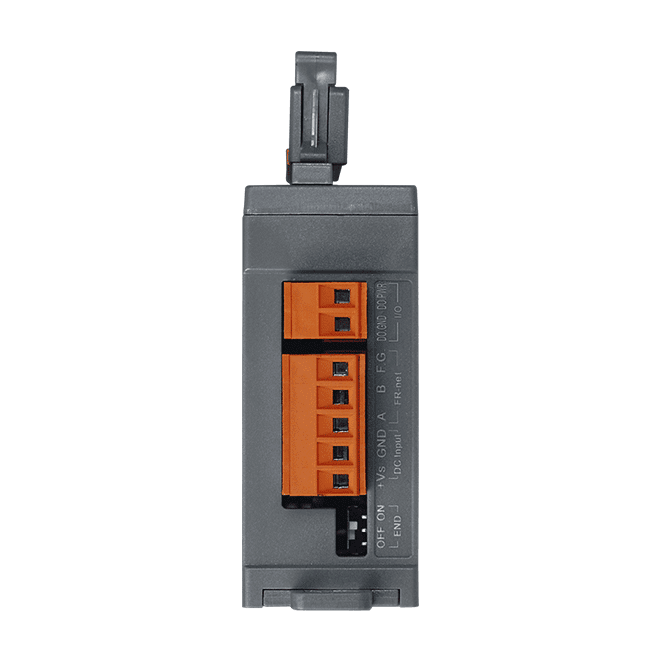

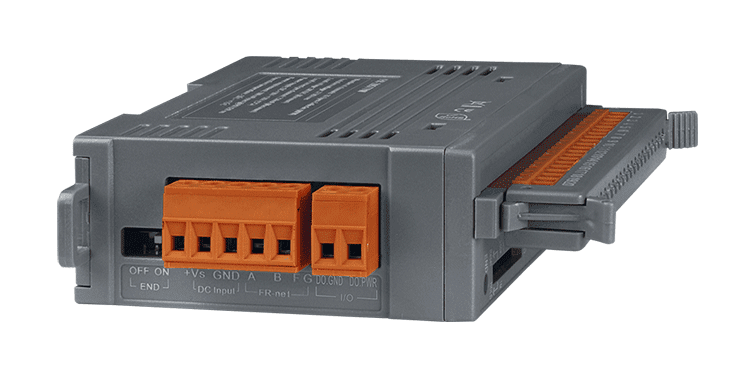

Modules are linked by daisy-chaining, which keeps wiring to a minimum. FRnet supports two transfer speeds, 250 kbps and 1 Mbps (default), with the maximum transfer distance depending on the chosen speed and cable type. Broadcasting from one controller to several modules and output duplication are supported, and the fixed I/O scan time and synchronisation mechanism help keep timing predictable across the network.
The module provides 3750 Vrms intra-module isolation and includes EFT, ESD and surge protection to IEC 61000-4-4, -4-2 and -4-5. Its plastic housing is designed for DIN-rail mounting, with a 10 to 30 VDC input and an operating range of -25 to +75 °C.
Applications
- Remote digital output control from PCs, PACs and PLCs over FRnet
- Switching relays, indicators and other field loads in distributed I/O systems
- Extending digital output points in daisy-chained FRnet networks
| Product type: | Digital output module |
|---|---|
| Interface: | FRnet |
| Digital outputs: | 16 |
| Isolation: | 3750 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten

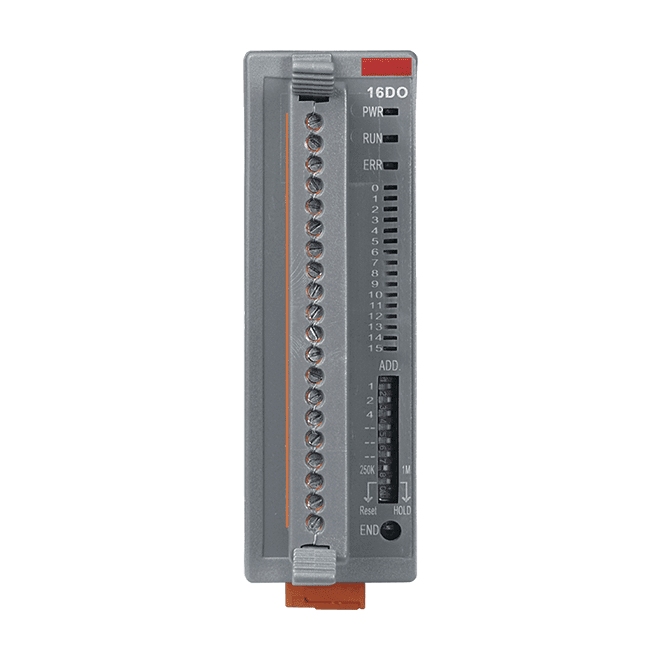

| Isolation | |
|---|---|
| Intra-module Isolation | 3750 Vrms |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |
| Status | Power, Communication Run, Communication Error, Terminal Resistor, Digital Output |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC Max. |
| Load Current | 250 mA Max. |
| Isolation | 3750 Vrms |
| FRnet | |
| Wire Cable | Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may be changed |
| Transfer Speed | 250 kbps and 1 Mbps (Default) |
| Transfer Distance | Max. 400 m for speed 250 kbps Max. 100 m for speed 1Mbps (Default) |
| Cyclic Time | 2.88 ms for speed 250 kbps 0.72 ms for speed 1 Mbps (Default) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Non-isolation) |
| Consumption | 2.4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 102 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
