GST25A24-DA1-DIN 25 W DIN-Rail Power Supply, 85~264 VAC to 24 VDC/1.04 A
25 W DIN-rail power supply accepting 85~264 VAC input and delivering 24 VDC at 1.04 A, with short circuit, overload and over voltage protection.
- Universal 85~264 VAC input with 47-63 Hz frequency range
- 24 VDC output, 25 W rated power, 1.04 A rated current
- Protections against short circuit, overload and over voltage
- Over voltage clamp implemented by Zener diode
- Fully enclosed plastic case for DIN-rail mounting
- Operating temperature -30 °C to +70 °C
66,00 € pro Stück
| 1–9 Stück | 66,00 € | |
|---|---|---|
| 10–30 Stück | 64,00 € | −3 % |
| ab 31 Stück | 63,00 € | −5 % |
Produktinformationen "GST25A24-DA1-DIN 25 W DIN-Rail Power Supply, 85~264 VAC to 24 VDC/1.04 A"

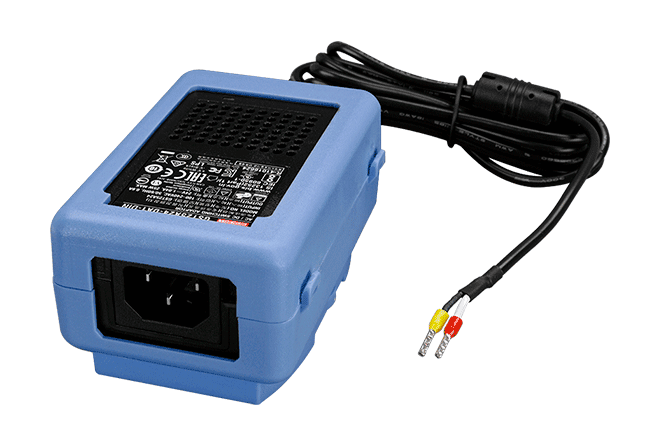

The GST25A24-DA1-DIN CR converts a universal 85~264 VAC input into a 24 VDC output rated at 25 W and 1.04 A. It is designed for DIN-rail mounting, so it can be fitted directly into a control cabinet alongside other automation equipment.
Short circuit, overload and over voltage protection are built in, with the over voltage function implemented as a Zener diode clamp. The fully enclosed plastic case and an operating range of -30 °C to +70 °C allow the unit to be used across a wide ambient temperature range.
The unit carries CE, UKCA, FCC, RoHS and WEEE markings. The specification table lists the safety, EMC and input and output details for the ordering code GST25A24-DA1-DIN CR.
Applications
- Supplying 24 VDC to DIN-rail mounted automation and control equipment in cabinets
| Product type: | Power supply |
|---|---|
| Power input: | 85~264 VAC |
| Operating temperature: | -30 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| Safety | |
|---|---|
| Standard | UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, BSMI CNS 14336-1 ,CCC GB4943.1, PSEJ62368-1,AS/NZS 60950.1, BIS 1513252, KC K60950·1,EAC TP TC 004 approved |
| EMC | |
| Standard | EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438 |
| Input | |
| Voltage Range | 85-264VAC |
| Frequency Range | 47-63Hz |
| AC Current (Typ.) | 0.6A/115VAC, 0.35A/230VAC |
| Inrush Current (Typ.) | Cold start 35A/115VAC, 65A/230VAC |
| Leakage Current | 0.75 mA/240 VAC |
| Output | |
| Ripple & Noise (Max.) | 150mVp-p |
| Setup, Rise Time | 1000ms, 30ms |
| Hold Up Time (Typ.) | 50ms/230VAC |
| DC Voltage | 24VDC |
| Rated Power | 25W |
| Rated Current | 1.04A |
| Efficiency | 88% typical |
| Protection | |
| Over Voltage | Yes (clamp by Zener diode). |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | (74 * 109 * 52)mm |
| Installation | DIN-Rail Mounting |
| Environment | |
| Temperature Coefficient | ±0.03%/°C (0~50°C) |
| Operating Temperature | -30 °C~ +70°C |
| Storage Temperature | -40 °C~ +85°C |
| Humidity | 20% ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
