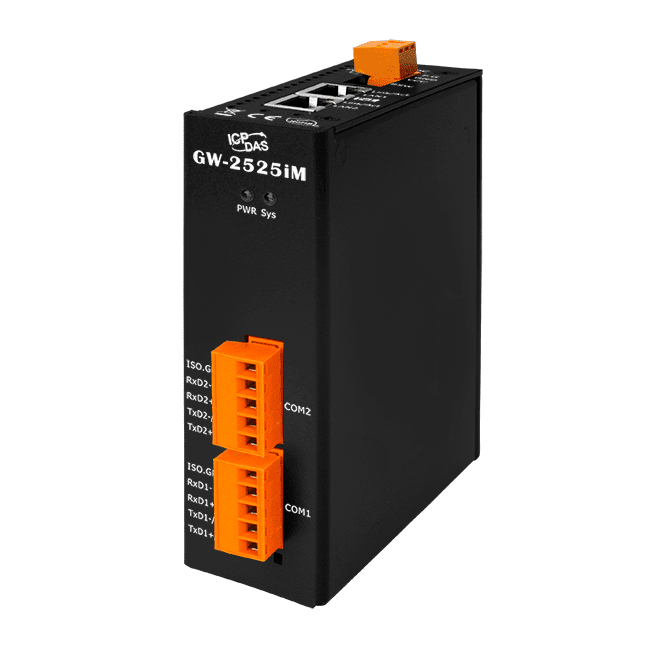

GW-2525iM Modbus TCP to RTU/ASCII Gateway, 2-port RS-422/485
Cybersecurity gateway that converts Modbus TCP to Modbus RTU/ASCII, with a dual-port Ethernet switch, LAN bypass and two isolated RS-422/485 serial ports for serial device networks.
- Modbus TCP to Modbus RTU/ASCII conversion with master and slave support on both sides
- Supports Modbus TCP/TLS, Modbus UDP and Modbus/TCP Security for secured communication
- Dual-port 10/100 Base-TX Ethernet switch for daisy chain topologies, with LAN bypass on power failure
- Two isolated RS-422/485 ports, up to 115200 bps, with a built-in 1 KΩ bias resistor
- Up to 32 TCP connections (masters) per serial port, with a read cache for faster Modbus TCP/UDP response
- Dual-stack IPv4 and IPv6 networking with static IP or DHCP configuration
441,00 € pro Stück
| 1–9 Stück | 441,00 € | |
|---|---|---|
| 10–30 Stück | 428,00 € | −3 % |
| ab 31 Stück | 419,00 € | −5 % |
Produktinformationen "GW-2525iM Modbus TCP to RTU/ASCII Gateway, 2-port RS-422/485"
GW-2525iM CR bridges Ethernet-based Modbus TCP clients and serial Modbus RTU or ASCII devices. It suits engineers who need to bring existing RS-422/485 equipment onto a TCP network without changing the field devices, while adding security features such as HTTPS, SNMPv3 and an IP address filter.
The built-in dual-port Ethernet switch lets units be wired in a daisy chain, reducing cabling and switch count. If power is lost, the LAN bypass engages so Ethernet communication along the chain is maintained. The module can be configured through a standard web browser, with user authentication and encrypted HTTPS access.

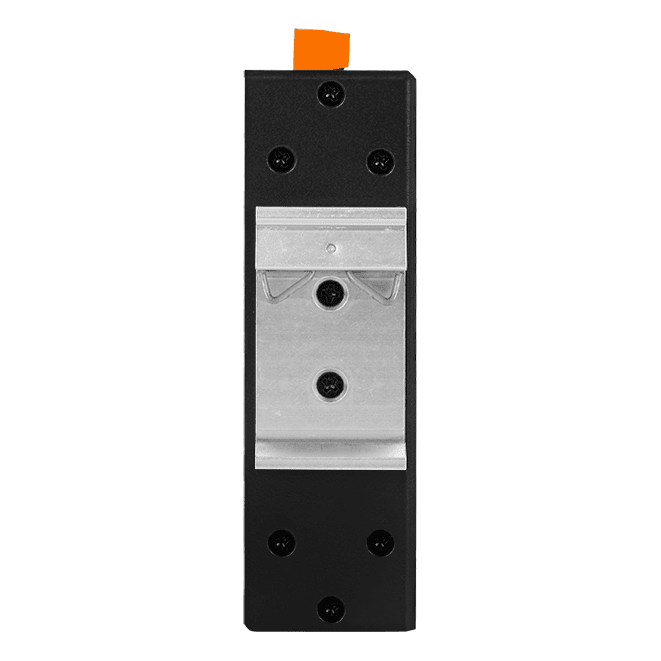

Both RS-422/485 ports are isolated, with 1000 VDC power isolation and 3000 VDC signal isolation. The unit accepts PoE (IEEE 802.3af, Class 2) or a +12 ~ 48 VDC terminal block supply and mounts on a DIN rail in a metal housing.
Applications
- Factory, building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-422/485 |
| Protocol: | Modbus TCP |
| Ports: | 2 Ethernet, 2 RS-422/485 |
| PoE: | Yes (802.3af, Class 2) |
| Isolation: | 1000 VDC power, 3000 VDC signal |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 32-bit MCU |
| Ethernet | |

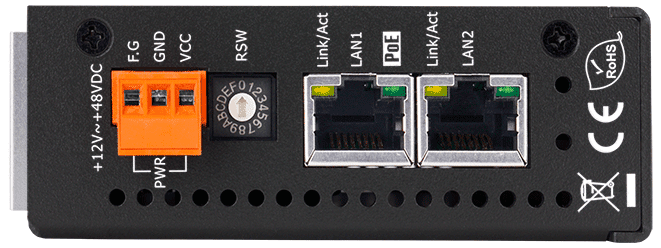

| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| PoE | Yes (IEEE 802.3af, Class 2) |
| LAN bypass | Yes |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, OPC UA, SNTP, HTTP/HTTPS, IPv4, IPv6 |
| COM Ports | |
| Ports | 2 x RS-422/485 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.22 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 106 mm x 33 mm x 119 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
