I-3591 M-Bus Repeater, Auto Baud Rate, 1200 m Distance Extension
DIN-rail M-Bus repeater that drives up to 100 slaves and extends bus distance by 1200 m at 2400 bps. Works directly after connection with no settings required.
- Supports the M-Bus physical layer
- Drives up to 100 M-Bus slaves
- Automatic baud rate detection, no settings required
- Extends M-Bus distance by 1200 m at 2400 bps
- M-Bus overloading alarm
- Overcurrent and short-circuit protection on the M-Bus port
213,00 € pro Stück
| 1–9 Stück | 213,00 € | |
|---|---|---|
| 10–30 Stück | 207,00 € | −3 % |
| ab 31 Stück | 202,00 € | −5 % |
Produktinformationen "I-3591 M-Bus Repeater, Auto Baud Rate, 1200 m Distance Extension"
The I-3591 M-Bus repeater strengthens the drive capability of an M-Bus line, extends its cable distance, and reshapes the signal waveform so that the M-Bus master can communicate reliably with a larger number of meters.
It suits engineers building metering networks for electricity, water and heat meters, where the two-wire M-Bus carries both power and communication. The unit needs no configuration: it detects the baud rate automatically once it is wired into the line. Its overcurrent, short-circuit and reverse polarity protection help it withstand common wiring faults.

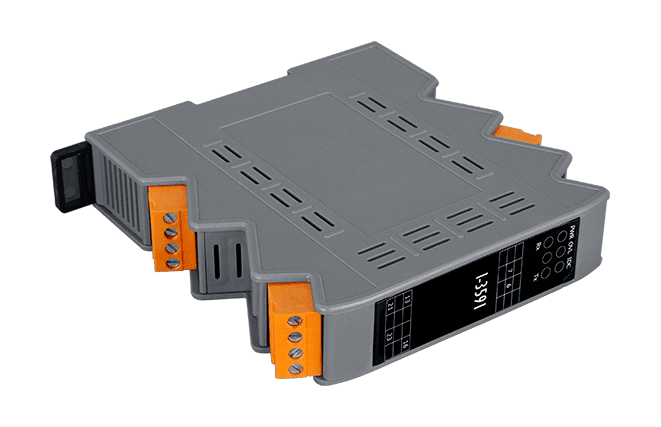

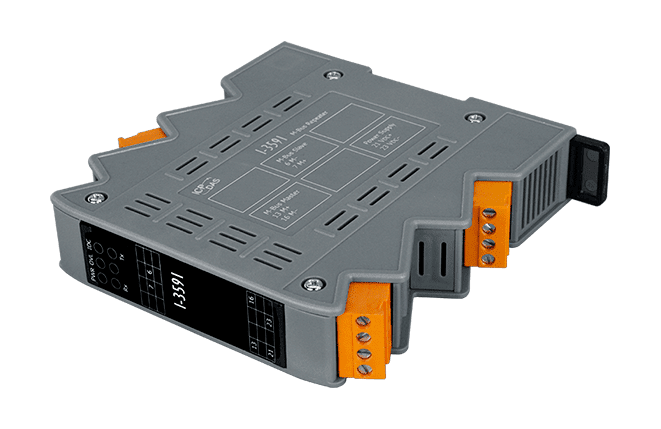

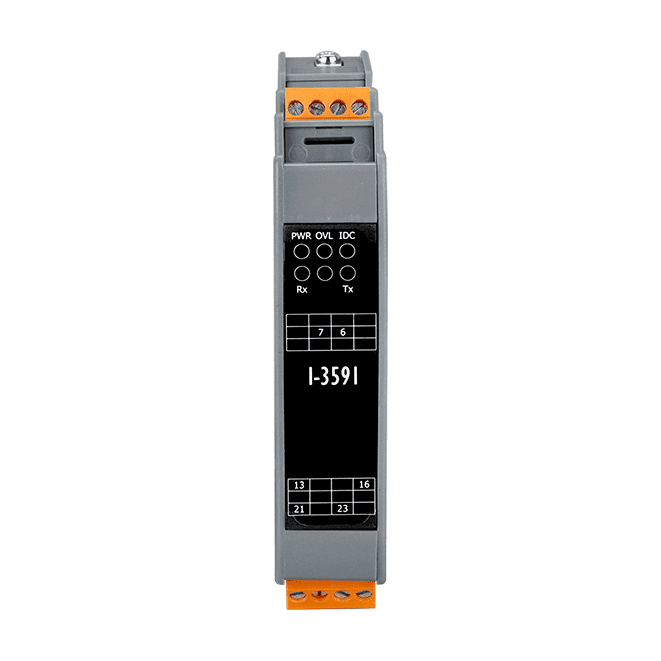

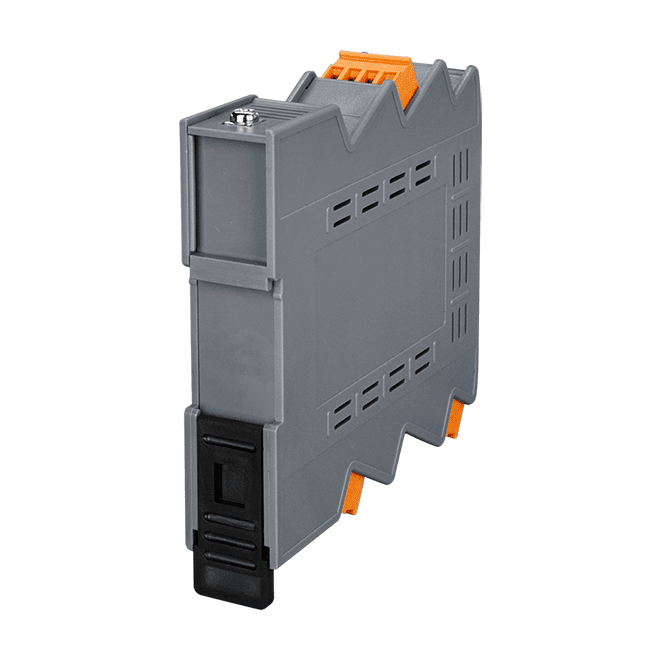

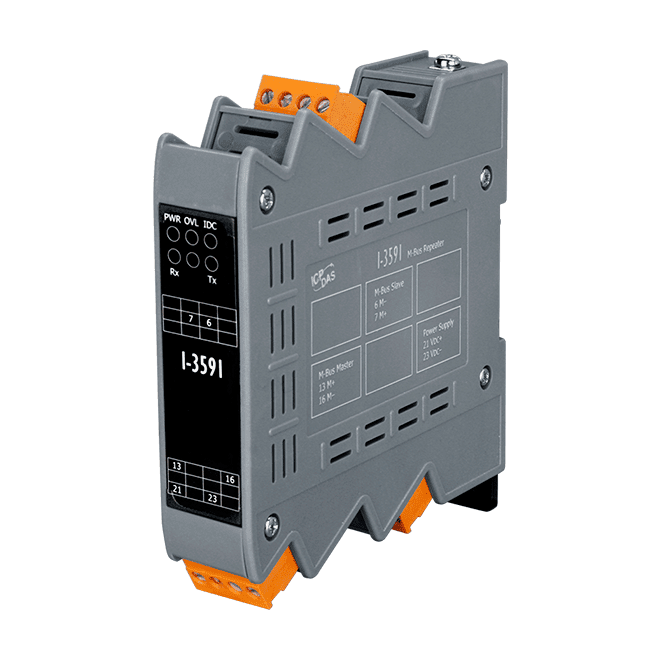

The I-3591 CR is the RoHS-labelled version of the repeater. It provides one master port and one slave port, with 3750 Vrms photo-coupler isolation, and mounts on a DIN rail. Power consumption is 1.6 W at 24 VDC with one slave device and 9.7 W with 100 slave devices.
Applications
- Electricity, water and heat meter networks
- M-Bus metering installations with large numbers of slave devices
- Long-distance M-Bus cable runs
| Product type: | M-Bus Repeater |
|---|---|
| Interface: | M-Bus |
| Ports: | 1 Master, 1 Slave |
| Isolation: | 3750 Vrms |
| Power input: | 24 VDC |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Technische Daten
| M-Bus | |
|---|---|
| Ports | 1 Master Port, 1 Slave Port |
| Baud Rate | Auto-adjust |
| Isolation | 3750 Vrms for photo-couple |
| Current Protection | short-circuit protection |
| Power | |
| Consumption | 1.6 W @ 24 VDC (with 1 slave device), 9.7 W @ 24 VDC (with 100 slave devices) |
| Mechanical | |
| Dimensions (mm) | 25 x 116 x 120 (W x H x D) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
