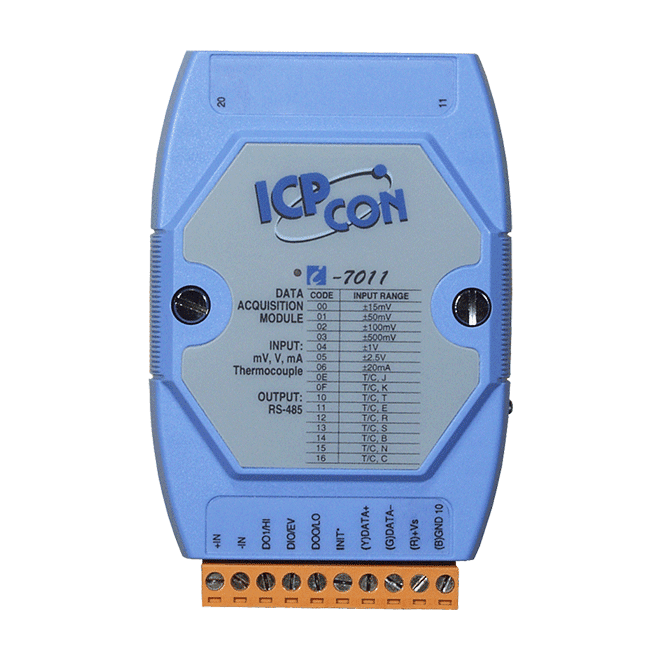

I-7011 1-ch Thermocouple Input Module, DCON Protocol, Blue Cover
RS-485 DCON remote I/O module with one analog input for voltage, current and thermocouple signals, 16-bit resolution, a 50 Hz event counter and two open-collector outputs.
- 1 differential analog input for voltage, current and thermocouple signals
- Thermocouple types J, K, T, E, R, S, B, N and C with open thermocouple detection
- 16-bit resolution and ±0.1% of FSR accuracy
- 1 digital input configurable as a 50 Hz event counter
- 2 open-collector sink outputs usable as high/low alarms with programmable power-on and safe values
- Built-in dual watchdog (module and communication, programmable)
206,00 € pro Stück
| 1–9 Stück | 206,00 € | |
|---|---|---|
| 10–30 Stück | 200,00 € | −3 % |
| ab 31 Stück | 196,00 € | −5 % |
Produktinformationen "I-7011 1-ch Thermocouple Input Module, DCON Protocol, Blue Cover"
The I-7011 CR is an RS-485 remote I/O module with one differential analog input that accepts voltage, current and thermocouple signals. This blue-cover (CR) ordering code uses the DCON protocol on its serial port, with a configurable baud rate from 1200 to 115200 bps and fixed data format (N, 8, 1).
The analog input supports thermocouple types J, K, T, E, R, S, B, N and C, with open thermocouple detection for fault finding. Voltage ranges run from ±15 mV to ±2.5 V, and the 16-bit resolution gives an accuracy of ±0.1% of FSR at a total sampling rate of 10 Hz. Current input (±20 mA) requires an optional external 125 Ω resistor.
The digital input can be used as a 50 Hz event counter, and the two open-collector sink outputs can act as high/low alarms, with programmable power-on and safe values. Intra-module isolation is rated at 3000 VDC, and the module is powered from +10 ~ +30 VDC with reverse polarity protection. It mounts on a DIN rail and is rated for operation from -25 ~ +75 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Digital inputs: | 1 |
| Digital outputs: | 2 |
| Analog inputs: | 1 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 1 Differential |
| Type | Voltage Current Thermocouple |
| Sensor Type | Thermocouple: J, K, T, E, R, S, B, N, C |
| Range | Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current: ±20 mA (requires an optional external 125 Ω resistor) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance | > 400 kΩ |
| Common Voltage Protection | ±5 VDC |
| Overvoltage Protection | ±5 VDC |
| Open Wire Detection | For Thermocouple Only |
| Digital Input/Counter | |
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Input Impedance | 3 kΩ |
| Overvoltage Protection | ±30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +30 VDC |
| Load Current | 30 mA/channel |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.9 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
