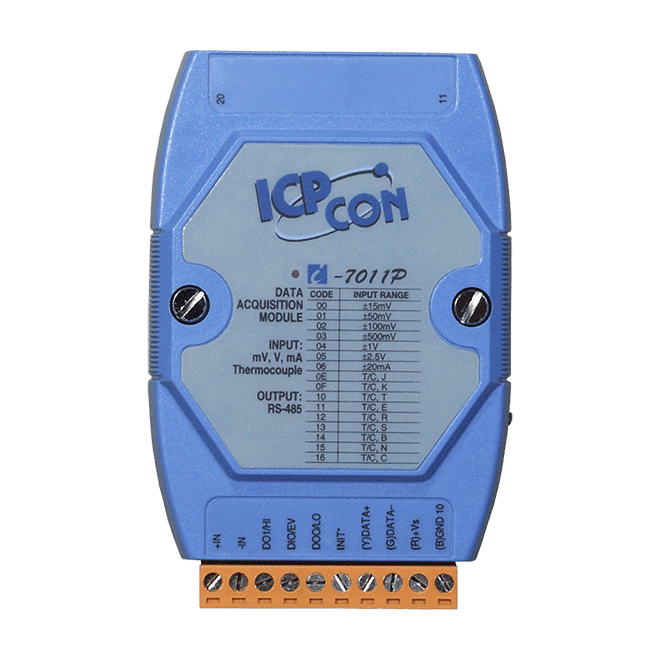

I-7011P Thermocouple Input Module, 1-ch Analog Input, DCON RS-485
1-channel thermocouple input module for the I-7011P CR, with voltage and current inputs, 16-bit resolution, open thermocouple detection and DCON over RS-485.
- Single differential analog input for voltage, current and thermocouple signals
- Thermocouple types J, K, T, E, R, S, B, N, C, L and M
- 16-bit resolution with ±0.1% of FSR accuracy
- Open thermocouple detection
- 50 Hz event counter on the digital input
- Two open-collector digital outputs usable as high/low alarm
211,00 € pro Stück
| 1–9 Stück | 211,00 € | |
|---|---|---|
| 10–30 Stück | 205,00 € | −3 % |
| ab 31 Stück | 201,00 € | −5 % |
Produktinformationen "I-7011P Thermocouple Input Module, 1-ch Analog Input, DCON RS-485"
The I-7011P CR is a 1-channel thermocouple input module for the I-7000 remote I/O series, communicating over RS-485 with the DCON protocol. Its analog input accepts voltage, current and thermocouple signals, and this variant adds support for thermocouple types L and M alongside the standard range, which makes it suitable for sensor types the base I-7011 does not cover.
Beyond the analog input, the module provides a digital input that works as a 50 Hz event counter and two open-collector digital outputs that can be configured as a high/low alarm. Open thermocouple detection helps identify broken sensor wiring.
Key electrical and mechanical details for system design:
- 3000 VDC intra-module isolation
- Power input of +10 ~ +30 VDC with reverse polarity protection
- DIN-rail mounting, 72 x 123 x 35 mm
- Operating temperature of -25 ~ +75 °C
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Digital inputs: | 1 |
| Digital outputs: | 2 |
| Analog inputs: | 1 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 1 Differential |
| Type | Voltage Current Thermocouple |
| Sensor Type | Thermocouple: J, K, T, E, R, S, B, N, C, L, M |
| Range | Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current: ±20 mA (requires an optional external 125 Ω resistor) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance | > 400 kΩ |
| Common Voltage Protection | ±5 VDC |
| Overvoltage Protection | ±5 VDC |
| Open Wire Detection | For Thermocouple Only |
| Digital Input/Counter | |
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Input Impedance | 3 kΩ |
| Overvoltage Protection | ±30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +30 VDC |
| Load Current | 30 mA/channel |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.9 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
