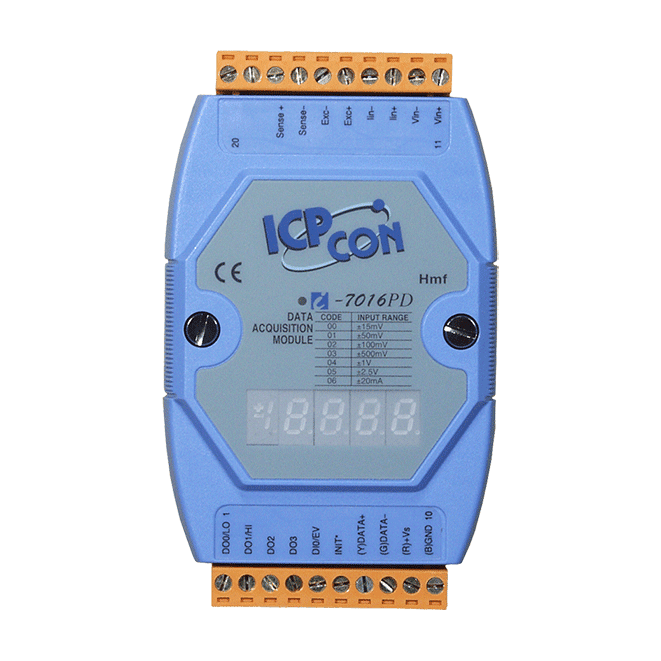

I-7016PD Strain Gauge Input Module, 1-ch 6-wire with LED Display
1-channel 6-wire full-bridge strain gauge input module with 16-bit resolution, linear mapping and LED display, for long-distance load cell measurement over RS-485 DCON.
- 1-ch full-bridge strain gauge input with 16-bit resolution and ±0.05% of FSR accuracy
- 6-wire connection with sense wires for long-distance measurement and voltage drop compensation
- Linear mapping function to convert measured data directly into weight or force values
- 5-digit 7-segment LED display for local readout
- Excitation voltage output 0 ~ +10 V, drive capacity up to 40 mA
- 1 x 50 Hz event counter digital input and 4 open-collector digital outputs with high/low alarm option
312,00 € pro Stück
| 1–9 Stück | 312,00 € | |
|---|---|---|
| 10–30 Stück | 302,00 € | −3 % |
| ab 31 Stück | 296,00 € | −5 % |
Produktinformationen "I-7016PD Strain Gauge Input Module, 1-ch 6-wire with LED Display"
The I-7016PD CR converts signals from full-bridge strain gauges and load cells into readings that can be scaled directly into weight or force units. A user-defined linear mapping table turns raw measurements into engineering values, so the host system receives usable data without extra conversion logic. The 6-wire connection adds sense wires that measure the excitation voltage at the sensor, which helps the module compensate for voltage drop along long cable runs.
This blue-cover 1-channel variant includes a 5-digit 7-segment LED display for local readout, and communicates over a single RS-485 port using the DCON protocol at 1200 ~ 115200 bps. It also provides an excitation voltage output of 0 ~ +10 V, one 50 Hz event counter digital input and four open-collector digital outputs that can be set for general use or for high/low alarms. Intra-module isolation is rated at 3000 VDC.
Choose this model over the 4-wire I-7016D or I-7016 when the sensor is installed far from the module, or when the measurement accuracy depends on stable excitation at the bridge. For short runs and cost-sensitive applications, the 2-channel 4-wire models in the series may be a better fit. The module mounts on a DIN rail and is rated for operation from -25 ~ +75 °C.
Applications
- Load cell and weighing systems
- Force measurement using strain gauges
- Long-distance sensor measurement in industrial environments
- High-precision strain gauge data acquisition
| Product type: | Strain gauge input module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Digital inputs: | 1 |
| Digital outputs: | 4 |
| Analog inputs: | 1 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
| Type | 5-Digit 7 Segment LED Display (Only for I-7016D, I-7016PD) |
| Isolation | |
| Intra-module Isolation | I-7016(D): 1500 VDC I-7016P(D): 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Digital Input/Counter | |
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 65535 (16-bit) |
| Frequency | 50 Hz |
| Input Impedance | 3 kΩ |
| Overvoltage Protection | ±30 VDC |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 30 mA/channel |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Strain Gauge, Load Cell Input | |
| Channels | I-7016(D): 2 I-7016P(D): 1 |
| Type | Full-Bridge Strain Gauge Voltage Current |
| Range | Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, and ±2.5 V Current: ±20 mA |
| Wiring | I-7016(D): 4-wire I-7016P(D): 6-wire |
| Accuracy | ±0.05% of FSR |
| Resolution | 16-bit |
| Sampling Rate | I-7016(D): 1-ch Mode: 10 Hz 2-ch Mode: 2 Hz (total) I-7016P(D): 10 Hz |
| Impedance | 20 MΩ |
| Long Distance Measurement | Yes, only for I-7016P(D) |
| Overvoltage Protection | ±5 VDC |
| Excitation Voltage Output | |
| Channels | 1 |
| Range | 0 ~ +10 V |
| Resolution | 16-bit |
| Accuracy | ±0.05% of FSR |
| Max. Load Current | 40 mA |
| Power on Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | I-7016: 2.4 W I-7016D: 3.0 W I-7016P(D): 1.3 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
