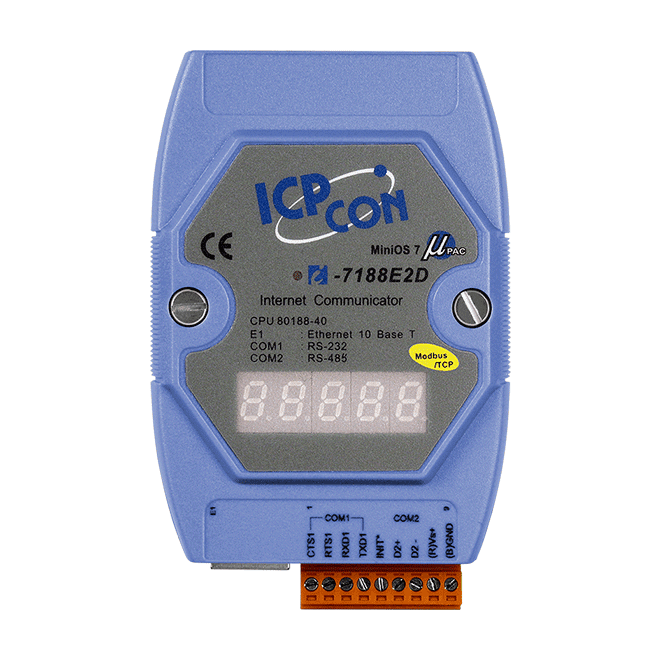

I-7188E2D-MTCP Palm-sized Modbus TCP/RTU Gateway, RS-232/RS-485 to Ethernet
Programmable serial-to-Ethernet device server that links RS-232/RS-485 devices to an Ethernet network and works as a Modbus TCP to RTU gateway for SCADA and HMI systems.
- Modbus TCP to RTU gateway for SCADA and HMI communication over serial devices
- One RS-232 and one RS-485 port, with serial rates up to 115200 bps
- 10BASE-T Ethernet port (NE2000 compatible) on RJ-45
- Built-in MiniOS7 with C-language software development tool kits and Modbus libraries
- 80188 40 MHz CPU, 384 KB SRAM, 512 KB flash and 2 KB EEPROM
- Five-digit 7-segment LED display, programmable LED indicator and watchdog timer
204,00 € pro Stück
| 1–9 Stück | 204,00 € | |
|---|---|---|
| 10–30 Stück | 198,00 € | −3 % |
| ab 31 Stück | 194,00 € | −5 % |
Produktinformationen "I-7188E2D-MTCP Palm-sized Modbus TCP/RTU Gateway, RS-232/RS-485 to Ethernet"
The I-7188E2D-MTCP CR is a palm-sized programmable device server that brings serial equipment onto Ethernet. It provides one RS-232 and one RS-485 port on the serial side and a 10BASE-T RJ-45 connection on the network side, so existing field devices can be reached over an Ethernet network without replacing them.
Beyond simple serial-to-Ethernet bridging, the unit operates as a Modbus TCP to RTU gateway, allowing SCADA and HMI software that speaks Modbus TCP to read and write devices on the serial bus. ICP DAS supplies XServer and Modbus libraries, along with C-language development tools, so the behaviour of the unit can be customised for the application. The built-in MiniOS7 runs the programme.
The CR ordering variant is supplied with a blue cover and carries an 80188 40 MHz CPU, 384 KB SRAM, 512 KB flash and 2 KB EEPROM. A five-digit 7-segment LED display, a programmable LED indicator and a watchdog timer support on-site status checking and unattended operation. It mounts on a DIN rail and accepts a +10 to 30 VDC supply.
Applications
- Connecting serial RS-232/RS-485 devices to Ethernet networks
- Providing Modbus TCP access to Modbus RTU devices for SCADA and HMI systems
- Integrating serial devices with SCADA packages such as Indusoft, DasyLab and iFix
| Product type: | Programmable Modbus gateway |
|---|---|
| Interface: | 10BASE-T Ethernet, RS-232, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 3 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80188, 40 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 384 KB |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| Ethernet | |
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 112 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
