I-7188E3 Programmable Ethernet to 3x Serial Converter, RS-232/422/485
Programmable Ethernet to serial converter with one RS-232, one RS-422 and one RS-485 port, plus 4 digital inputs and 4 open-collector outputs, for Virtual COM or raw TCP links.
- One RS-232, one RS-422 and one RS-485 serial port for linking existing serial devices to Ethernet
- Virtual COM operation via VxComm driver, or raw TCP connection
- VxComm driver supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016
- Programmable with built-in MiniOS7 and Xserver structure
- 4 digital inputs (wet or dry contact) and 4 open-collector digital outputs
- Serial speeds up to 115200 bps with even, odd or no parity and 7 or 8 data bits
266,00 € pro Stück
| 1–9 Stück | 266,00 € | |
|---|---|---|
| 10–30 Stück | 258,00 € | −3 % |
| ab 31 Stück | 253,00 € | −5 % |
Produktinformationen "I-7188E3 Programmable Ethernet to 3x Serial Converter, RS-232/422/485"

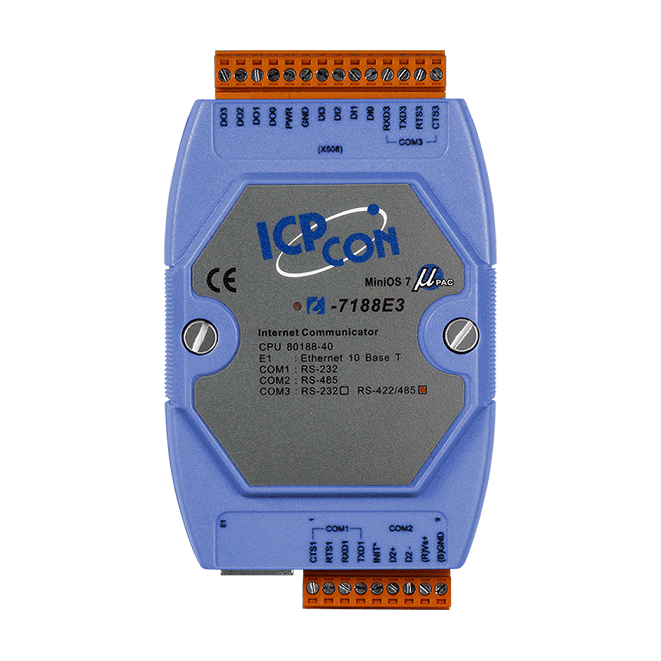

The I-7188E3 CR is a programmable device server that brings an RS-232, RS-422 or RS-485 serial device onto an Ethernet network. Its built-in COM ports can be presented to a Windows host as standard virtual COM ports using the VxComm driver, or accessed directly over raw TCP, so existing serial software can often be connected without rewriting it.
Built around an 80188 CPU at 40 MHz and the MiniOS7 operating system, the unit can run custom Xserver-based applications on the device itself. It also includes four digital inputs that accept wet or dry contacts and four open-collector digital outputs, which can handle up to 30 VDC and 100 mA per the source data.
The housing is palm-sized and includes a watchdog timer, reverse polarity protection on the 10 to 30 VDC power input, and a removable terminal block for wiring. The rated operating range is -25 °C to +75 °C, making it suitable for factory, building and home automation installations.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-422, RS-485 |
| Protocol: | raw TCP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 3 serial |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Digital Input | |
| Channels | 4 |
| Type | Wet Contact, Dry Contact |
| Sink/Source (NPN/PNP) | Wet:Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Load Voltage | +30 VDC Max. |
| Load Current | 100 mA |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-422 (TXD+, TXD-, RXD+, RXD-) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Humidity | 5 to 95 %, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
